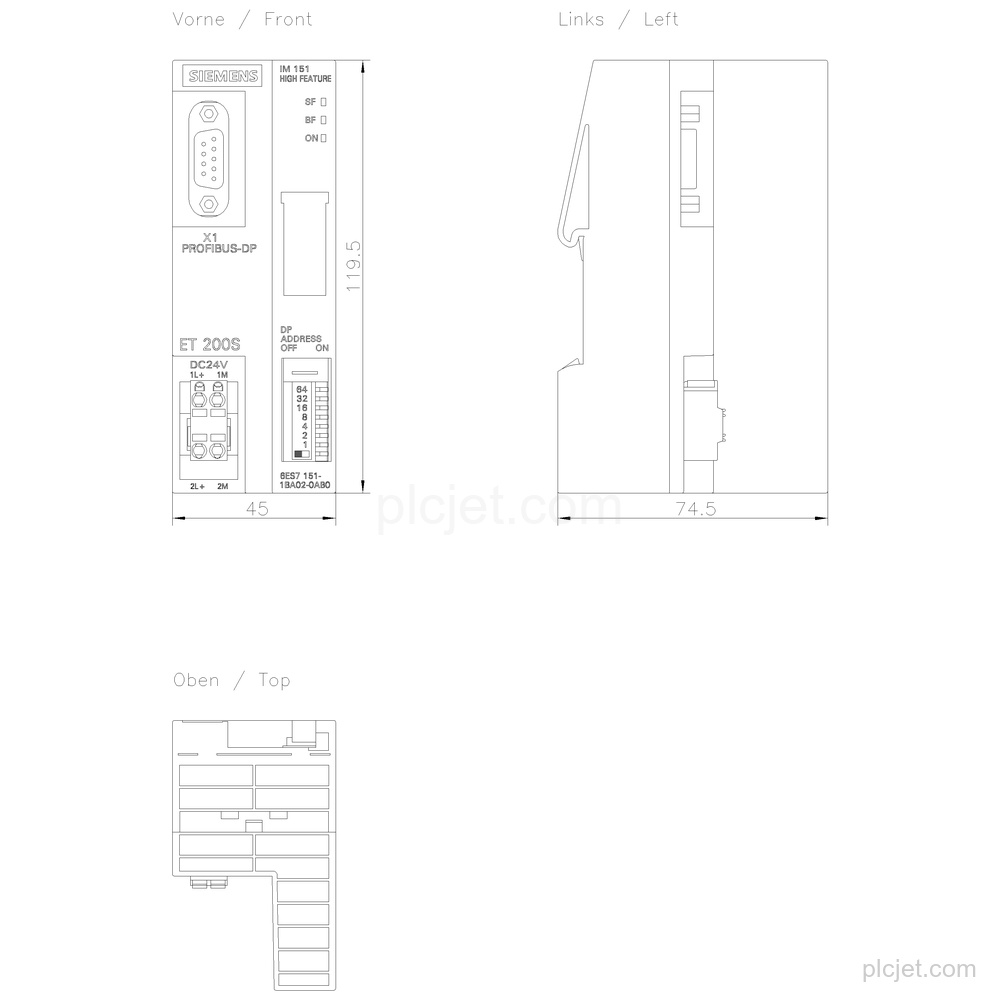

Product Overview
Technical Summary
| Product type | IM 151-1 HF |
|---|---|
| Communication protocol | PROFIBUS DP |
| Maximum transmission rate | 12 Mbit/s |
| Interface | RS 485 |
| Input addressing volume | 244 byte |
| Output addressing volume | 244 byte |
| Connected modules | Maximum 63 |
| Isochronous mode | Yes |
| Input current from supply voltage 1L+, max. | 200 mA |
| Power loss, typ. | 3.3 W |
Key Features

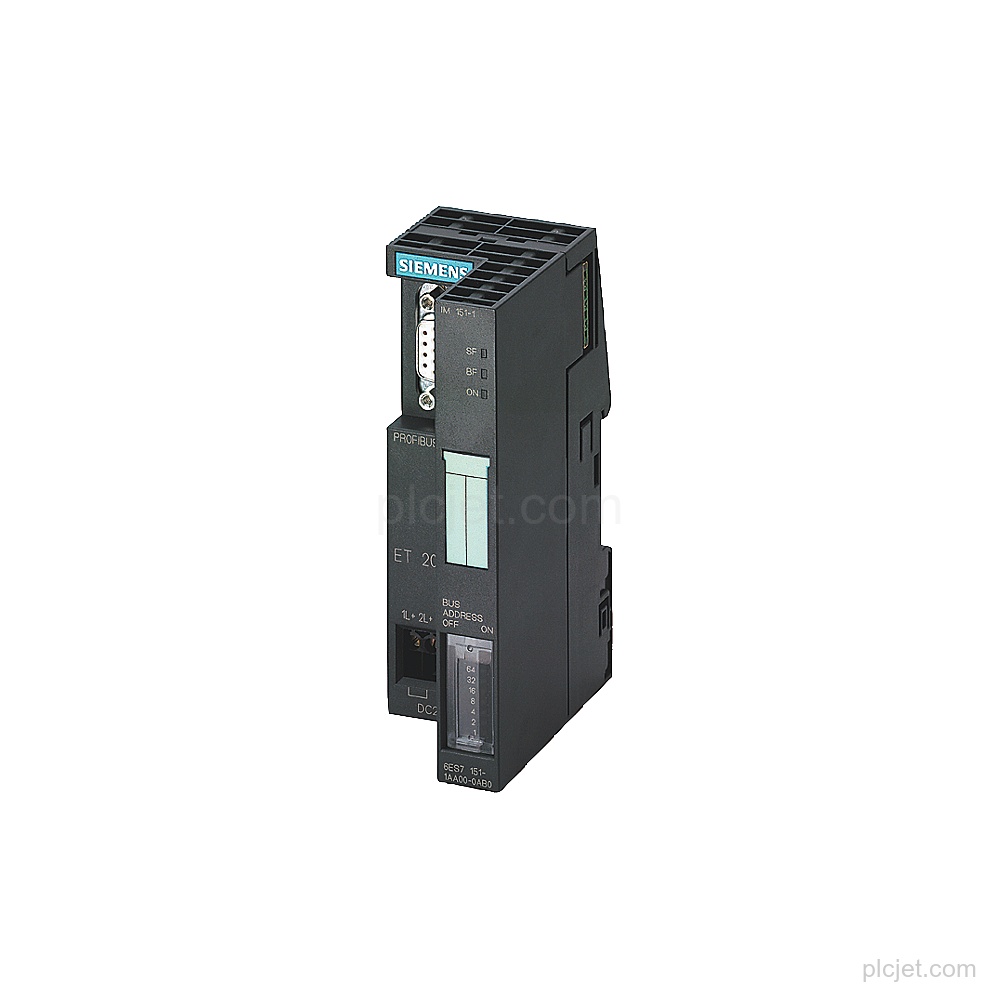

Product type designation: IM 151-1 HF for SIMATIC DP and ET200S.
Supports PROFIBUS DP through an RS 485 interface at a maximum transmission rate of 12 Mbit/s; PROFINET IO is not supported.
Provides 244 byte for inputs and 244 byte for outputs.
Up to 63 modules can be connected.
Isochronous mode, SYNC capability, FREEZE capability and direct data exchange are supported.
Product cancellation.
Frequently Asked Questions
What is the exact Siemens line item?
The exact product is 6ES7151-1BA02-0AB0, with product type designation IM 151-1 HF.
Which communication interface and protocol does it use?
It uses an RS 485 interface and supports PROFIBUS DP at a maximum transmission rate of 12 Mbit/s. PROFINET IO is not supported.
What addressing volume is available?
The addressing volume is 244 byte for inputs and 244 byte for outputs.
How many modules can be connected?
A maximum of 63 modules can be connected.
