Product Overview
Technical Summary
| Product type designation | IM 151-3 PN ST |
|---|---|
| Transmission rate, max. | 100 Mbit/s |
| Number of ports | 2 |
| Interface type | RJ 45 (Ethernet) |
| Inputs | 256 byte |
| Outputs | 256 byte |
| Input current, max. | 200 mA from supply voltage 1L+ |
| Power loss, typ. | 3.3 W |
| Configuration control | via dataset: Yes |
| Supported protocol | PROFINET IO: Yes |
Key Features

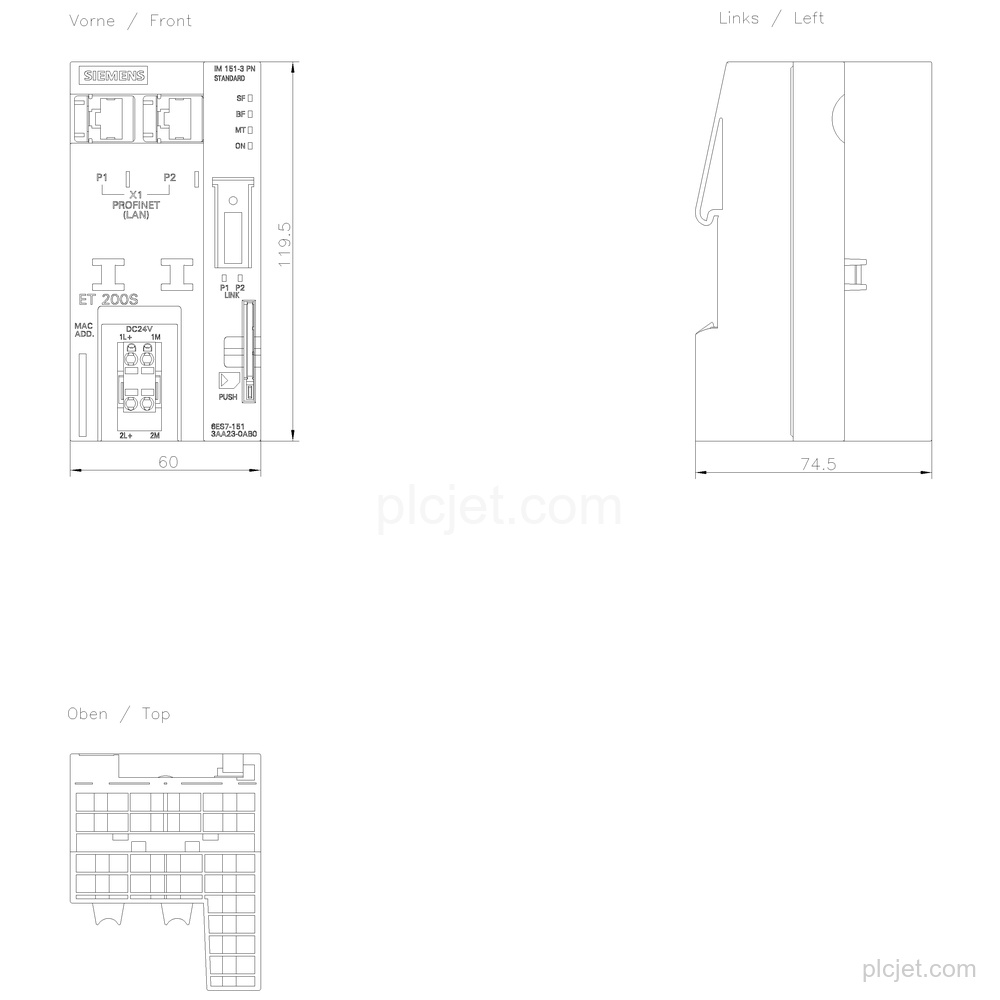

IM 151-3 PN ST interface module for ET 200S.
Up to 63 power, electronic, or motor starter modules can be connected up to 2 m width.
2 RJ45 bus connections with an included termination module; transmission rate up to 100 Mbit/s.
Addressing volume: 256 byte inputs and 256 byte outputs.
Configuration control via dataset, LINK LED, red BF bus fault LED, red SF group error LED, and green 24 V supply monitoring LED.
Product cancellation.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7151-3AA23-0AB0?
The product type designation is IM 151-3 PN ST, a SIMATIC DP interface module for ET 200S.
How many RJ45 ports does the interface module have?
It has 2 RJ45 (Ethernet) ports and supports a maximum transmission rate of 100 Mbit/s.
How many modules can be connected?
Up to 63 power, electronic, or motor starter modules can be connected up to 2 m width.
What is included with the bus connections?
The 2 RJ45 bus connections include a termination module.
