Product Overview
Applications
Provides the interface for PROFINET communication in an ET 200S configuration.
Technical Summary
| Product type | IM 151-3 PN HF |
|---|---|
| Transmission rate, max. | 100 Mbit/s |
| Connected I/O modules | Up to 63 |
| Bus connections | 2 via RJ45, including a termination module |
| Input addressing volume | 256 byte |
| Output addressing volume | 256 byte |
| Supply input current, max. | 200 mA |
| Power loss, typ. | 3.3 W |
| Mains/voltage failure stored energy time | 20 ms |
| Product lifecycle | Product cancellation |
Key Features

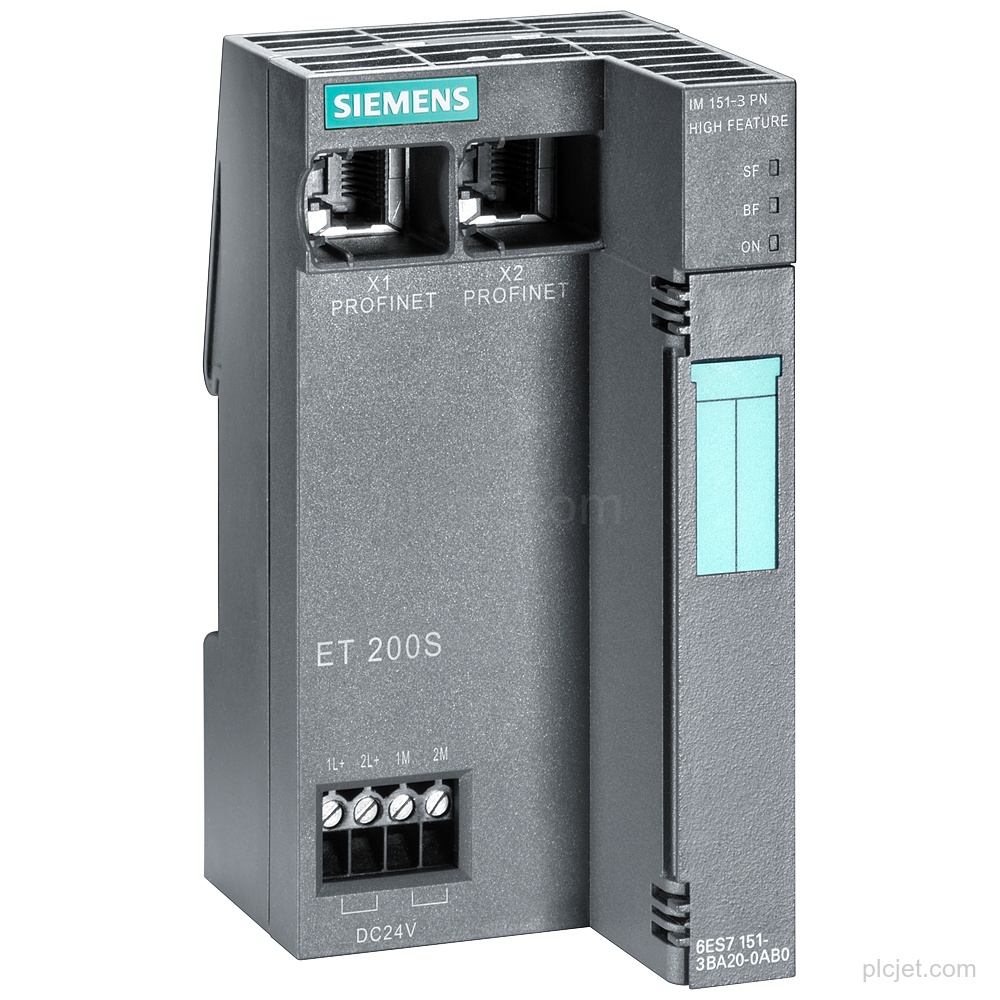

SIMATIC DP interface module IM 151-3 PN HF for ET 200S.
Maximum transmission rate: 100 Mbit/s.
Up to 63 I/O modules can be connected across up to 2 m width.
2 bus connections via RJ45, including a termination module.
Supports PROFINET IO, IRT, PROFIenergy, prioritized startup, and shared device.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6ES7151-3BA23-0AB0?
It is the SIMATIC DP interface module IM 151-3 PN HF for ET 200S.
What transmission rate and bus connections does it provide?
The maximum transmission rate is 100 Mbit/s, with 2 bus connections via RJ45 including a termination module.
How many I/O modules can be connected?
Up to 63 I/O modules can be connected across up to 2 m width.
