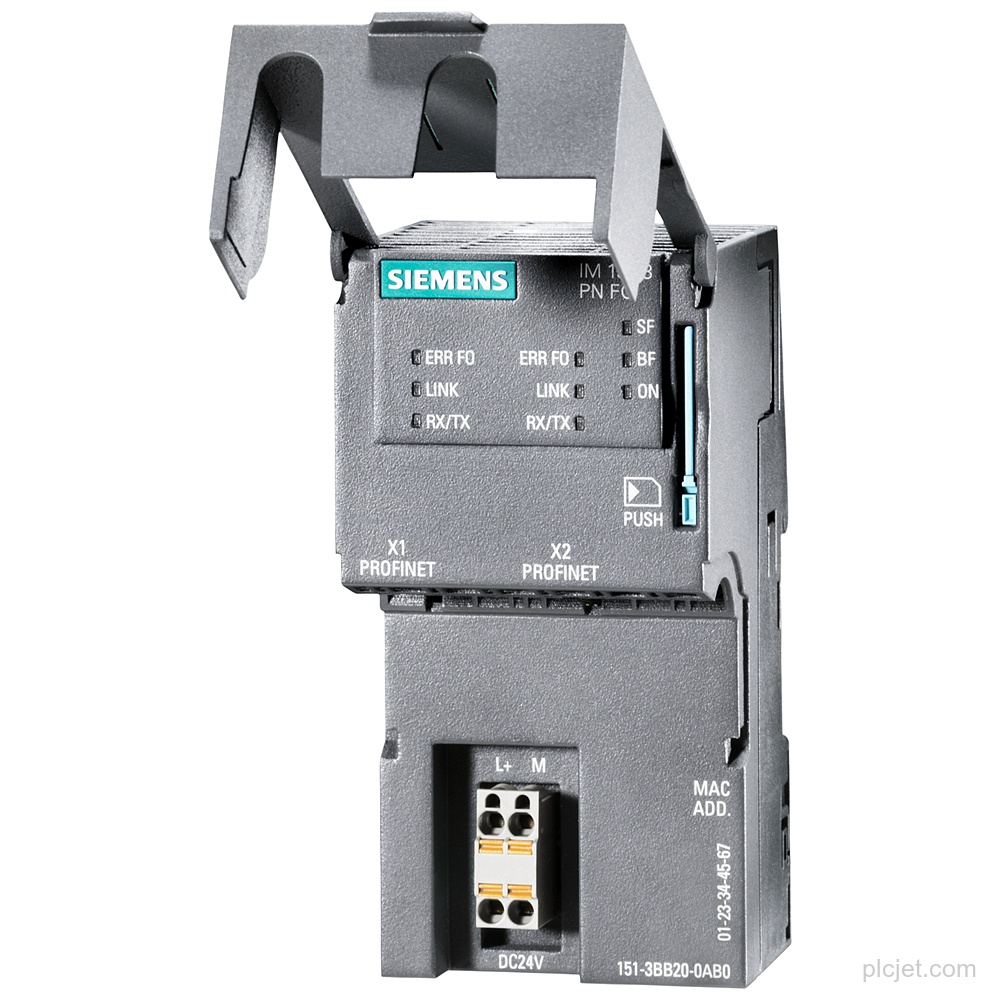

Product Overview
Technical Summary
| Product type | IM 151-3 PN FO |
|---|---|
| Interfaces | 2 PROFINET FOC interfaces; integrated 2-port switch |
| Maximum I/O module capacity | 63 I/O modules |
| Transmission rate, max. | 100 Mbit/s |
| Input addressing volume | 256 byte |
| Output addressing volume | 256 byte |
| Input current, max. | 200 mA from supply voltage 1L+ |
| Power loss, typ. | 5 W |
| Configuration control | Via dataset |
| Product lifecycle | Product cancellation |
Key Features
PROFINET fiber-optic interfaces
Has 2 PROFINET FOC interfaces and an integrated 2-port switch.
I/O module capacity
Supports up to 63 I/O modules and a maximum station width of 2 m.
PROFINET services
Supports PROFINET IO, IRT, PROFIenergy, prioritized startup, shared device, and MRP.
Addressing volume
Provides 256 byte input addressing volume and 256 byte output addressing volume.
Diagnostics and status
Has alarms, a diagnostics function, LINK LED, red BF and SF LEDs, and a green 24 V voltage-supply ON LED.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7151-3BB23-0AB0?
The product type designation is IM 151-3 PN FO.
How many PROFINET interfaces and I/O modules does this line item support?
It has 2 PROFINET FOC interfaces and supports up to 63 I/O modules.
What addressing volume does the module provide?
It provides 256 byte for inputs and 256 byte for outputs.
