Product Overview
Applications
Supports programming in LAD, FBD, STL and SCL with STEP 7.
Supports diagnostic functions, process diagnostic messages, a diagnostic buffer, and status/control functions.
Supports PROFIBUS DP device operation as a slave, including PG/OP communication and direct data exchange.
Technical Summary
| Order number | 6ES7151-7AB00-0AB0 |
|---|---|

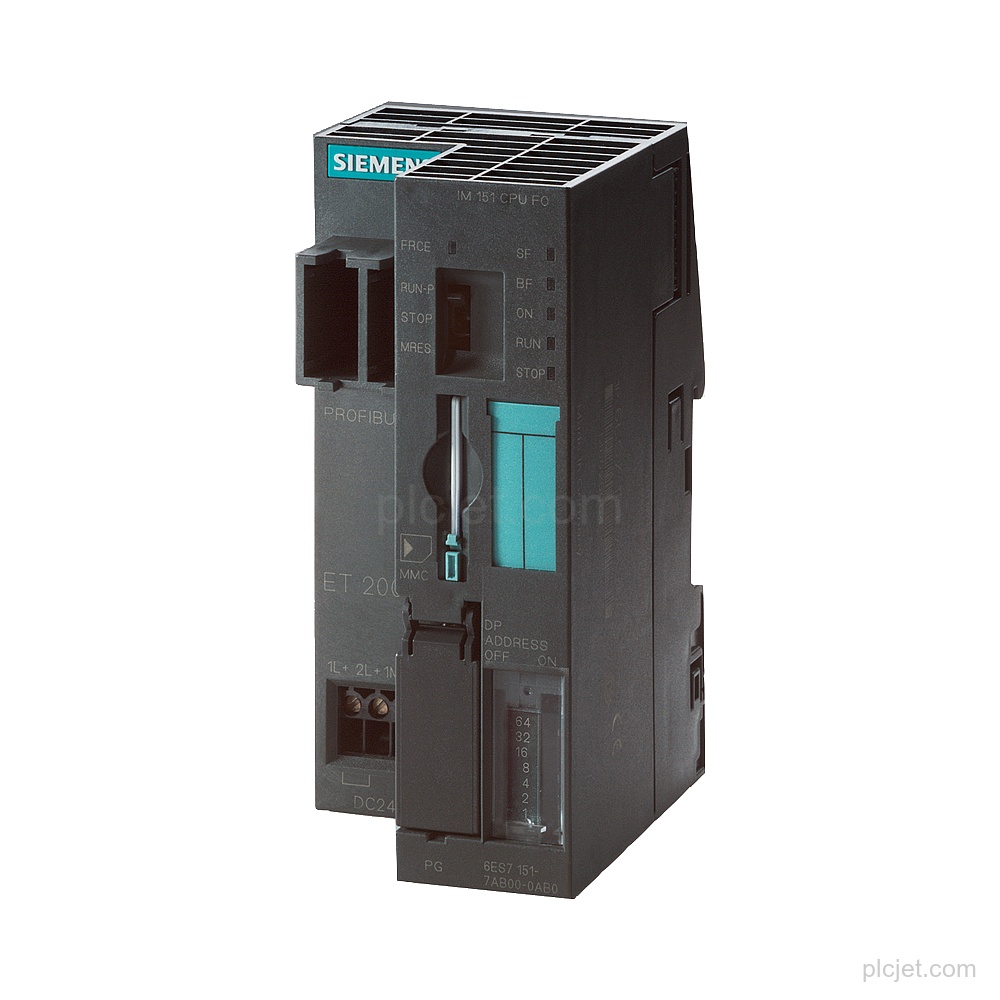

| Product type | SIMATIC DP IM151-7 CPU FO for ET200S |
| Work memory | 48 KB integrated |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V DC permissible |
| PROFIBUS DP transmission rate | 12 Mbit/s max. |
| PROFIBUS DP connections | 11 |
| PROFIBUS DP address area | 32 max. |
| Programming package | STEP 7 V5.1 or higher |
| Mounting rail | 1 rail; 2 m max.; station width ≤ 1 m or < 2 m |
| Product lifecycle | Product cancellation |
Key Features
IM151-7 CPU FO with 48 KB integrated work memory; the memory is not expandable. Plug-in MMC load memory is supported up to 2 Mbyte.
Integrated PROFIBUS DP interface as a DP slave, with a fiber-optic interface and integrated RS 485 interface for programming; transmission rate up to 12 Mbit/s.
Rated supply voltage: 24 V DC. Permissible range: 20.4 V to 28.8 V DC, with reverse polarity protection against destruction.
Engineering with STEP 7 V5.1 or higher; STEP 7 Lite V2.0 or higher is supported.

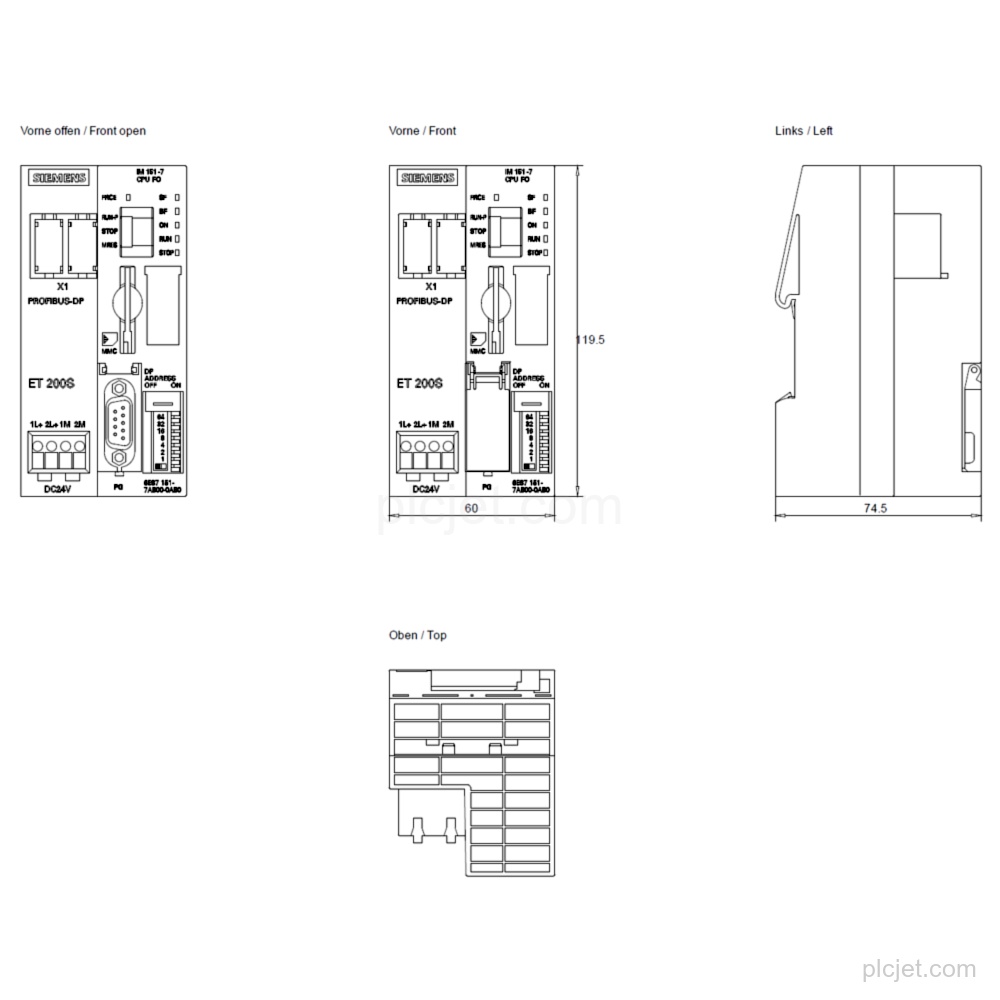

One mounting rail can be used. Maximum mounting rail length is 2 m, with station width ≤ 1 m or < 2 m. Dimensions are 60 mm × 119.5 mm × 75 mm.
The spare part is supplied without a battery.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7151-7AB00-0AB0, a SIMATIC DP IM151-7 CPU FO for ET200S.
What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range from 20.4 V to 28.8 V DC.
Which PROFIBUS DP capabilities are supported?
It supports PROFIBUS DP device operation as a slave, up to 11 connections, and a maximum transmission rate of 12 Mbit/s.
Is a battery included in this configuration?
It is without a battery.
What information should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for the quotation.
