Product Overview
Applications
The CPU supports PROFINET IO Controller functionality and can also operate as a PROFINET IO Device.
Technical Summary
| Order number | 6ES7151-8AB01-0AB0 |
|---|---|

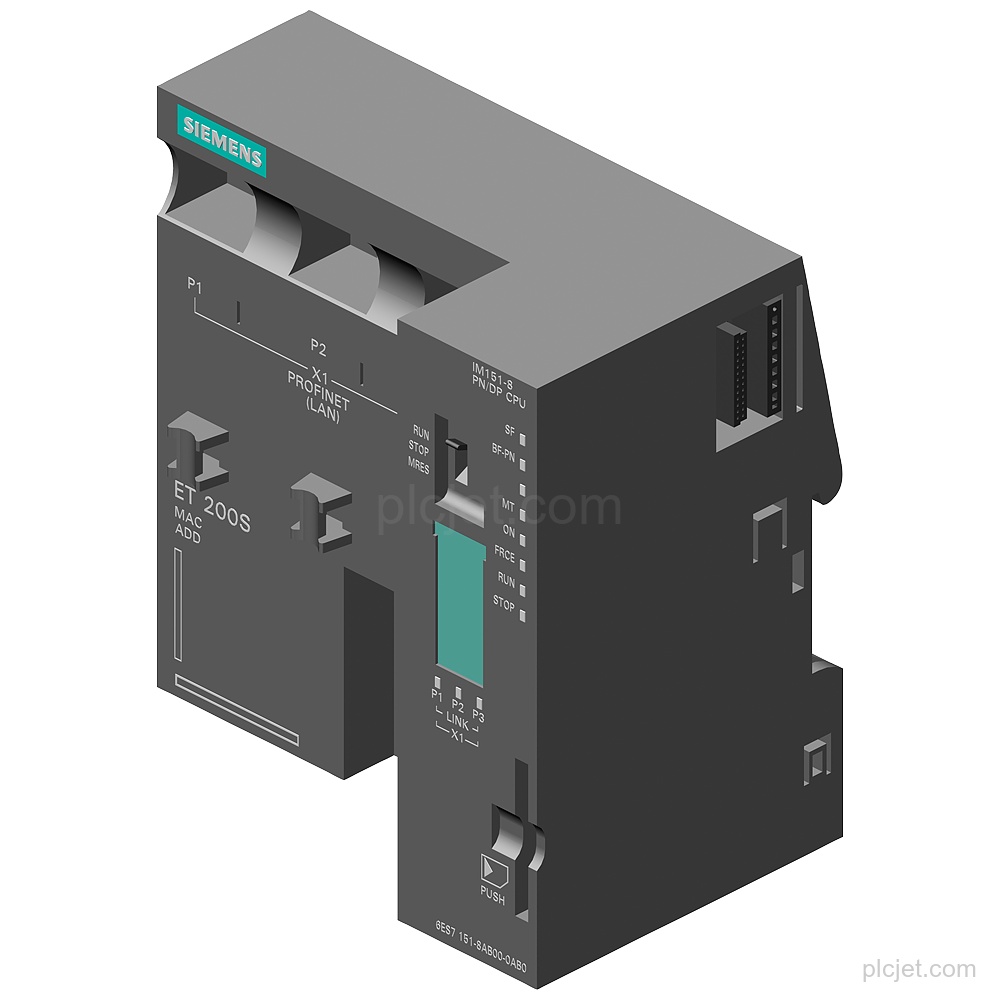

| Product function | SIMATIC DP IM151-8 PN/DP CPU for ET200S; PROFINET IO Controller |
| Work memory | 192 kbyte, integrated; not expandable |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V DC permissible range |
| PROFINET interface | 1x PROFINET; 3 RJ45 ports; up to 100 Mbit/s full duplex |
| PROFINET IO Devices | 128 connectable devices maximum |
Key Features
1x PROFINET interface with 3 RJ45 ports, integrated switch, and transmission rate up to 100 Mbit/s full duplex.
PROFINET IO Controller and PROFINET IO Device functionality can operate simultaneously.
Integrated 192 kbyte work memory; not expandable.
Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
Programming package: STEP 7 V5.5 or STEP 7 TIA Portal V11 and later.
An MMC is required; the product is supplied without a battery.
Frequently Asked Questions
What is the exact Siemens model?
The exact model is 6ES7151-8AB01-0AB0, a SIMATIC DP IM151-8 PN/DP CPU for ET200S.
What supply voltage does this CPU use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
What configuration items should be retained in a quotation request?
Retain that an MMC is required and that the product is supplied without a battery. Include the requested quantity, destination, schedule, and any additional BOM lines.
