Product Overview
Technical Summary
| Product type designation | IM 153-4 PN ST |
|---|---|
| Bus protocol/transmission protocol | PROFINET IO |
| Modules per DP device interface, max. | 12 |
| Supply voltage, rated value (DC) | 24 V |
| Permissible supply voltage range (DC) | 20.4 V to 28.8 V |
| Input addressing volume | 192 byte |
| Output addressing volume | 192 byte |
| IP degree of protection | IP20 |
| Ambient temperature during operation | 0 °C to 60 °C |
| Product lifecycle | Product cancellation |
Key Features

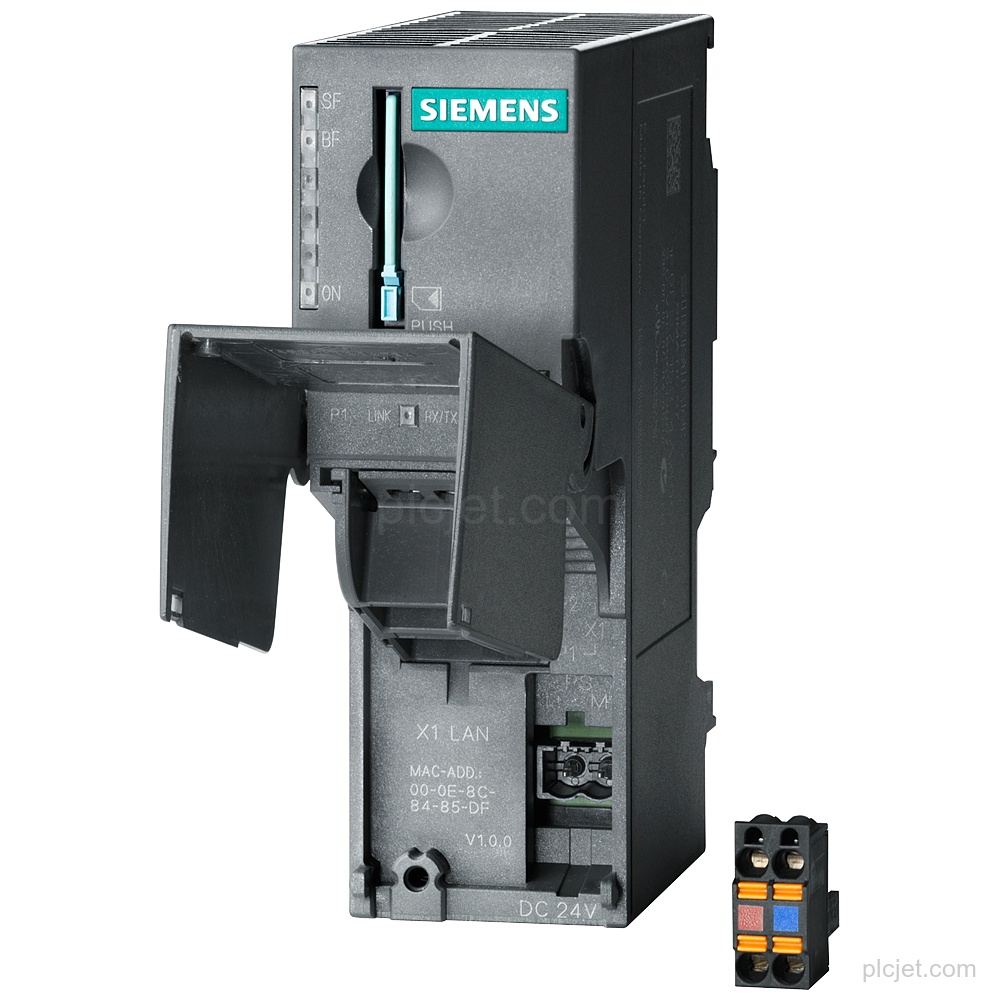

SIMATIC DP connection module with product type designation IM 153-4 PN ST.
Supports up to 12 modules per DP device interface.
Bus protocol/transmission protocol: PROFINET IO.
Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
Inputs: 192 byte; outputs: 192 byte.
Module diagnostics, LINK LED, RX/TX LED, potential separation, and IP20 protection are provided.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7153-4AA01-0XB0?
The product type designation is IM 153-4 PN ST.
What supply voltage does this interface module use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
How many modules can the DP device interface support?
It supports up to 12 modules per DP device interface.
Which protocol and protection rating are provided?
The bus protocol/transmission protocol is PROFINET IO, and the IP degree of protection is IP20.
