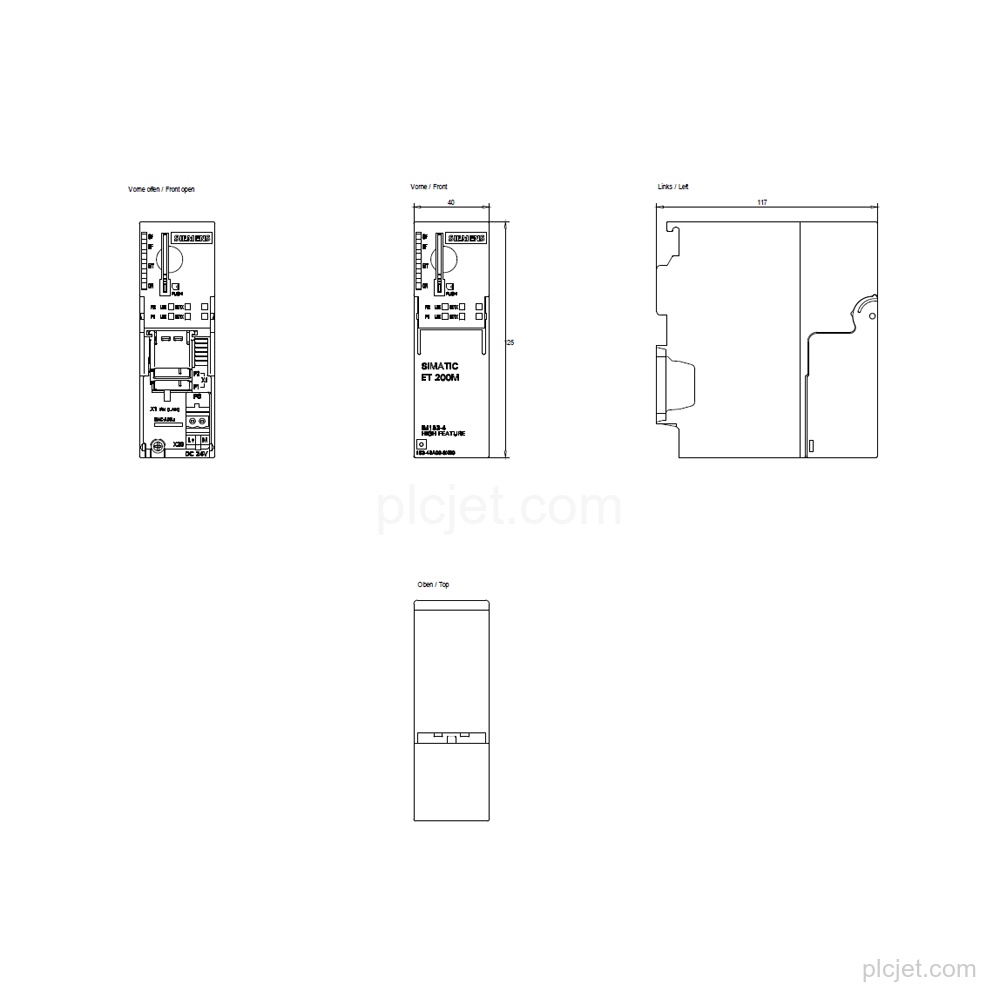

Product Overview
Technical Summary
| Product type | IM 153-4 PN HF |
|---|---|
| Module capacity | 12 modules per DP device interface, max. |
| Bus protocol | PROFINET IO |
| Input addressing | 672 byte; Extended HART user data |
| Output addressing | 192 byte |
| Supply voltage | 24 V DC rated; 20.4 V to 28.8 V DC permissible range |
| Current consumption | 600 mA max.; with 24 V DC supply |
| Protection | IP20 |
| Operating temperature | 0 °C to 60 °C |
| Lifecycle | Product cancellation |
Key Features
Supports up to 12 modules per DP device interface.
Supports PROFINET IO, shared device, IRT, prioritized startup, TCP/IP, SNMP, LLDP, ping, and ARP.
Inputs: 672 byte with Extended HART user data; outputs: 192 byte.
Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
Supports fail-safe modules and HART modules.
Product cancellation. Packaging dimensions: 15.20 x 12.80 x 5.20 cm; net weight: 0.258 kg.
Frequently Asked Questions
What is the exact product type for 6ES7153-4BA00-0XB0?

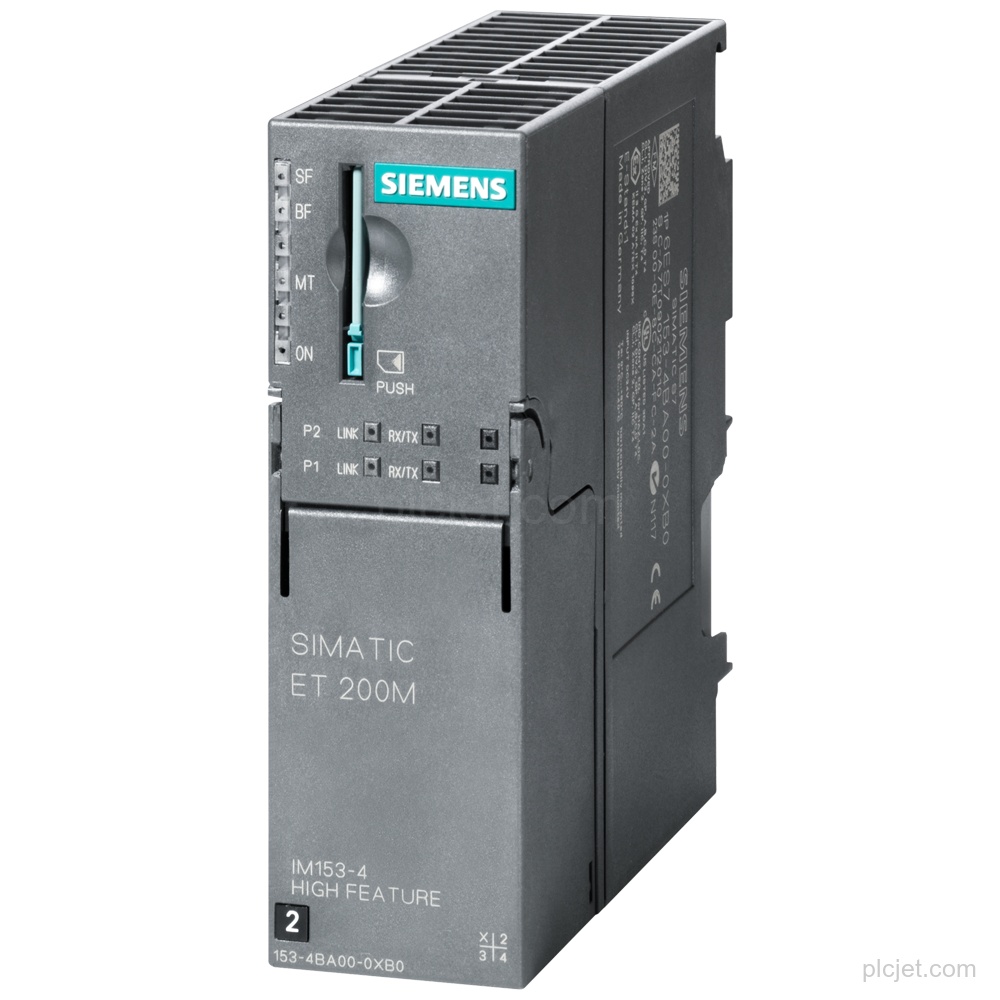

The product type is IM 153-4 PN HF, a SIMATIC DP connection module for ET 200M.
How many modules can this line item support?
It supports up to 12 modules per DP device interface.
What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
Which interfaces and protocols are supported?
It supports PROFINET IO, TCP/IP, SNMP, LLDP, ping, ARP, IRT, and MRP.
