Product Overview
Technical Summary
| Product type | IM 154-8FX PN/DP CPU |
|---|---|
| Work memory | 1 536 kbyte, not expandable |
| Load memory | Plug-in MMC, max. 8 Mbyte |
| Supply voltage | 24 V DC rated value |
| PROFINET interface | 3 ports; Ethernet (2x M12 D-coded; 1x RJ45); 10/100 Mbit/s |
| PROFIBUS DP master | Yes; max. 124 DP devices; 12 Mbit/s |
| Digital channels | Inputs 16 384; outputs 16 384 |
| Analog channels | Inputs 1 024; outputs 1 024 |
| Connection design | 2x M12 B-coded |
| Protection | IP65/67 |
| Programming package | As of STEP 7 V5.5 with HSP 222 + Distributed Safety V5.4 SP4 |
| Lifecycle | Product cancellation |
Key Features

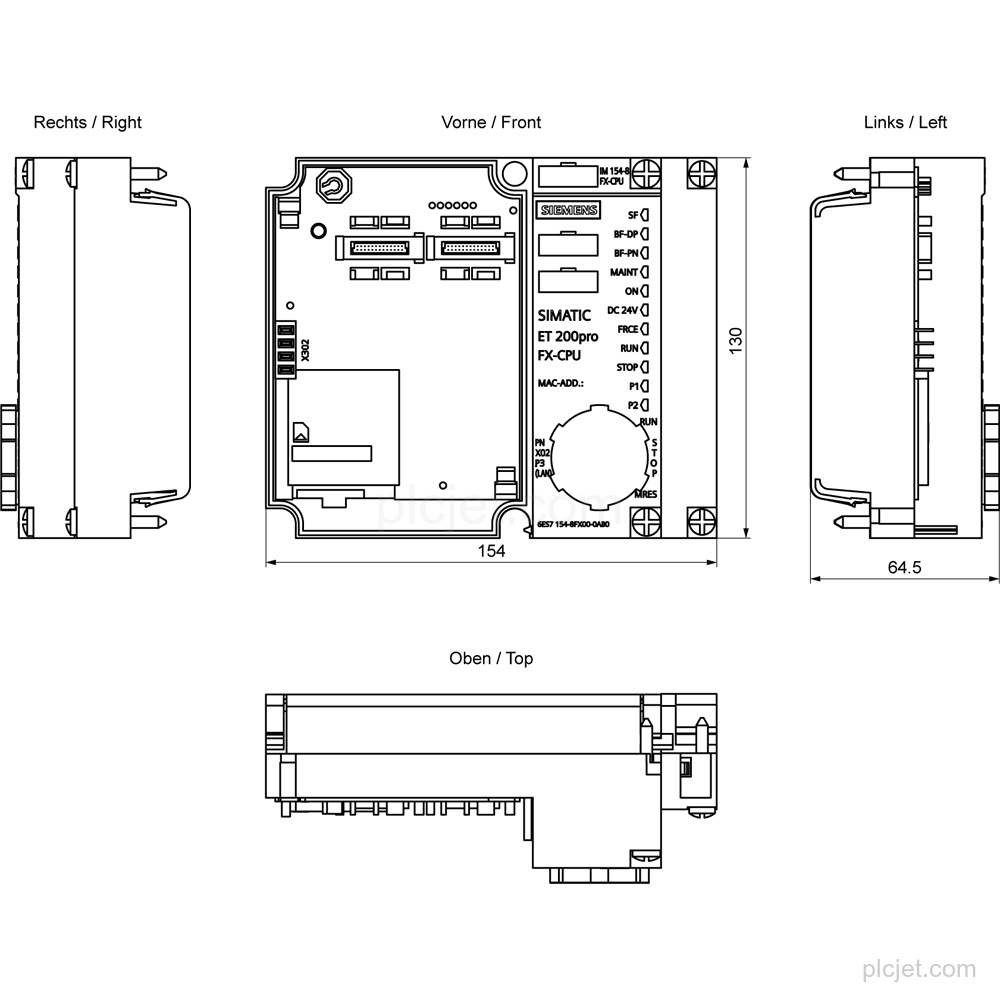

Product type

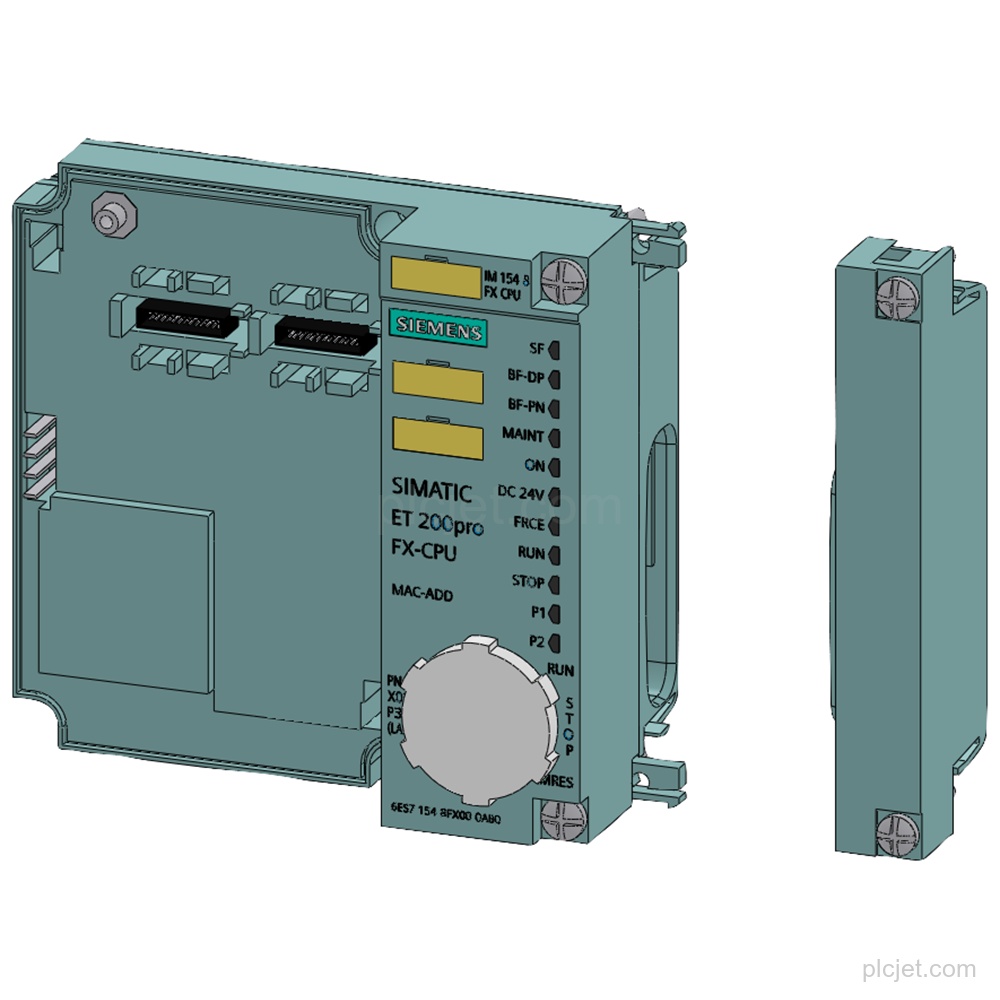

IM 154-8FX PN/DP CPU for ET200 Pro.
Work memory
1 536 kbyte integrated work memory; not expandable.

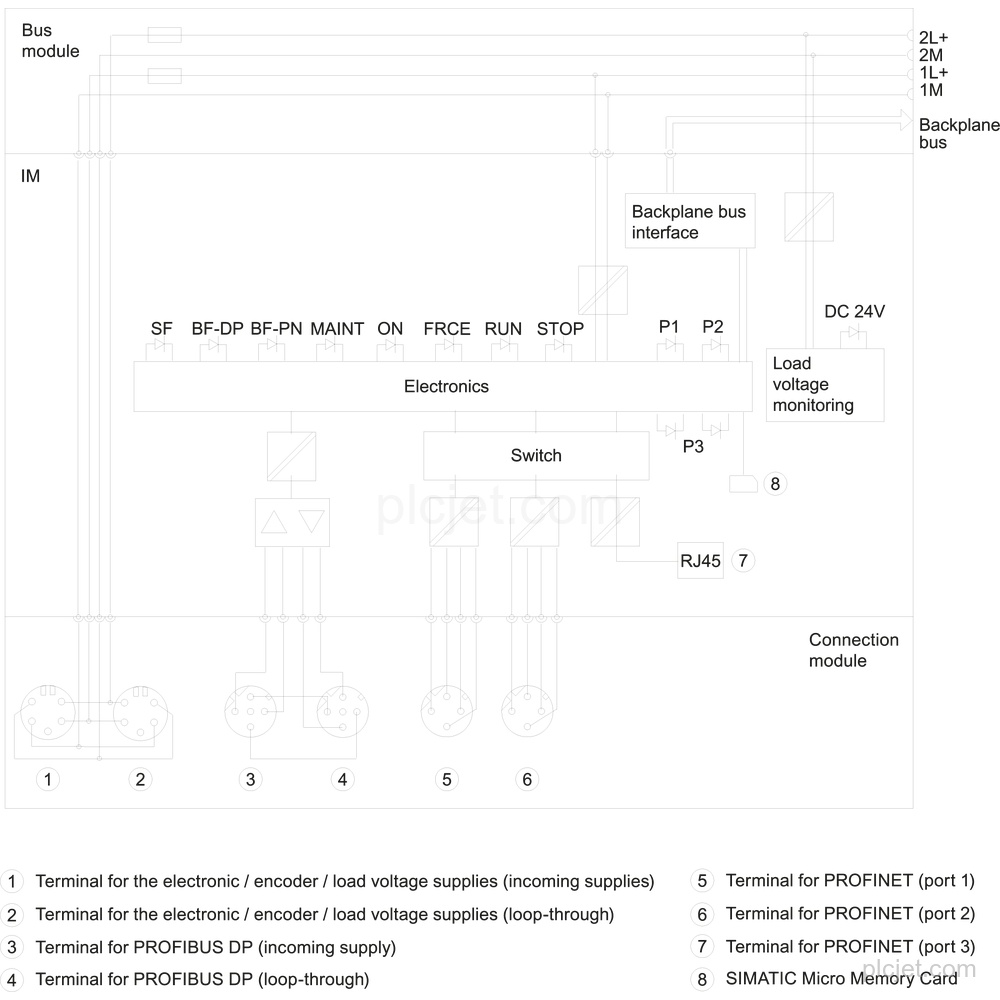

Interfaces
Internal PROFINET interface and internal PROFIBUS DP master/device interface.
Supply voltage
Rated supply voltage: 24 V DC.
Protection
Degree of protection: IP65/67.
Required items
Micro Memory Card and connection module are required.
Frequently Asked Questions
What is Siemens 6ES7154-8FX00-0AB0?
It is an IM 154-8FX PN/DP CPU for ET200 Pro.
Which memory is included?
It has 1 536 kbyte integrated work memory and plug-in MMC load memory up to 8 Mbyte. The work memory is not expandable.
Which interfaces does this CPU have?
It has an internal PROFINET interface and an internal PROFIBUS DP master/device interface.
What is required for the configuration?
A Micro Memory Card and connection module are required.
