Product Overview
Technical Summary

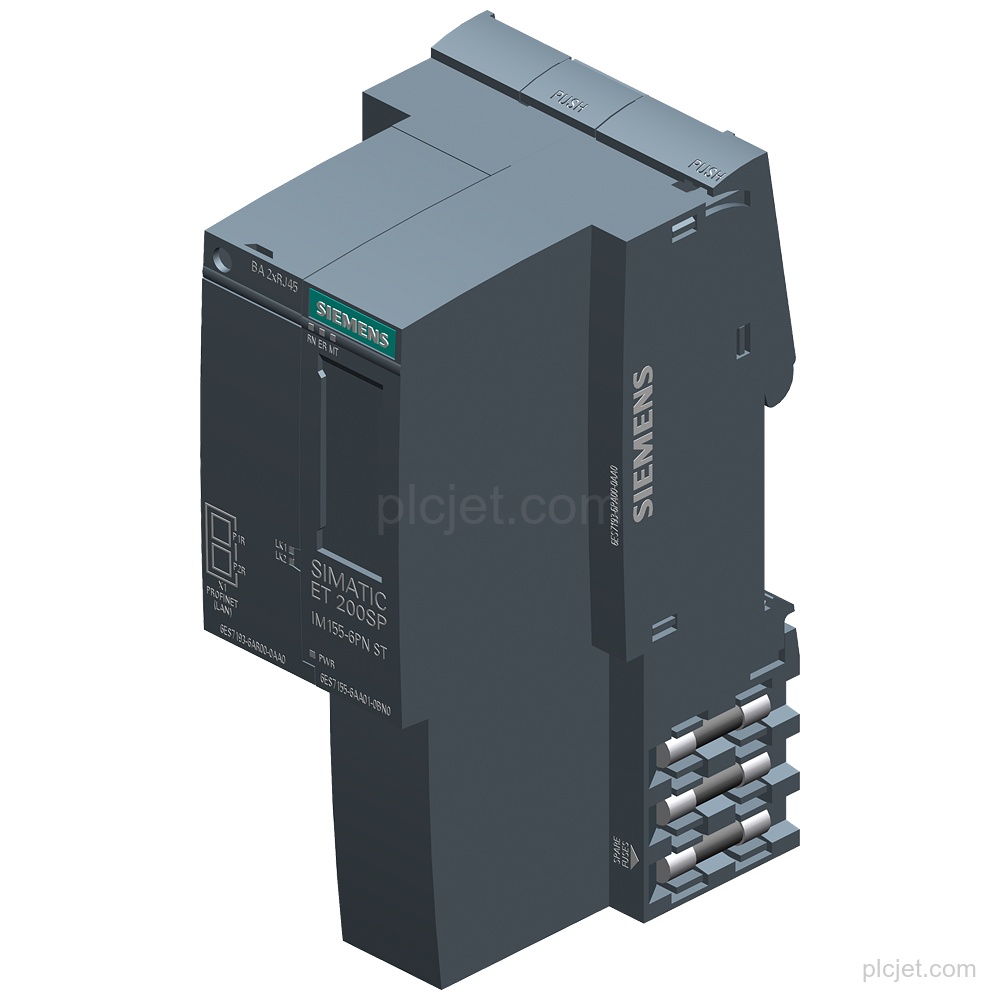

| Product type | IM155-6PN ST, including BusAdapter BA 2x RJ45 |
|---|---|
| Firmware version | V4.2 |
| I/O module capacity | 32 ET 200SP modules and 16 ET 200AL modules, maximum |
| PROFINET interfaces | 1; 2 ports (switch) |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| Current consumption | 450 mA rated; 550 mA maximum |
| Hot swapping | Single hot swapping during operation |
| Included components | Interface module, server module, and BusAdapter BA 2xRJ45 |
Key Features
Supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.
Has 1 PROFINET interface with 2 switch ports and a BusAdapter; the bundle includes BA 2xRJ45.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
Supports single module hot swapping during operation.
Bundle consists of interface module 6ES7155-6AU01-0BN0, server module 6ES7193-6PA00-0AA0, and BusAdapter BA 2xRJ45 6ES7193-6AR00-0AA0.
Frequently Asked Questions
What is the exact product type of 6ES7155-6AA01-0BN0?
It is an IM155-6PN ST, including BusAdapter BA 2x RJ45.
How many modules can this configuration support?
It supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.
What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
Which components are included in the configuration?
It includes interface module 6ES7155-6AU01-0BN0, server module 6ES7193-6PA00-0AA0, and BusAdapter BA 2xRJ45 6ES7193-6AR00-0AA0.
