Product Overview
Technical Summary
| Product type | IM 155-6 MF HF |
|---|---|
| Firmware version | V5.2 |
| Supply voltage, rated | 24 VDC |
| Permissible supply voltage | 19.2 V to 28.8 VDC |
| ET 200SP modules, max. | 64 |
| ET 200AL modules, max. | 16 |
| PROFINET interfaces | 1; 2 ports (switch) |
| BusAdapter | 1 slot; BusAdapter (PROFINET) supported |
| Supported protocols | PROFINET IO, EtherNet/IP, Modbus TCP |
| I/O request interval | 2 ms |
| Protection functions | Reverse polarity protection; short-circuit protection |
| Product lifecycle | Product cancellation |
Key Features
Supports PROFINET IO, EtherNet/IP and Modbus TCP, with Open IE communication over TCP/IP and UDP.
Supports up to 64 ET 200SP modules, 16 ET 200AL modules and 256 submodules per station.
Provides 1 PROFINET interface with 2 switch ports and 1 slot for a BusAdapter.
Rated supply is 24 VDC with a permissible range of 19.2 V to 28.8 V, reverse polarity protection and short-circuit protection.
Supports multi-hot swapping, with I&M0 to I&M3 data and a tool changer for docking station and docking unit.
Includes the server module; the cable grip is optional.
Frequently Asked Questions
What is the exact product type of 6ES7155-6MU00-0CN0?

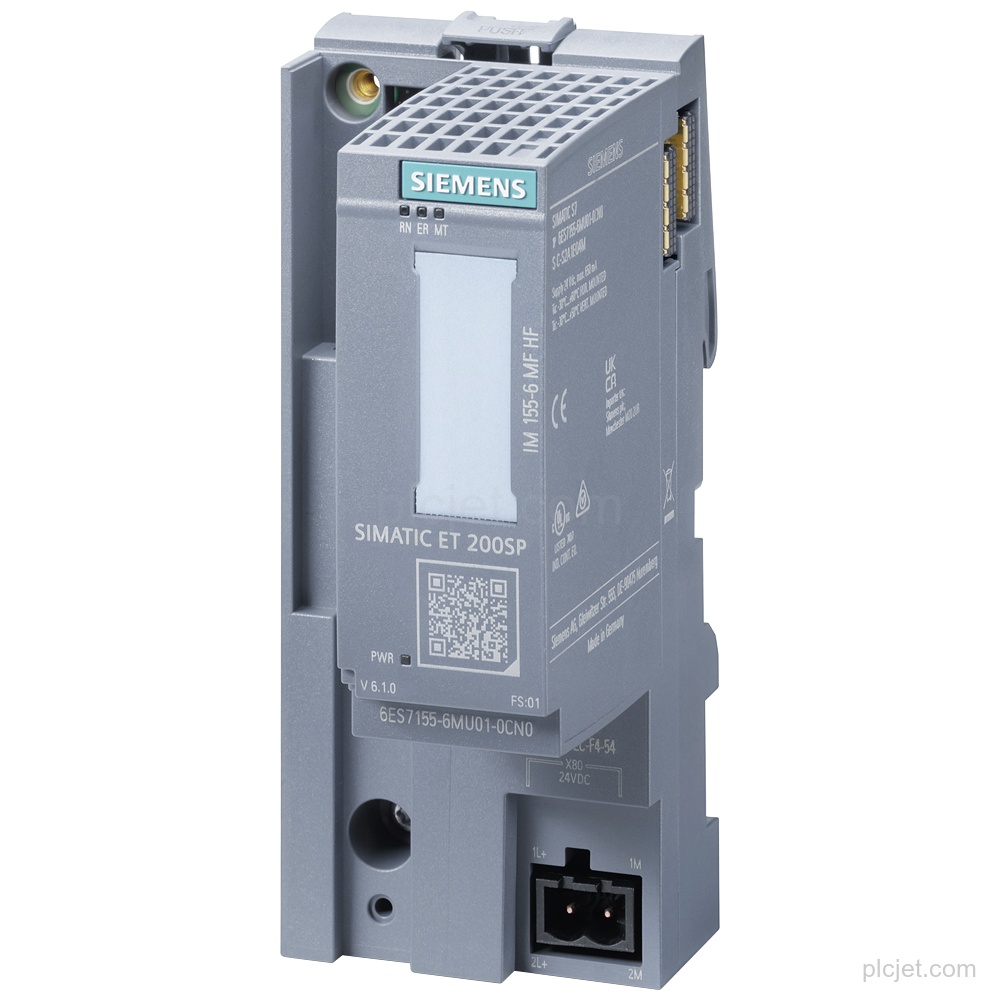

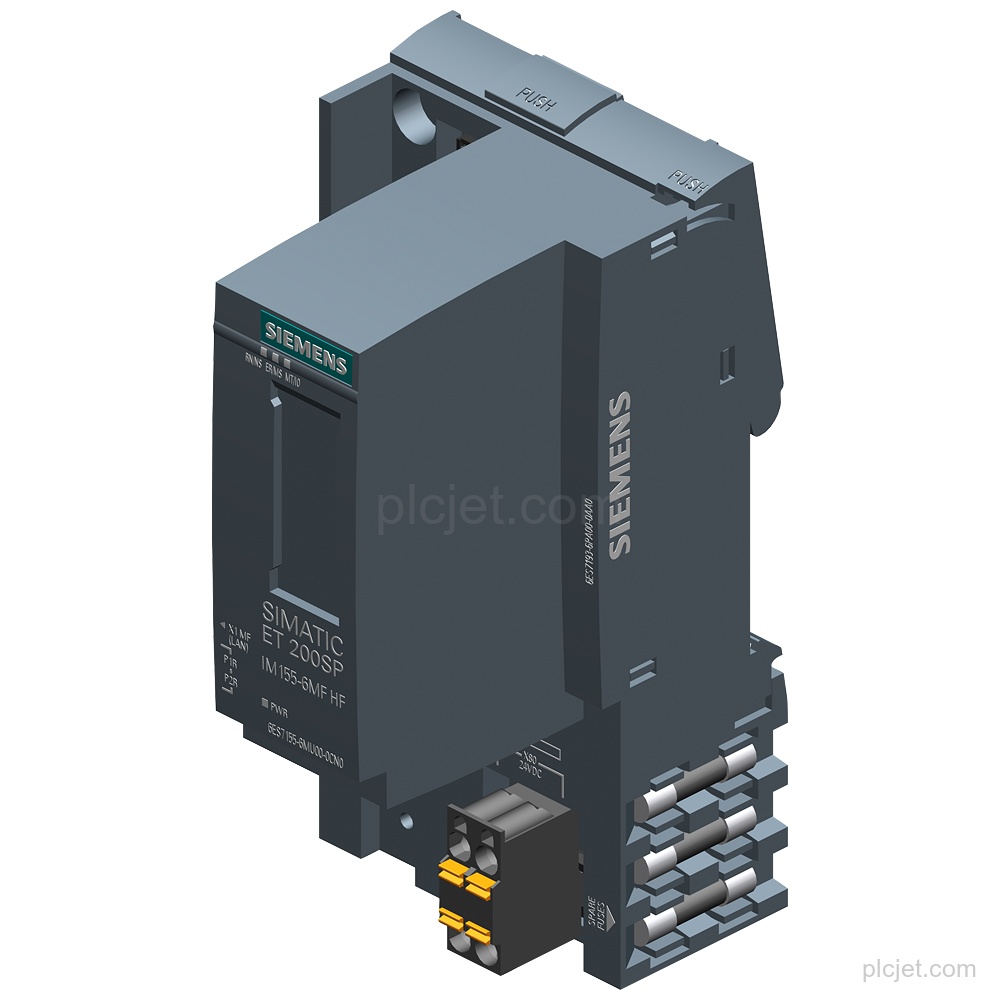

The product type is IM 155-6 MF HF, a SIMATIC ET 200SP multi-fieldbus, 2-port interface module.
Which communication protocols does this interface module support?
It supports PROFINET IO, EtherNet/IP and Modbus TCP. Open IE communication is supported over TCP/IP and UDP.
How many modules can the station support?
It supports up to 64 ET 200SP modules and 16 ET 200AL modules, with up to 256 submodules per station.
What supply voltage does it require?
The rated supply voltage is 24 VDC, with a permissible range of 19.2 V to 28.8 VDC.
