Product Overview
Applications
Connects analog drives and stepper drives on isochronous PROFIBUS to Motion Control systems.
Technical Summary
| Product lifecycle | Product cancellation |
|---|---|
| Supply voltage | 24 V DC rated; permissible range 20.4 V to 28.8 V DC |
| Digital inputs | 10 |
| Digital outputs | 8, short-circuit protected |
| Analog outputs | 4; -10 V to +10 V; 15 bit maximum resolution with overrange, including sign |
| Encoder capacity | 4 connectable encoders maximum |
| Drive interfaces | 4 |
| Encoder signal input | 5 V difference signal (phys. RS 422); 1 MHz maximum for incremental encoder signals |
| PROFIBUS Motion Control | Isochronous PROFIBUS connection for analog and stepper drives |
| Configuration | STEP 7 V5.4 SP4 |
| Front connector | 40-pin required |
Key Features
4 drive interfaces for analog and stepper drives.
Up to 4 connectable encoders; supports incremental encoders, absolute encoders (SSI), and 2-wire sensors.
10 digital inputs and 8 digital outputs; digital outputs have short-circuit protection.
4 analog outputs with a -10 V to +10 V output range and 15 bit maximum resolution with overrange, including sign.
Connects analog and stepper drives on isochronous PROFIBUS to Motion Control systems.
Configurable with STEP 7 V5.4 SP4 and requires a 40-pin front connector.
Frequently Asked Questions
What is the exact line item?

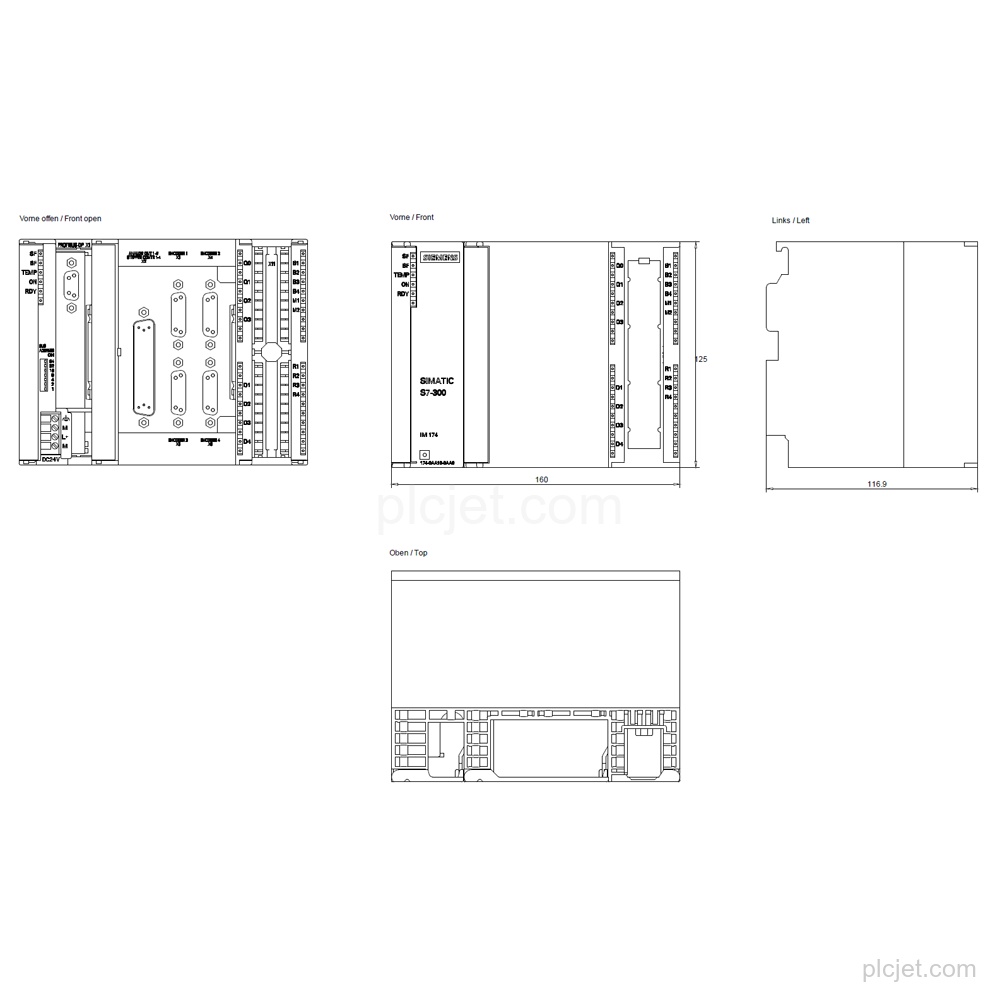

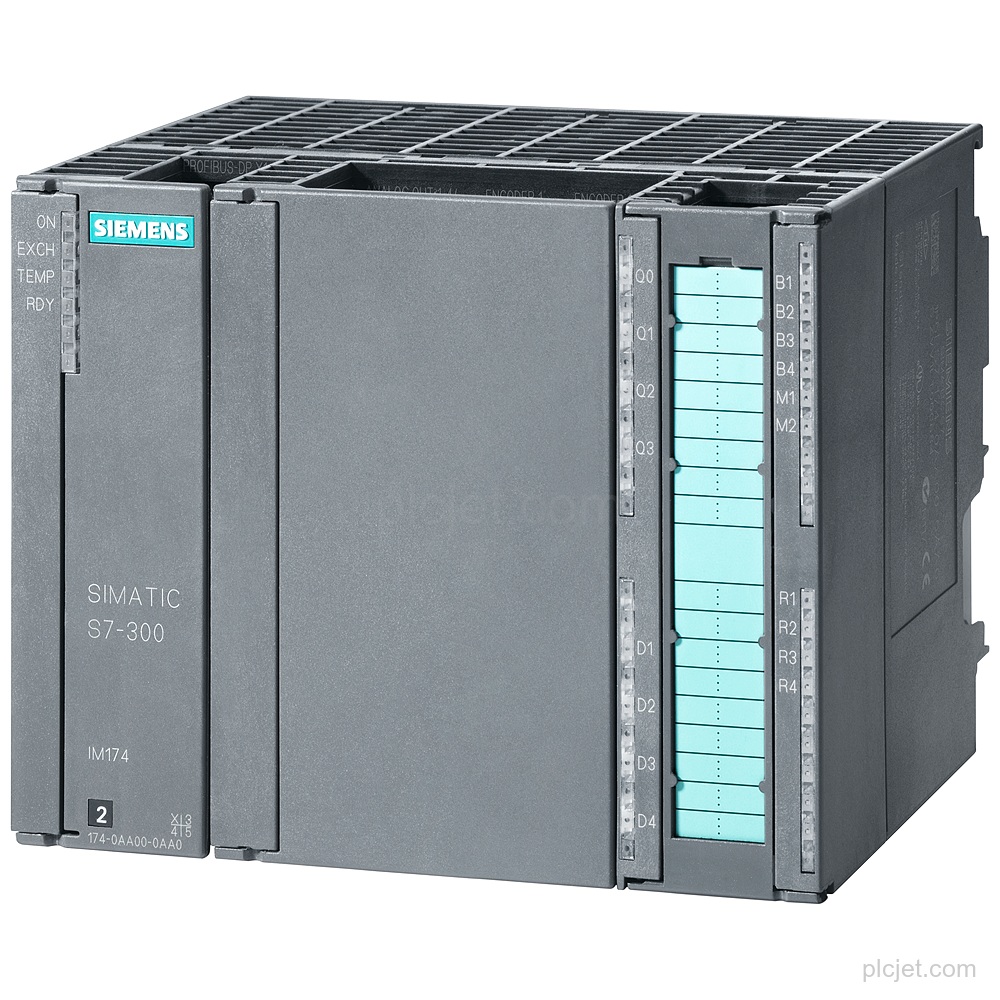

It is the Siemens 6ES7174-0AA10-0AA0 SIMATIC S7-300 IM174 interface module.
How many encoders can the module connect?
It supports up to 4 connectable encoders, including incremental encoders, absolute encoders (SSI), and 2-wire sensors.
What connector is required?
A 40-pin front connector is required.
What configuration software does it use?
It is configurable with STEP 7 V5.4 SP4.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
