Product Overview
Technical Summary
| Product identity | 6ES7194-3AA00-0AA0 |
|---|---|
| Product type | SIMATIC DP, connection block ECOFAST for ET 200ECO |
| RS485 connections | 2x ECOFAST connections RS485 |
| PROFIBUS interface | ID connector for PROFIBUS DP |
| Power loss, typ. | 2 W; depends on the current looped through via the connection block |
| Product lifecycle | Product cancellation |
Key Features

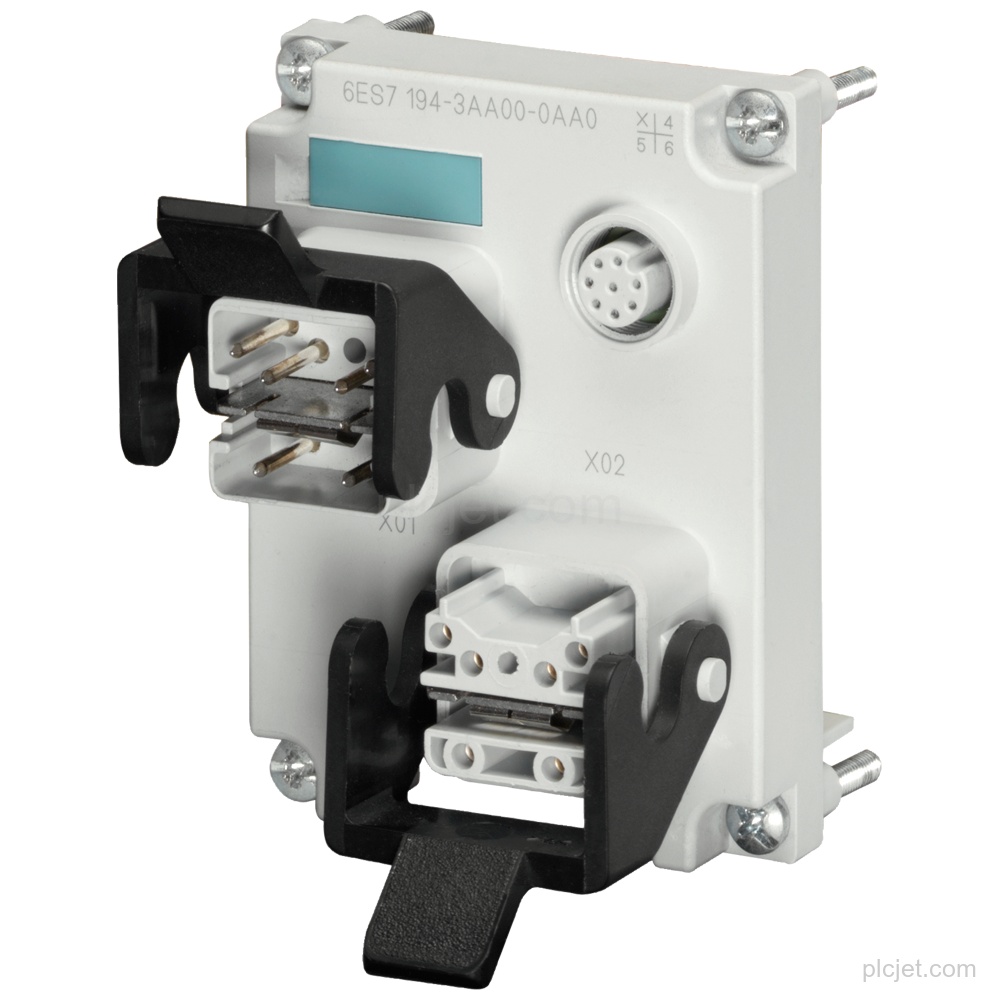

Connection block ECOFAST for ET 200ECO.
2x ECOFAST connections RS485.
ID connector for PROFIBUS DP.
Address setting is included in the supplied description.
Power loss, typ.: 2 W; it depends on the current looped through via the connection block.

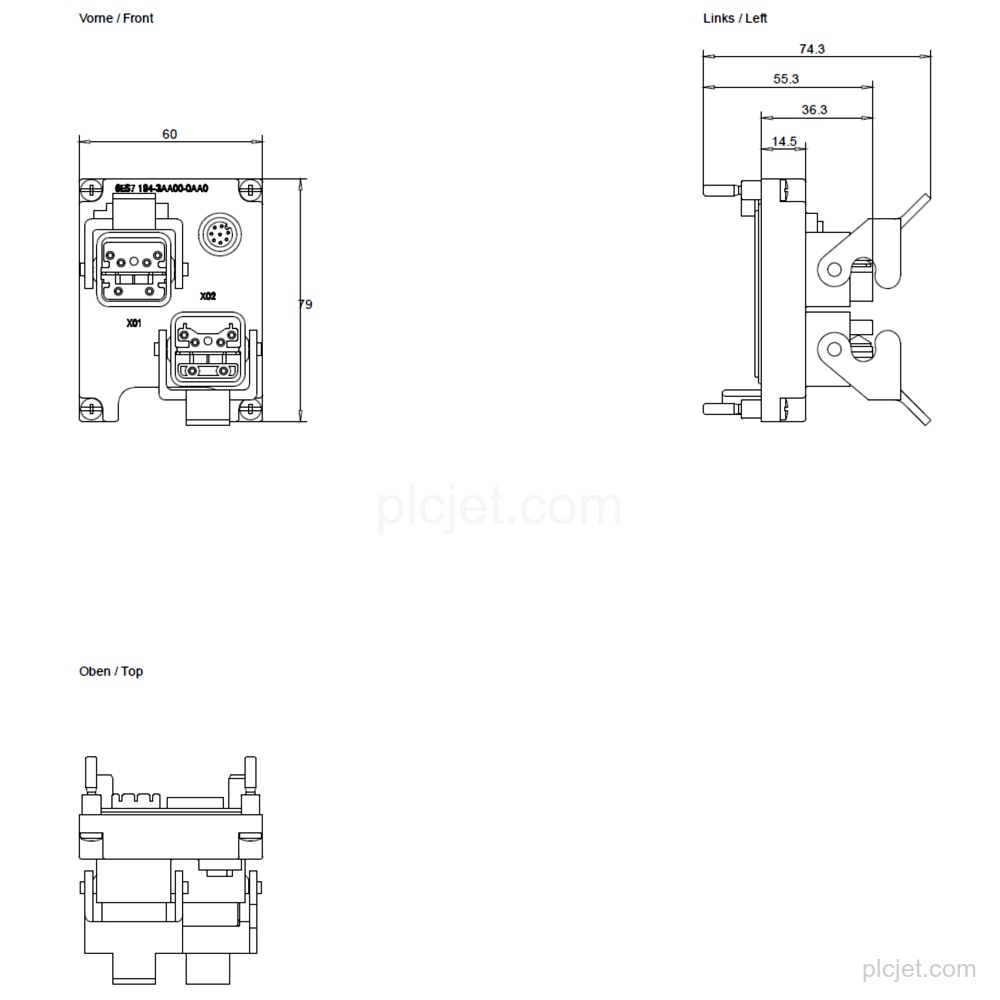

Dimensions: 79 mm width, 60 mm height, and 30 mm depth. Weight, approx.: 313 g.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7194-3AA00-0AA0, a SIMATIC DP connection block ECOFAST for ET 200ECO.
How many ECOFAST RS485 connections does it have?
It has 2x ECOFAST connections RS485.
Which PROFIBUS connection is included?
It has an ID connector for PROFIBUS DP.
What are the dimensions and approximate weight?
The dimensions are 79 mm width, 60 mm height, and 30 mm depth; the approximate weight is 313 g.
Can this exact line item be added to a project quotation request?
Yes. Include the model, requested quantity, destination, schedule context, and any additional BOM lines in the quotation request.
