Product Overview
Technical Summary

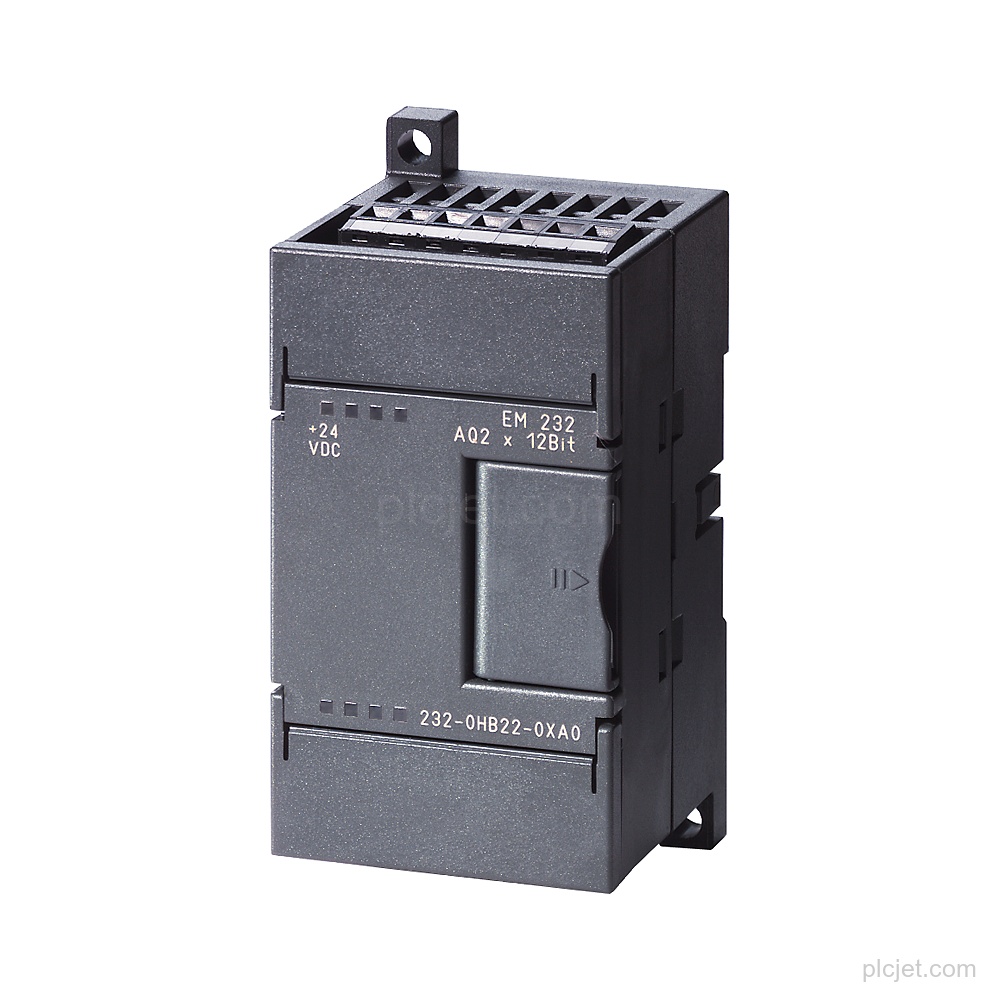

| Product | SIMATIC S7-200 analog output EM 232 |
|---|---|
| CPU restriction | Only for S7-22X CPU |
| Analog outputs | 4 |
| Voltage output range | -10 V to +10 V |
| Current output range | 4 mA to 20 mA |
| Voltage output load impedance | Minimum 5 kΩ in the rated range of output |
| Current output load impedance | Maximum 0.5 kΩ in the rated range of output |
| Conversion resolution | 12 bit; U / 12 bit, I / 11 bit |
| Voltage output settling time | 100 μs |
| Current output settling time | 2 ms |
Key Features
4 analog outputs with voltage range -10 V to +10 V and current range 4 mA to 20 mA.
Voltage outputs: minimum 5 kΩ in the rated range of output; current outputs: maximum 0.5 kΩ in the rated range of output.
Resolution with overrange: 12 bit; U / 12 bit, I / 11 bit.
100 μs for voltage output and 2 ms for current output.
Maximum 70 mA from external 24 V DC supply and maximum 20 mA from the 5 V DC backplane bus.
Dimensions are 71.2 mm wide, 80 mm high and 62 mm deep; weight is approximately 190 g.
Frequently Asked Questions
What is the exact Siemens line item?
It is 6ES7232-0HD22-0XA0, SIMATIC S7-200 analog output EM 232.
How many analog outputs does the module have?
It has 4 analog outputs.
What output ranges are supported?
It supports -10 V to +10 V for voltage output and 4 mA to 20 mA for current output.
What load impedance applies to the outputs?
Voltage outputs require a minimum 5 kΩ load impedance in the rated range of output; current outputs allow a maximum 0.5 kΩ in the rated range of output.
What details should be included for a quotation request?
Include the requested quantity, destination, schedule context and any additional BOM lines.
