Technical Summary
| Digital output capacity | 8 isolated digital outputs |
|---|---|
| Load voltage | 48 V DC to 125 V DC |
| Rated output current | 1.5 A for signal "1" |
| Output protection | Electronic short-circuit protection; reverse polarity protection through fuse |
| Front connector | 20-pin |
| Potential separation | Between channels in groups of 4; between channels and backplane bus through optocoupler |
| Product lifecycle | Product cancellation |
Key Features
8 isolated digital outputs with a 1.5 A rated output current for signal "1".
Rated load voltage: 48 V; permissible DC range: 48 V DC to 125 V DC.
Electronic short-circuit protection and reverse polarity protection through fuse.
Requires a 20-pin front connector; potential separation is provided between channels in groups of 4 and between channels and the backplane bus through an optocoupler.

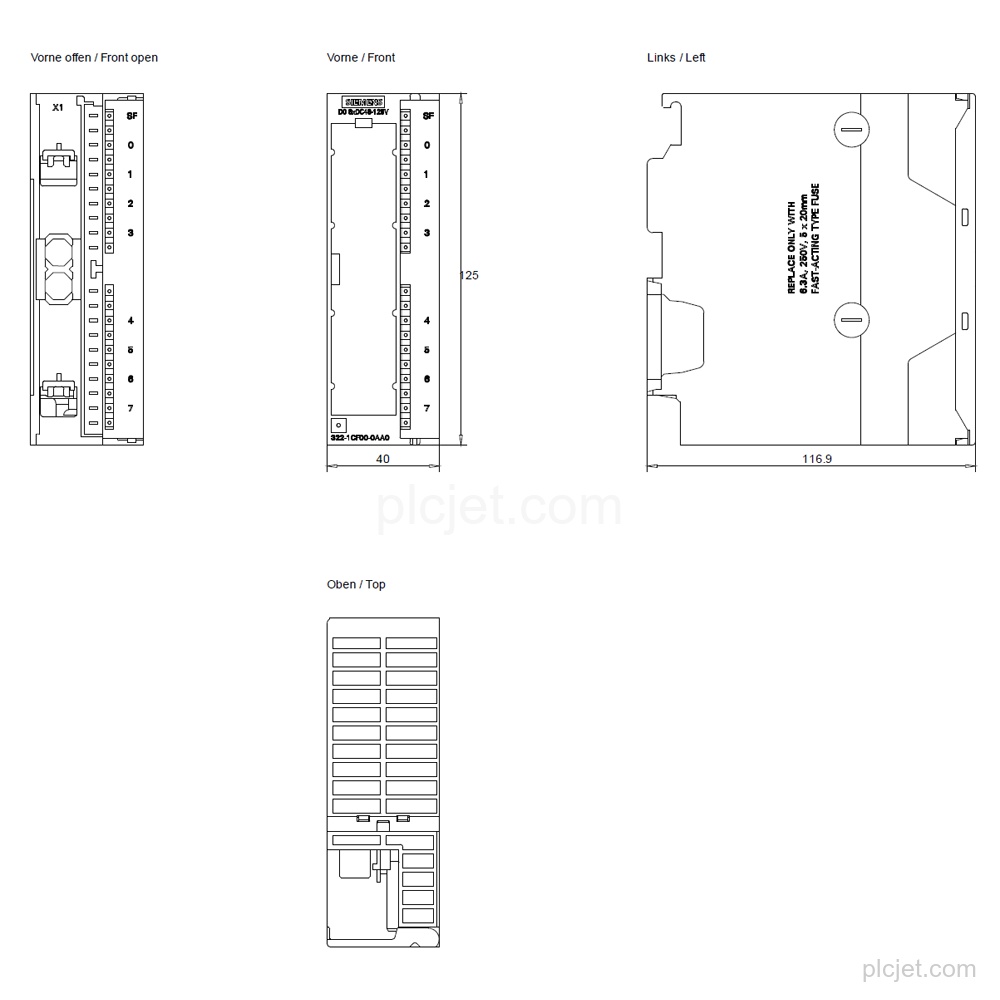

Dimensions: 40 mm width, 125 mm height and 120 mm depth; weight, approx. 250 g.
Product cancellation.
