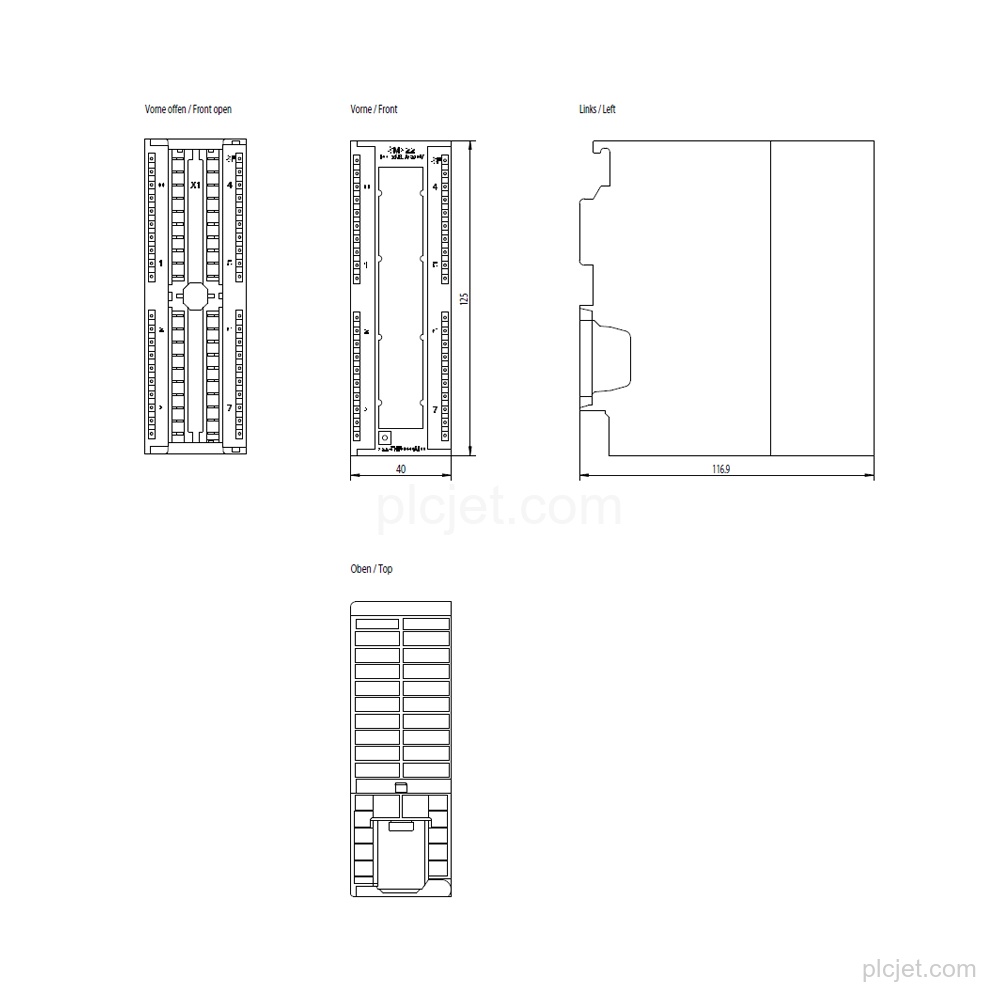

Product Overview
Applications
The outputs support lamp loads up to 1 500 W at 230 V AC.
The digital outputs can control a digital input.
Technical Summary
| Output type | 8 digital relay outputs |
|---|---|
| Load voltage L+ | 24 V DC rated; 24 V to 120 V DC permissible range |
| Load voltage L1 | 230 V AC rated |
| Signal "1" output current | 5 A rated; 10 mA minimum load current |
| Lamp-load switching capacity | 1 500 W; 230 V AC |
| Front connector | 40-pin required |
| Isolation | 1 500 V AC test voltage |
| Product lifecycle | Product cancellation |
Key Features
The module has 8 digital outputs with relays and potential separation between channels.
Load voltage L+ has a rated value of 24 V DC, with a permissible range of 24 V to 120 V DC; load voltage L1 has a rated value of 230 V AC.
The signal "1" output current has a rated value of 5 A and a minimum load current of 10 mA.
Alarms, parameterizable diagnostics, readable diagnostic information, and red Group error SF and green digital output status LEDs are provided.
A 40-pin front connector is required.
Product cancellation.
Frequently Asked Questions
What is the exact configuration of Siemens 6ES7322-5HF00-0AB0?
It is a SIMATIC S7-300 digital output SM 322 module with 8 isolated relay outputs and a required 40-pin front connector.
What supply voltages does this module support?
Load voltage L+ is rated at 24 V DC, with a permissible range of 24 V to 120 V DC. Load voltage L1 is rated at 230 V AC.
What output current is available for signal "1"?
The rated output current is 5 A, with a minimum load current of 10 mA.
Is short-circuit protection included?
No; short-circuit protection must be provided externally.
