Product Overview
Technical Summary
| Digital channel configuration | 8 digital inputs; 8 hard-wired and 8 others individually parameterizable; 8 digital outputs can also be parameterized individually as DI |
|---|---|
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |
| Output current | 0.5 A rated value for signal 1; permissible range 5 mA to 0.6 A |
| Front connector | 20-pin |
| Potential separation | Digital inputs and outputs are separated from the backplane bus by an optocoupler; no separation between channels |
| Lifecycle | Product cancellation |
Key Features
8 isolated digital inputs and 8 DX channels individually parameterizable as DI or DO.
Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V.
Digital output signal 1 current: 0.5 A rated value, with a permissible range of 5 mA to 0.6 A.
Required front connector: 20-pin.
Width: 40 mm; height: 125 mm; depth: 120 mm.
Product cancellation.
Frequently Asked Questions

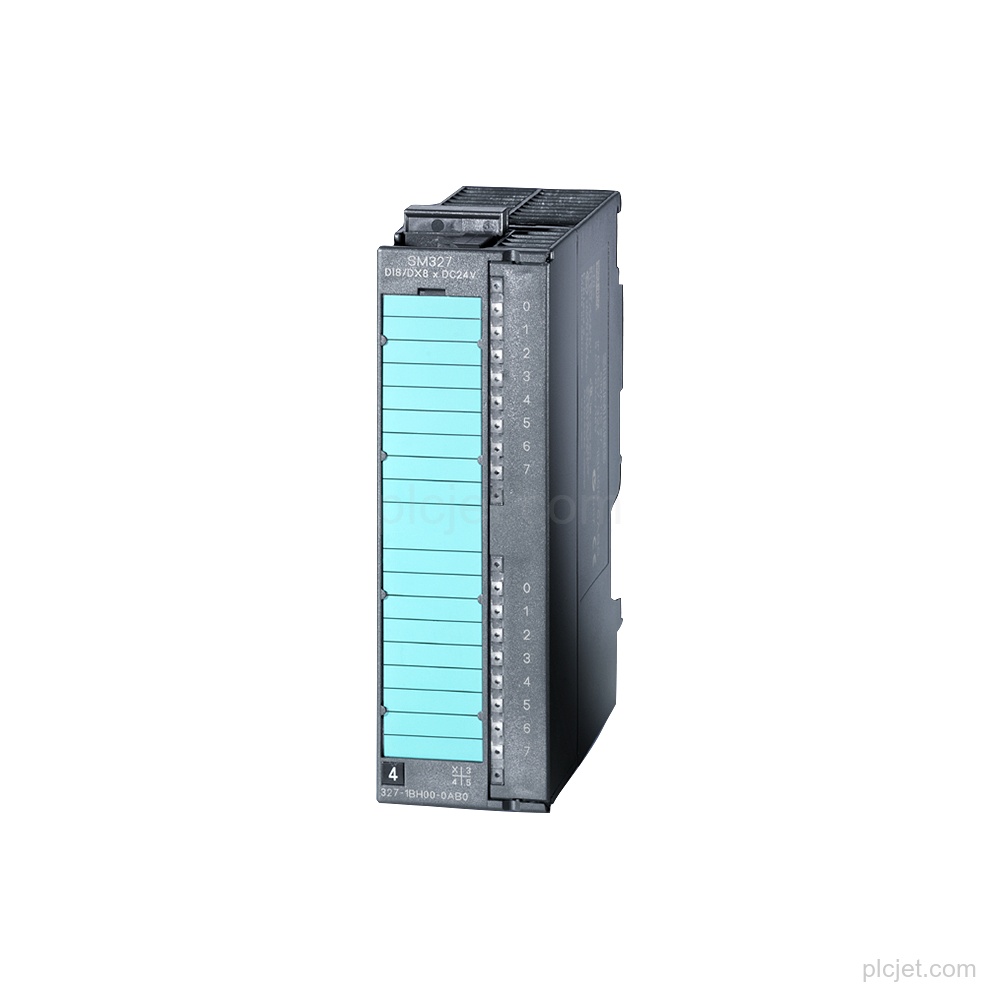

What is the exact configuration of Siemens 6ES7327-1BH00-0AB0?
It is a SIMATIC S7-300 digital module with 8 isolated digital inputs and 8 DX channels that can be individually parameterized as DI or DO.
What supply voltage does this module use?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
What connector is required for this module?
A 20-pin front connector is required.
What output current is supported?
For signal 1, the output current is 0.5 A rated value, with a permissible range of 5 mA to 0.6 A.
What quantity, destination, schedule, and additional BOM lines should be included in an inquiry?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
