Product Overview
Technical Summary
| Product type | SIMATIC S7-300 isolated analog input SM 331 module |
|---|---|
| Analog input capacity | 8 AI |
| Supported voltage ranges | 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | Max. 16 bit with overrange |
| Integration time | Parameterizable: 10/ 16.67/ 20/ 100 ms |
| Backplane bus input current | 5 V DC, max. 130 mA |
| Front connector | 40-pin |
| Lifecycle | Product cancellation |
Key Features
8 analog inputs for voltage and current signals.
Rated ranges include 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
Resolution with overrange is max. 16 bit; parameterizable integration time is 10/ 16.67/ 20/ 100 ms.
Analog inputs are isolated from the backplane bus and isolated between channels in groups of 2; diagnostic and limit value alarms are parameterizable.

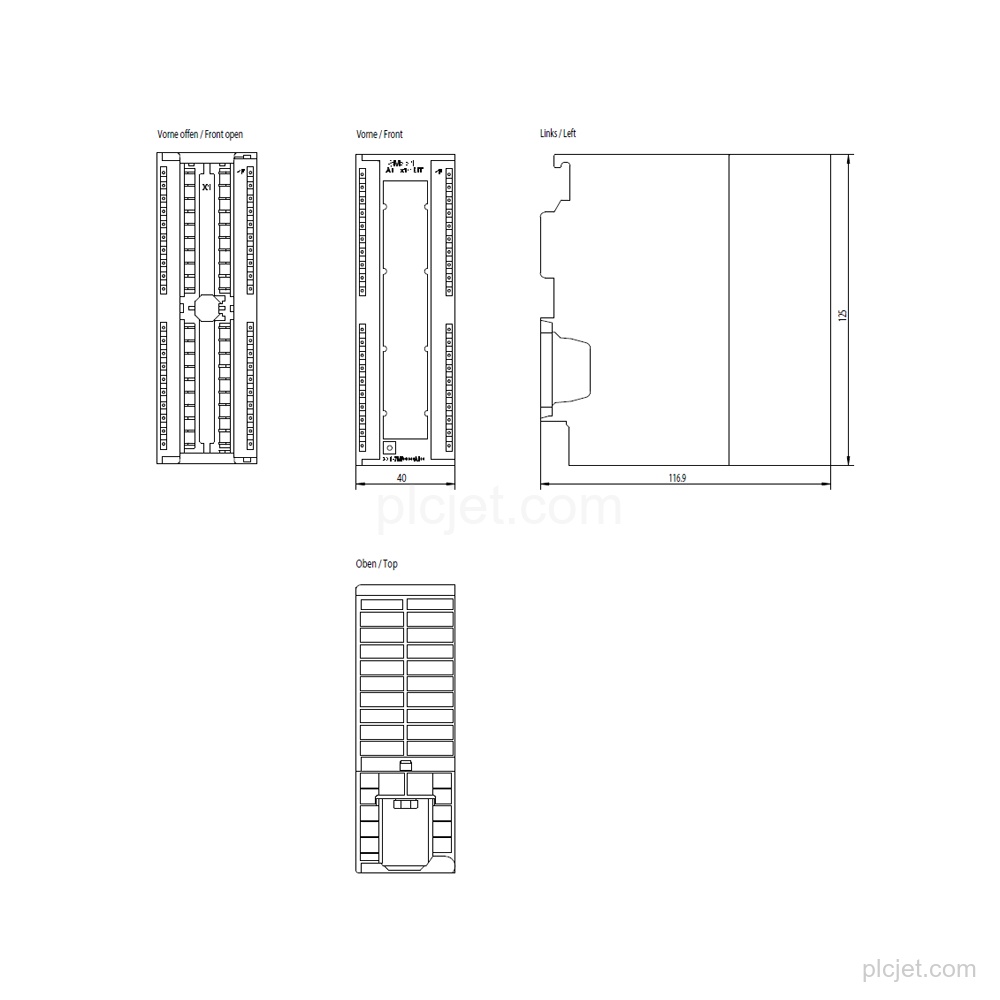

The module requires a 40-pin front connector and measures 40 mm wide, 125 mm high, and 117 mm deep.
This product is a spare part and has product cancellation status.
