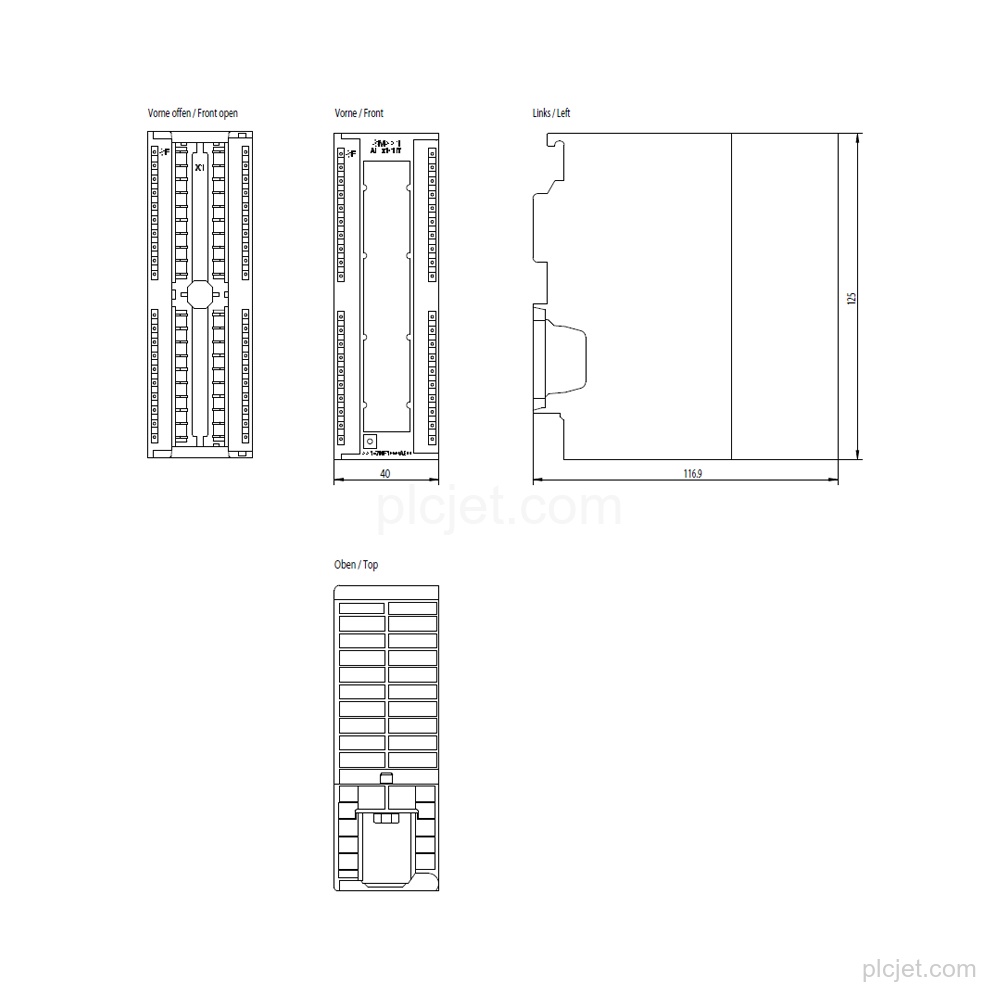

Product Overview
Technical Summary
| Product lifecycle | Product cancellation |
|---|---|
| Analog inputs | 8 |
| Resolution with overrange | 16 bit including sign |
| Basic conversion time | 10 ms (4-channel mode); 95/83/72/23 ms (8-channel mode) |
| Rated load voltage | 24 V DC |
| Required front connector | 40-pin |
| Operational error limit | Voltage and current: 0.1 % relative to input range |
Key Features
8 isolated analog inputs support voltage and current signals.
Voltage ranges include 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V; current ranges include 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
Maximum resolution with overrange is 16 bit including sign. Basic conversion time is 10 ms in 4-channel mode and 95/83/72/23 ms in 8-channel mode.
Rated load voltage is 24 V DC, with reverse polarity protection. The required front connector is 40-pin.
The module has potential separation between channels, between channels and the backplane bus, and between channels and the electronics power supply. Diagnostics and parameterizable diagnostic, limit value, and hardware interrupts are supported.
Frequently Asked Questions
What is the exact product line item?
It is Siemens 6ES7331-7NF10-0AB0, a SIMATIC S7-300 isolated analog input SM 331 module with 8 AI.
Which input signals and ranges does this configuration support?
It supports voltage and current inputs. Supported rated ranges include 1 V to 5 V, -10 V to +10 V, -5 V to +5 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
What connector and cable limit should be retained in the BOM?
The required front connector is 40-pin, and the maximum shielded cable length is 200 m.
What information should accompany a quotation request for this line item?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for review.
