Product Overview
Applications
Data communication, sending and receiving, with supported 3964 (R) and ASCII protocol drivers.
Technical Summary
| Product type | SIMATIC S7-300 CP 340 communications processor |
|---|---|
| Interface | 1 isolated RS 422 / 485 (X.27) interface |
| Transmission rate | 2.4 kbit/s to 19.2 kbit/s |
| Rated supply value | 24 V DC; power supply via backplane bus 5V |
| Maximum input current | 165 mA from backplane bus 5 V DC |
| Supported protocol drivers | 3964 (R), ASCII |
| Configuration package | Included on CD |
| Connector | 15-pin sub D socket |
| Operating ambient temperature | 0 °C to 60 °C |
| Product lifecycle | Product cancellation |
Key Features
SIMATIC S7-300 CP 340 communications processor for data communication, sending and receiving.
1 isolated RS 422 / 485 (X.27) interface with transmission rates from 2.4 kbit/s to 19.2 kbit/s.
Integrated protocol drivers support 3964 (R) and ASCII; RK 512 and customer-specific driver reloading are not supported.
Includes a configuration package on CD.

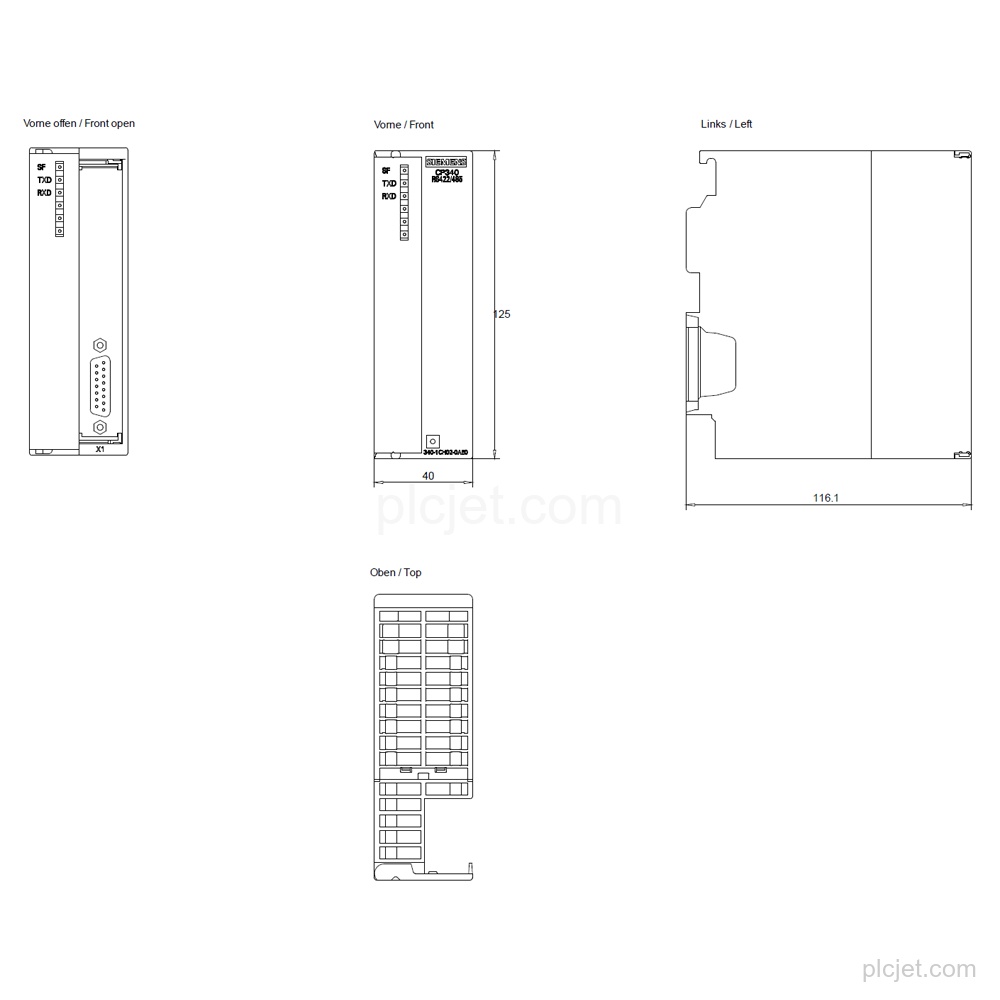

Rated value: 24 V DC; power supply via backplane bus 5V. Dimensions: 40 mm width, 125 mm height, and 120 mm depth.
Product cancellation.
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is 6ES7340-1CH02-0AE0, a SIMATIC S7-300 CP 340 communications processor.
Which interface does 6ES7340-1CH02-0AE0 have?
It has 1 isolated RS 422 / 485 (X.27) interface with a 15-pin sub D socket.
Which protocol drivers are supported?
3964 (R) and ASCII are supported. RK 512 and customer-specific driver reloading are not supported.
What is included with the processor?
A configuration package on CD is included.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
