Product Overview
Applications
Supports serial printers through the RS 232C point-to-point connection.
Technical Summary
| Product | 6ES7341-1AH02-0AE0 |
|---|---|
| Product type | SIMATIC S7-300 CP 341 communications processor |
| Interface | 1 isolated RS 232C (V.24) interface |
| Connector | 9-pin sub D connector |
| Rated supply voltage | 24 V DC |
| Input current | Max. 100 mA from supply voltage L+; max. 70 mA from backplane bus 5 V DC |
| Protocol drivers | 3964 (R), ASCII, RK 512 |
| Transmission rate | 0.3 kbit/s min. to 115.2 kbit/s max. |
| Configuration package | Included on CD |
| Product lifecycle | Product cancellation |
Key Features
SIMATIC S7-300 CP 341 with RS-232C interface and configuration package on CD.
1 isolated RS 232C (V.24) interface with a 9-pin sub D connector.
Rated supply voltage: 24 V DC; input current: max. 100 mA from supply voltage L+ and max. 70 mA from backplane bus 5 V DC.
Integrated protocol drivers: 3964 (R), ASCII, and RK 512.
Transmission rate: 0.3 kbit/s min. to 115.2 kbit/s max.; maximum RS 232 transmission speed is 115.2 kbit/s for the listed protocols and printer driver.

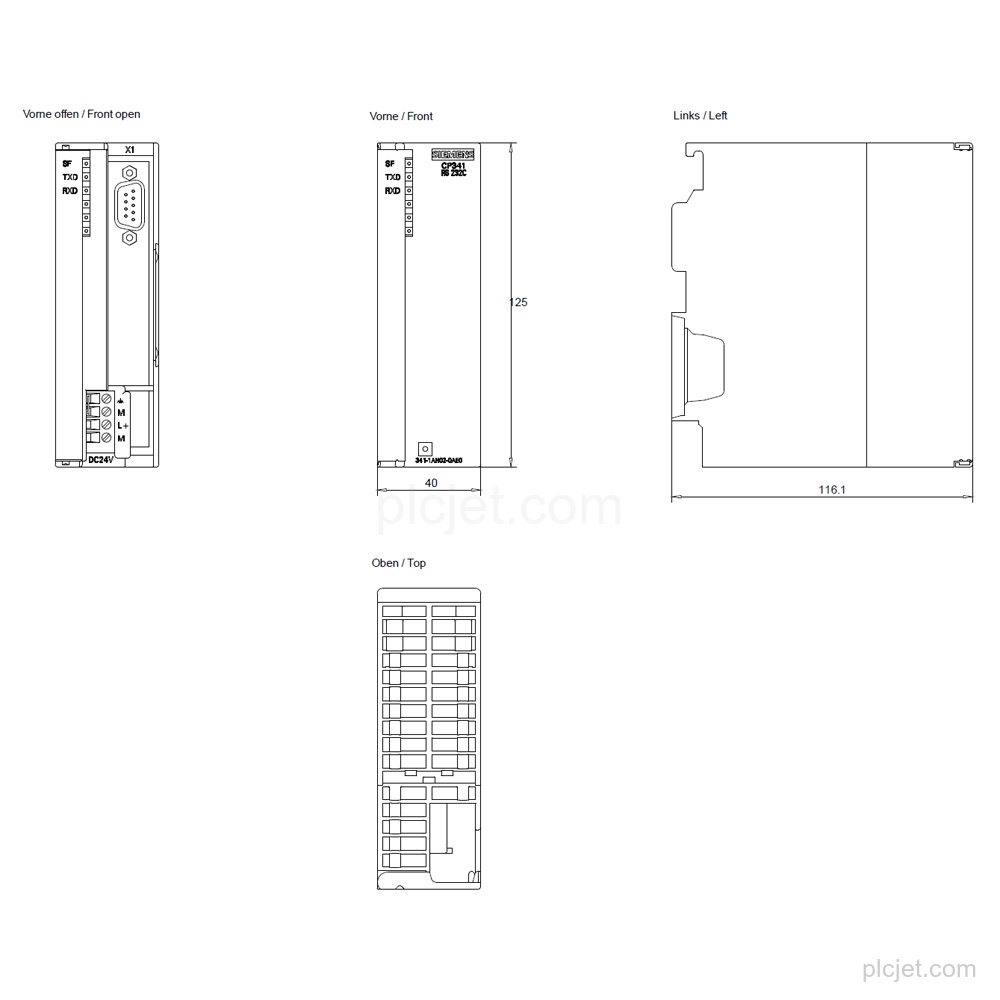

Receive RxD, Transmit TxD, and group error SF (red) LEDs; dimensions: 40 mm width, 125 mm height, and 120 mm depth.
