Product Overview
Applications
The digital inputs support reference point switch functions.
The digital inputs support setting the floating actual value for length measurement.
The digital outputs support cam track functions.
Technical Summary

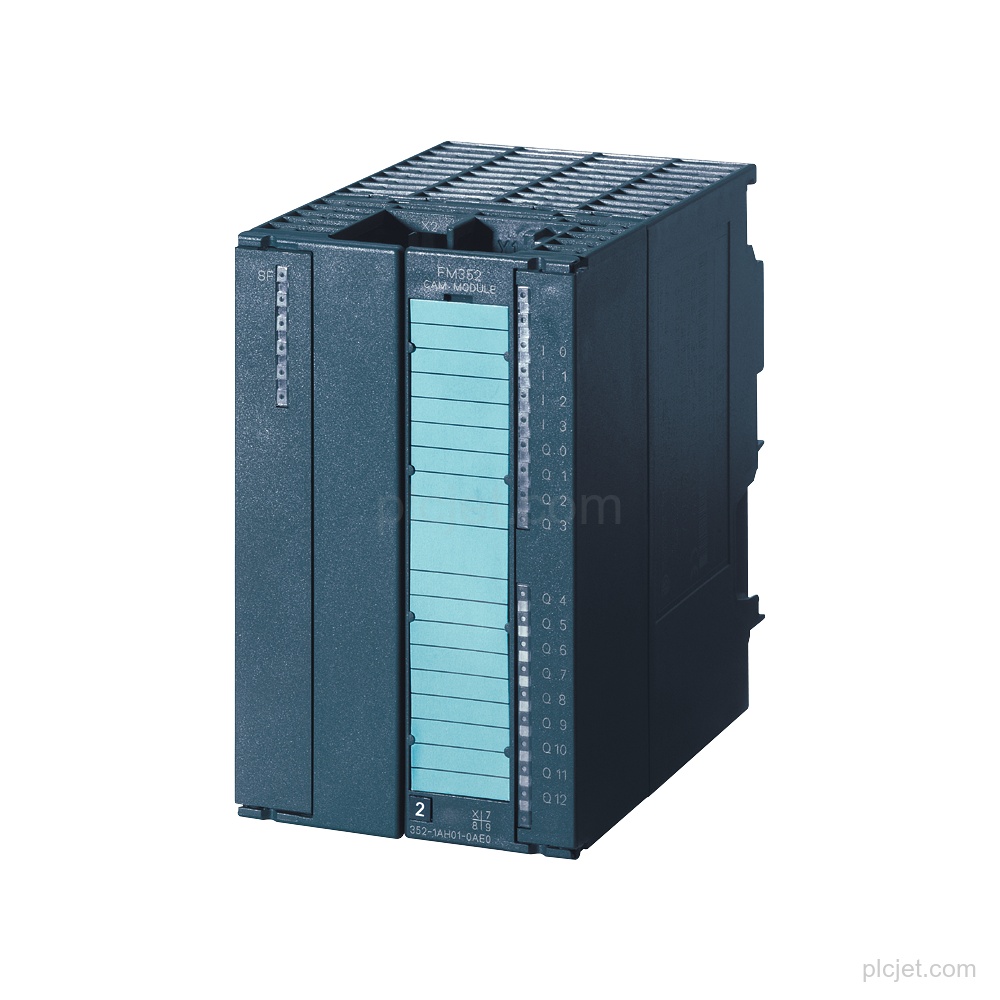

| Product type | SIMATIC S7-300 FM 352 electronic cam controller |
|---|---|
| Rated supply voltage | 24 V DC |
| Digital inputs | 4 |
| Digital outputs | 13 |
| Encoder supply | 5 V and 24 V |
| Supported encoders | Symmetrical and asymmetrical incremental encoders; absolute encoders (SSI); 2-wire sensors |
| Maximum incremental encoder frequency | 1 MHz symmetrical; 50 kHz asymmetrical |
| Required front connector | 1x 20-pin |
| Product lifecycle | Product cancellation |
Key Features
SIMATIC S7-300 FM 352 electronic cam controller with configuration package on CD.
4 digital inputs and 13 digital outputs; digital outputs provide short-circuit protection.
5 V and 24 V encoder supply; maximum output current is 300 mA.
Supports symmetrical and asymmetrical incremental encoders, absolute encoders (SSI), and 2-wire sensors.
Rated supply voltage is 24 V DC; typical power loss is 8.1 W.
Product cancellation.
Frequently Asked Questions
What is the exact product and configuration?
It is Siemens 6ES7352-1AH02-0AE0, a SIMATIC S7-300 FM 352 electronic cam controller with a configuration package on CD.
How many digital inputs and outputs does it have?
It has 4 digital inputs and 13 digital outputs. The digital outputs have short-circuit protection.
Which encoders can be connected?
It supports symmetrical and asymmetrical incremental encoders, absolute encoders (SSI), and 2-wire sensors.
What front connector is required?
The required front connector is 1x 20-pin.
