Product Overview
Applications
Used for high-speed linking with Boolean processing.
Technical Summary

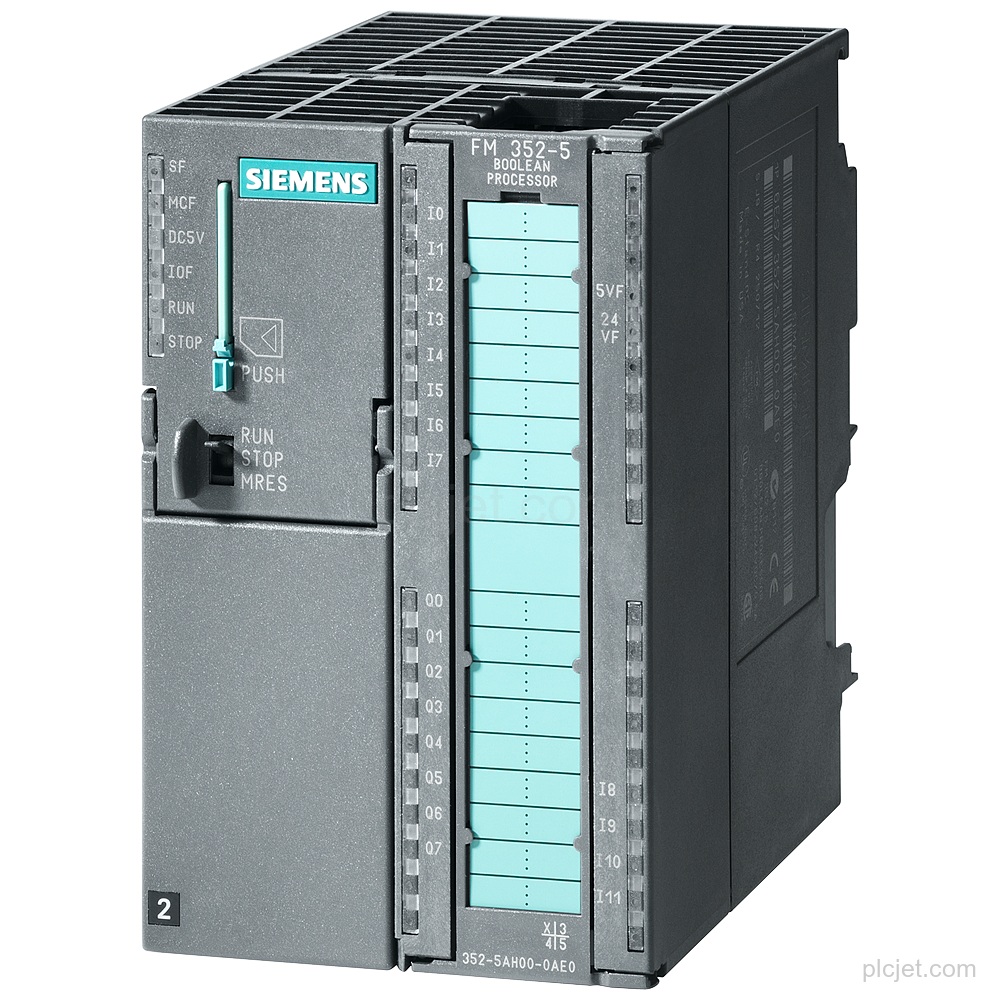

| Product type | FM352-5 high-speed Boolean processor |
|---|---|
| Function | High-speed linking |
| Digital inputs | 8; standard and up to 12 with 24 V DC encoder inputs as digital inputs |
| Digital outputs | 8; current-sinking |
| Encoder interface | Incremental encoder (symmetrical), incremental encoder (asymmetrical), and absolute encoder (SSI) |
| Load voltage L+ | 24 V DC rated; 20.4 V to 28.8 V DC permissible range |
| Input frequency | 200 kHz max. |
| Symmetrical incremental encoder input frequency | 500 kHz max. |
| SSI clock frequency | 1 MHz max. |
| Front connector | 1x 40-pin |
| Product lifecycle | Product cancellation |
Key Features
High-speed Boolean processor for high-speed linking.
8 digital inputs and 8 digital outputs; digital inputs are standard and can reach 12 with 24 V DC encoder inputs used as digital inputs.
Supports symmetrical and asymmetrical incremental encoders, absolute SSI encoders, and 2-wire sensors.
Load voltage L+ rated value: 24 V DC; permissible range: 20.4 V to 28.8 V DC; reverse polarity protection: Yes.
Input frequency: max. 200 kHz; symmetrical incremental encoder input frequency: max. 500 kHz.

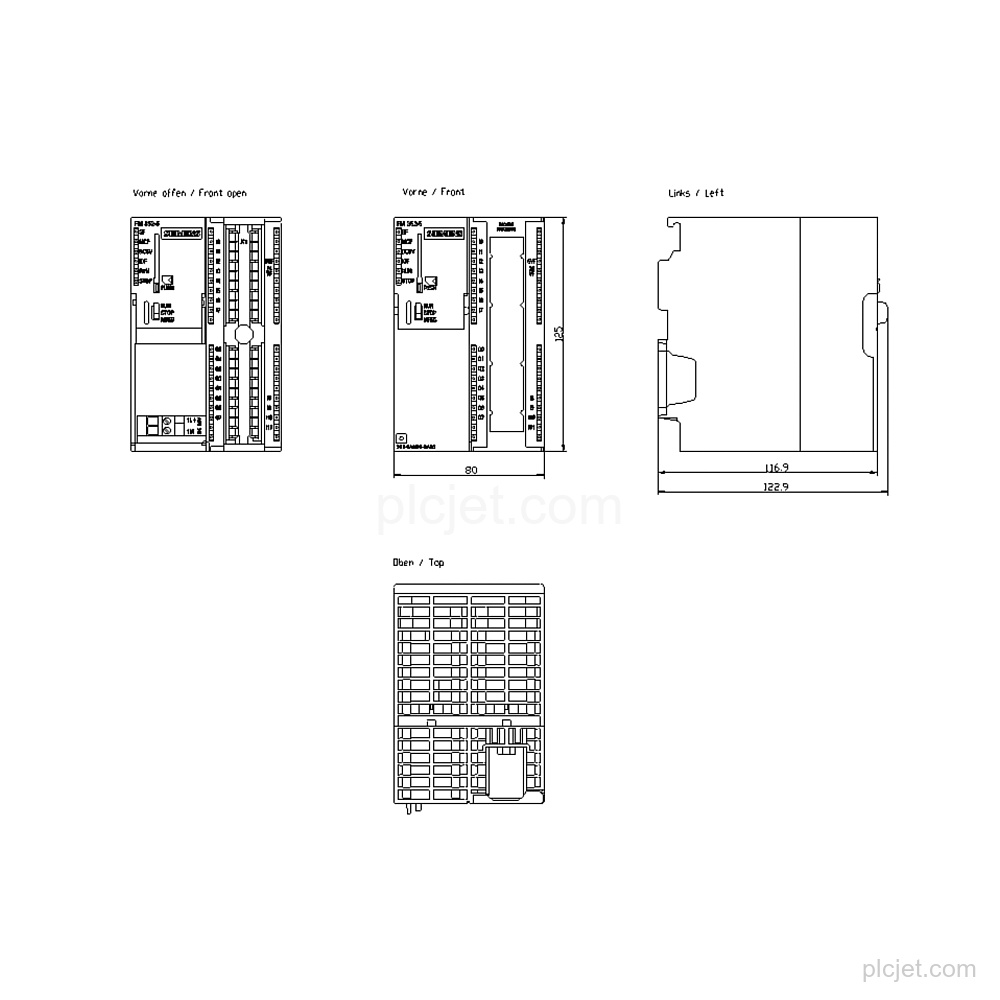

Required front connector: 1x 40-pin. Dimensions: 80 mm width, 125 mm height, and 120 mm depth.
