Product Overview
Applications
Extension rack connection
Connects an extension rack in a SIMATIC S7-300 configuration.
Technical Summary
| Product | 6ES7365-0BA01-0AA0 |
|---|---|
| Family | SIMATIC S7-300 IM 365 |
| Function | Connection for an extension rack |
| Configuration | 2 modules with 1 m connecting cable |
| Communications bus | Without communications bus |
| Backplane bus input current | 100 mA maximum from 5 V DC |
| Power loss | 0.5 W typical |
Key Features
Extension rack connection
IM 365 connection for connecting an extension rack.
Supplied configuration
Includes 2 modules and a 1 m connecting cable.
Communications bus
Without communications bus.
Backplane bus input current
100 mA maximum from the 5 V DC backplane bus.

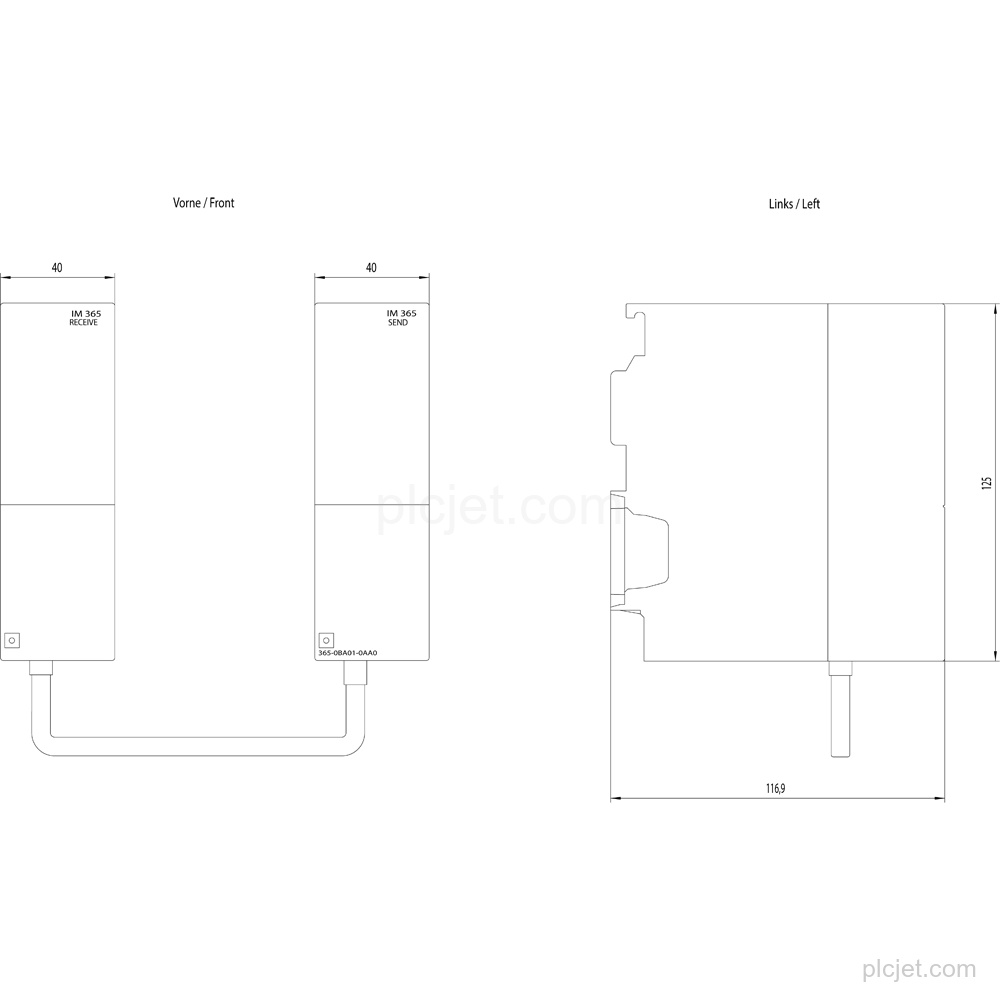

Dimensions and weight
40 mm width, 125 mm height, 120 mm depth, and approximately 580 g.
Power loss
Typical power loss: 0.5 W.
Frequently Asked Questions
What is Siemens 6ES7365-0BA01-0AA0?
It is a SIMATIC S7-300 IM 365 connection for an extension rack.
What does the configuration include?
The configuration includes 2 modules and a 1 m connecting cable.
Does this line item include a communications bus?
It is without a communications bus.
What input current does it draw from the backplane bus?
The input current is 100 mA maximum from the 5 V DC backplane bus.
