Product Overview
Technical Summary
| Product type | Front connector for SIMATIC S7-300 signal modules, 20-pole |
|---|---|
| Connection method | Screw terminals |
| Cable cross-section | 0.25 mm2 to 1.5 mm2 for defined flexible and massive cable types |
| Operating ambient temperature | 0 °C to 60 °C |
| Storage/transport ambient temperature | -40 °C to 70 °C |
| Tightening torque | 0.4 N·m to 0.7 N·m |
| Lifecycle | Product cancellation |
Key Features

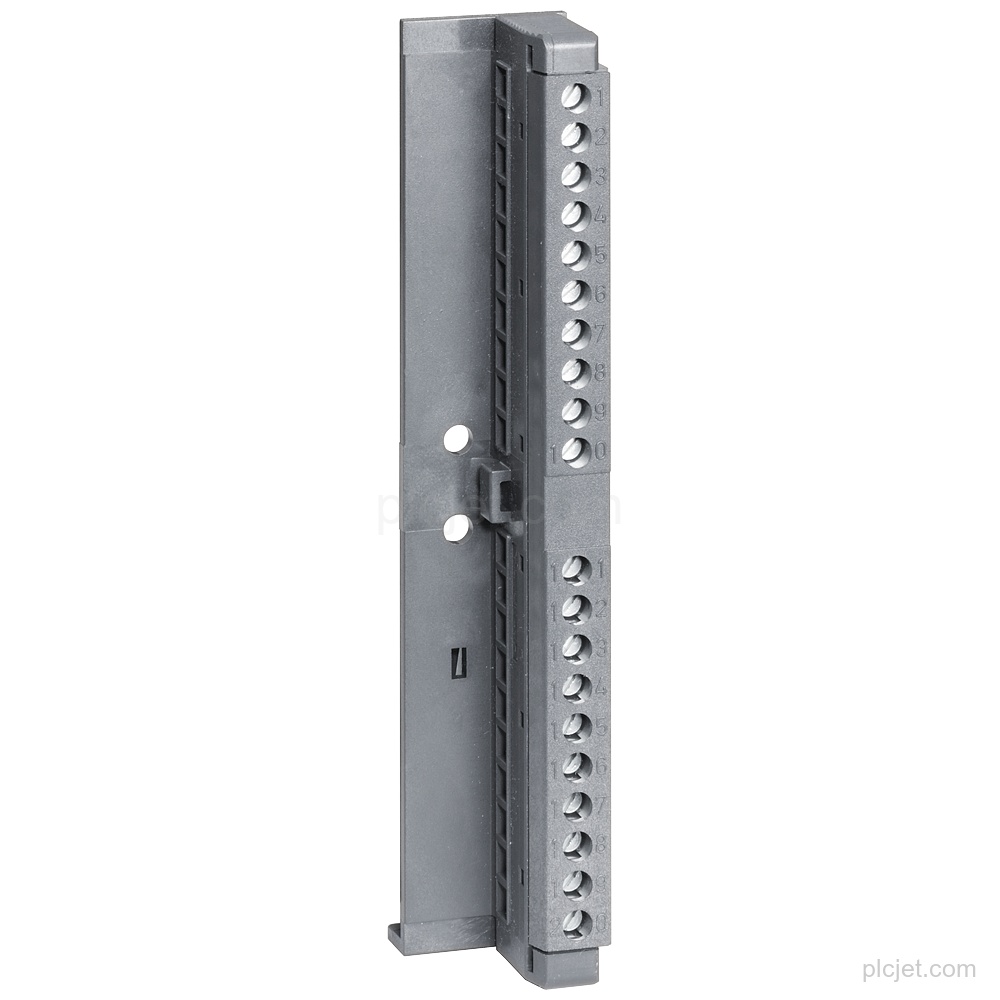

Front connector for SIMATIC S7-300 signal modules with screw connections, 20-pole.
Screw terminals; 1 line per connection, or a combination of 2 conductors up to 1.5 mm2 total in a shared ferrule.
Connectable flexible and massive cable cross-sections: 0.25 mm2 to 1.5 mm2 where the source defines the range.

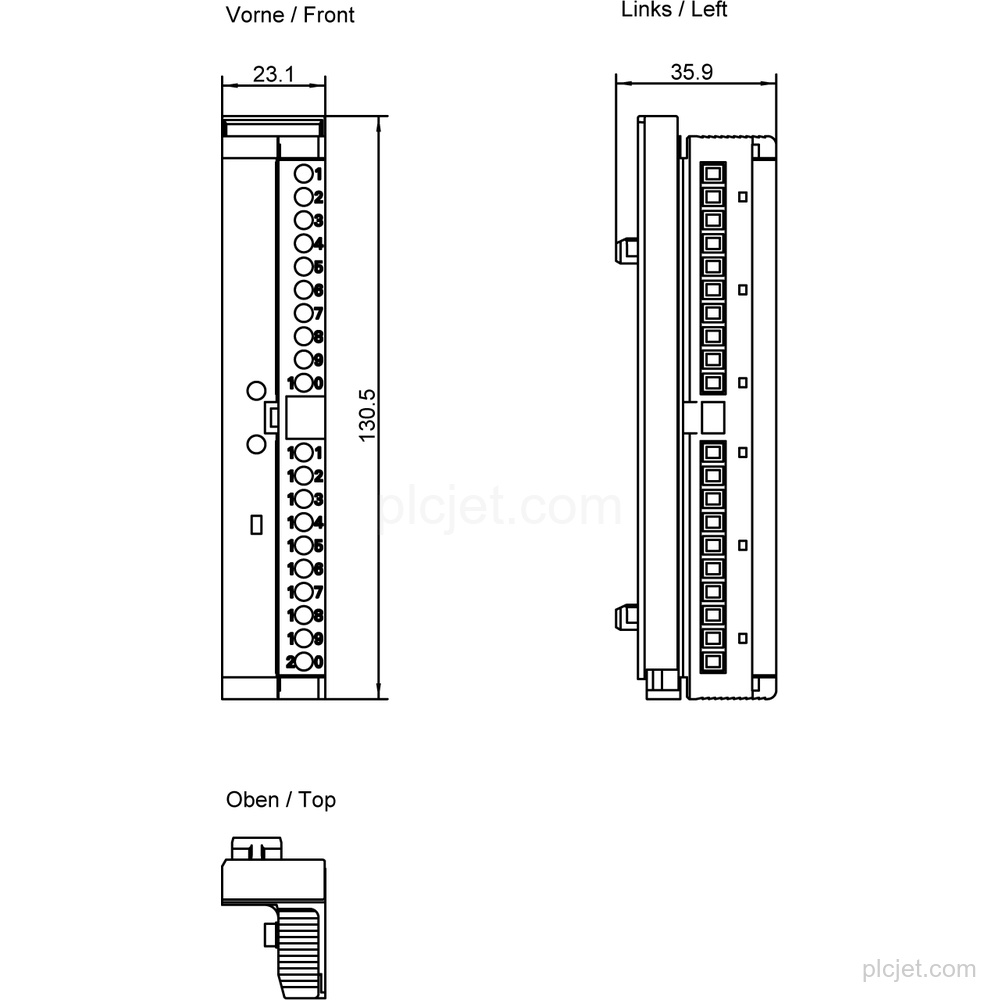

Width: 23 mm; height: 131 mm; depth: 36 mm.
Tightening torque: 0.4 N·m to 0.7 N·m.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6ES7392-1AJ00-0AA0?
It is a 20-pole SIMATIC S7-300 front connector for signal modules with screw connections.
How does this front connector connect I/O signals?
It uses screw terminals, with 1 line per connection or a combination of 2 conductors up to 1.5 mm2 total in a shared ferrule.
What are the mounting dimensions and tightening torque?
Dimensions are 23 mm wide, 131 mm high, and 36 mm deep. Tightening torque is 0.4 N·m to 0.7 N·m.
