Product Overview
Technical Summary
| Product type | Front connector |
|---|---|
| Belongs to product | S7-300 |
| Connection method | Spring terminals |
| Number of poles | 20 |
| Number of lines per connection | 1; or combination of 2 conductors of up to 1.5 mm2 (total) in a shared ferrule |
| Flexible cable cross-section without end sleeve | 0.25 mm2 to 1.5 mm2 |
| Flexible cable cross-section with end sleeve | 0.25 mm2 to 1.5 mm2 |
| Operating ambient temperature | 0 °C to 60 °C |
| Storage/transportation ambient temperature | -40 °C to 70 °C |
Key Features

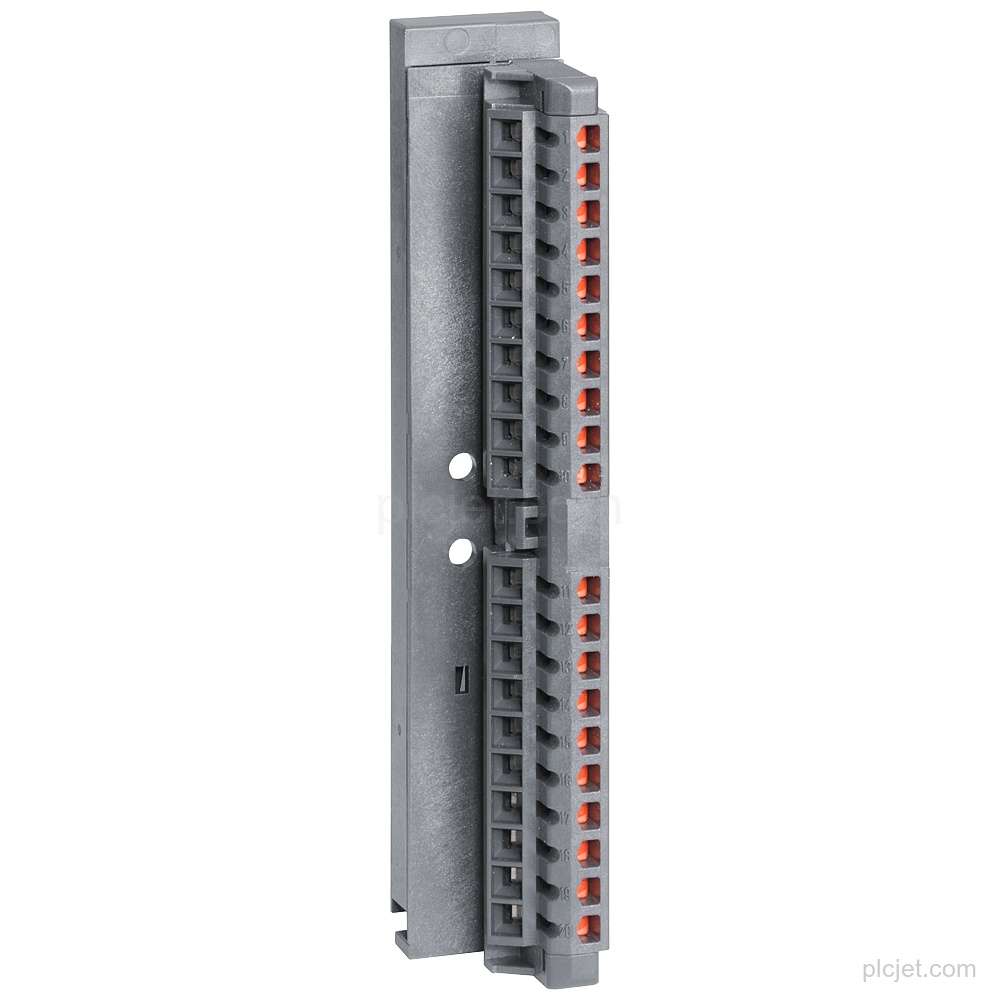

Front connector for SIMATIC S7-300 signal modules with spring-loaded contacts and 20 poles.
Spring terminals with 1 line per connection, or a combination of 2 conductors up to 1.5 mm2 total in a shared ferrule.
Connectable cable cross-sections are 0.25 mm2 to 1.5 mm2 for flexible cables without or with end sleeve; solid cables are 0.25 mm2 and 1.5 mm2.
Ambient temperature during operation: 0 °C to 60 °C.
Ambient temperature during storage/transportation: -40 °C to 70 °C.

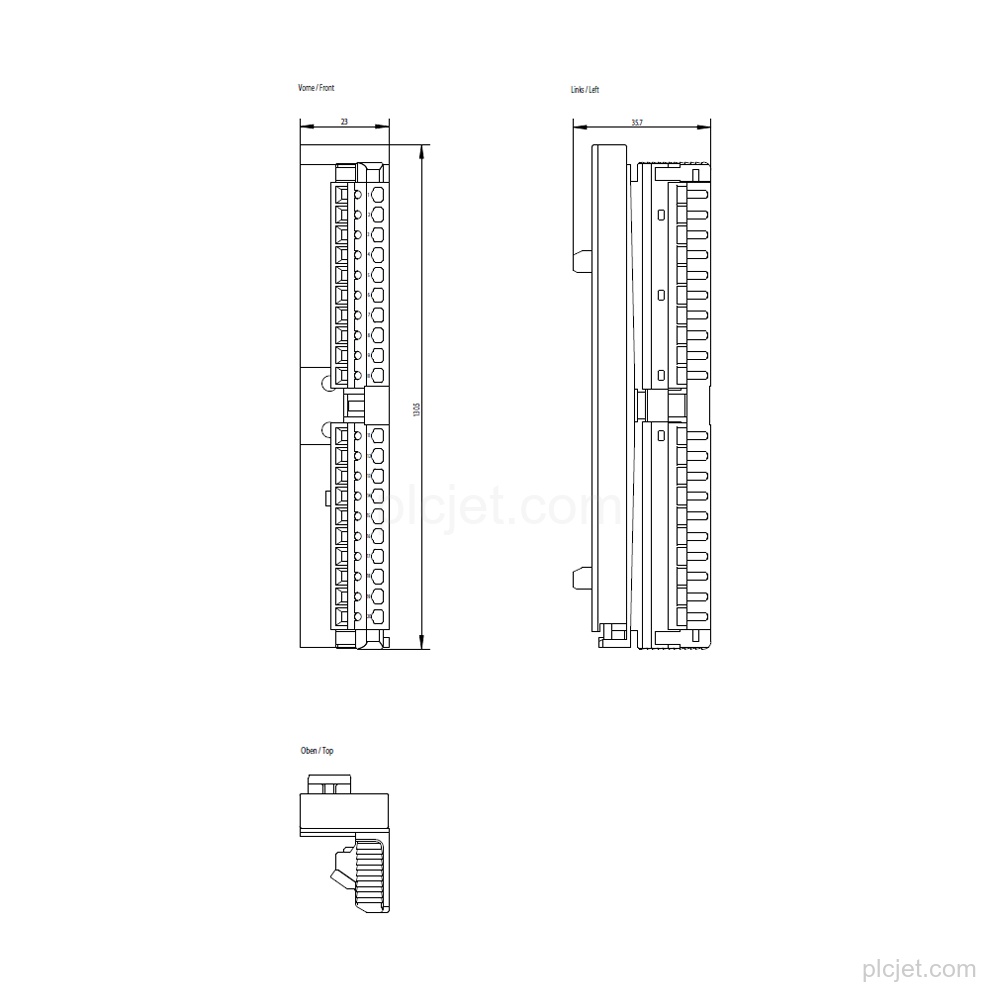

Dimensions: 23 mm width, 131 mm height, and 36 mm depth; weight, approx. 61 g.
Frequently Asked Questions
What is the exact product type of 6ES7392-1BJ00-0AA0?
It is a Siemens SIMATIC S7-300 front connector for signal modules with spring-loaded contacts and 20 poles.
Which connection method does the front connector use?
It uses spring terminals, with 1 line per connection or a combination of 2 conductors up to 1.5 mm2 total in a shared ferrule.
What cable cross-sections can be connected?
Flexible cables without or with end sleeve support 0.25 mm2 to 1.5 mm2. Solid cables support 0.25 mm2 and 1.5 mm2.
What are the dimensions and weight?
The dimensions are 23 mm width, 131 mm height, and 36 mm depth. Weight is approx. 61 g; collected net weight is 0.060 kg.
