Product Overview
Technical Summary
| Product type | CPU 1511F-1 PN |
|---|---|
| Program work memory | 225 kbyte |
| Data work memory | 1 Mbyte |
| PROFINET interfaces | 1; PROFINET IRT with 2-port switch |
| Bit performance | 60 ns |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| SIMATIC Memory Card | Required; 1 slot |
| Product lifecycle | Product cancellation |
Key Features

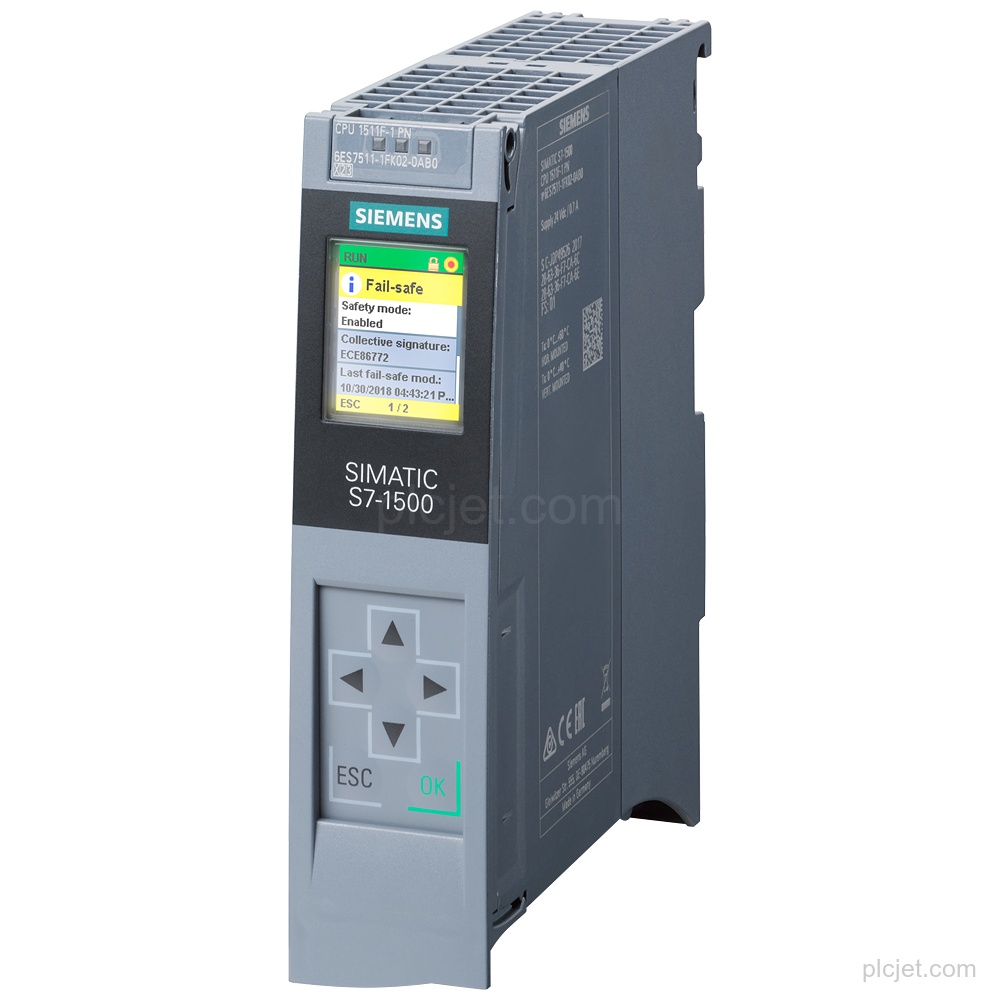

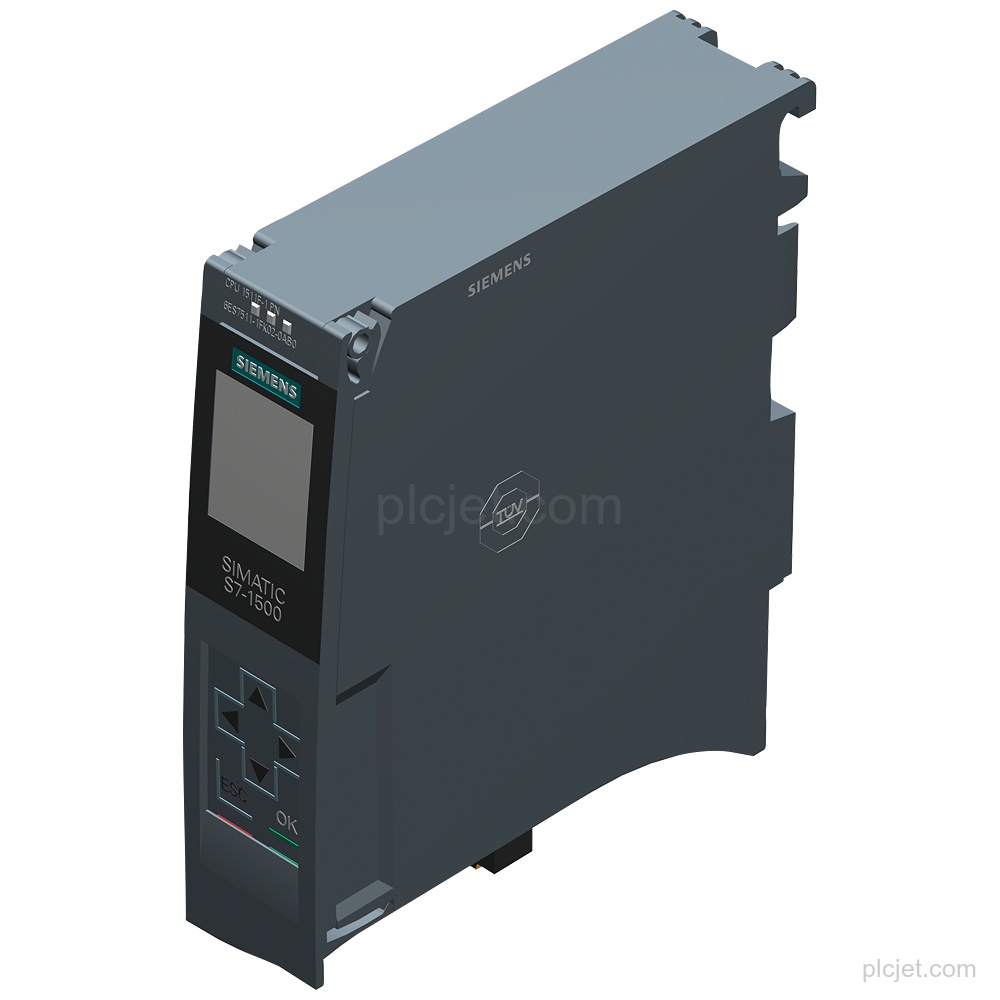

CPU 1511F-1 PN with SIMATIC S7-1500F fail-safe functionality.
Integrated work memory: 225 kbyte for the program and 1 Mbyte for data.
1 PROFINET IRT interface with a 2-port switch and 60 ns bit performance.
Rated DC supply voltage: 24 V; permissible range: 19.2 V to 28.8 V, with reverse polarity protection.
1 slot is provided, and a SIMATIC Memory Card is required.
Product cancellation.
Frequently Asked Questions
What is the exact product type of 6ES7511-1FK02-0AB0?
It is a CPU 1511F-1 PN central processing unit in the SIMATIC S7-1500F family.
What work memory does this CPU have?
It has 225 kbyte of integrated program work memory and 1 Mbyte of integrated data work memory.
Which interface and switch configuration does it provide?
It has 1 PROFINET IRT interface with an integrated 2-port switch and 60 ns bit performance.
What supply voltage range is supported?
The rated DC supply voltage is 24 V, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
What should I include when requesting this line item?
Include the exact order number, requested quantity, destination, schedule context, and any additional BOM lines.
