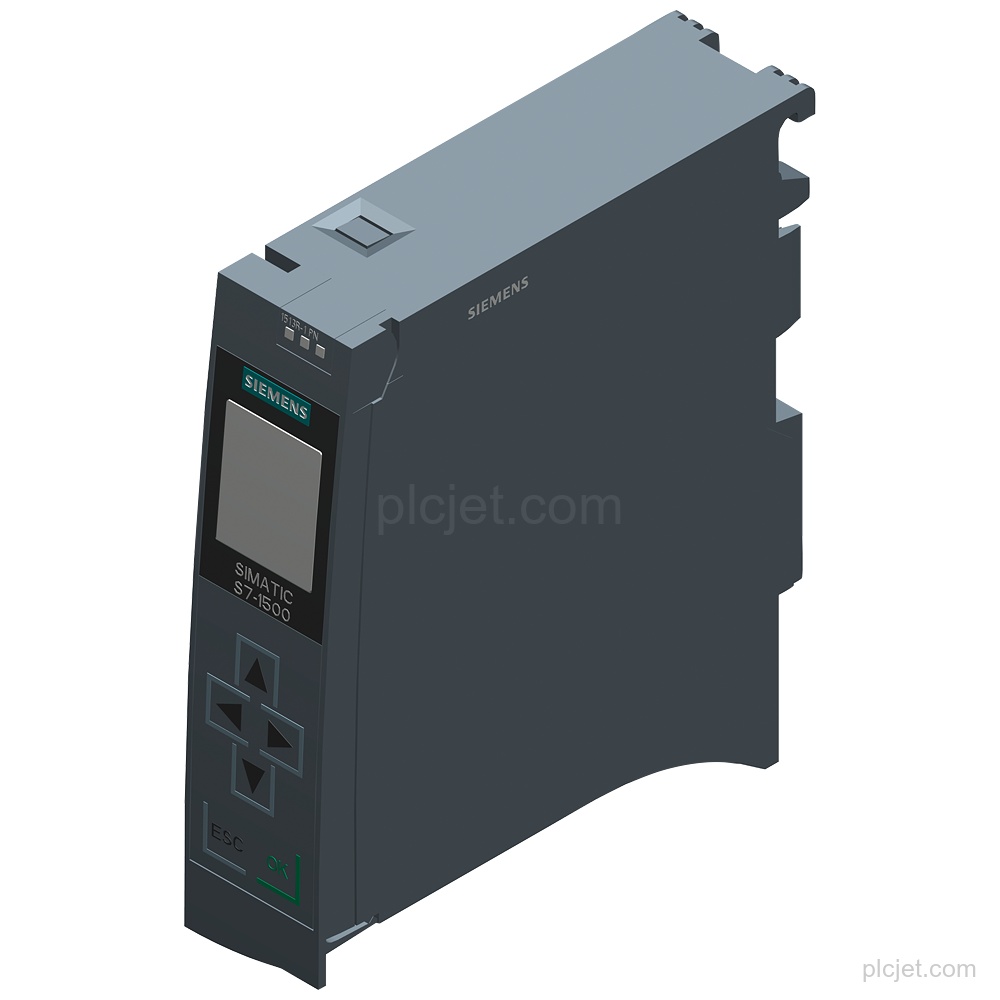

Product Overview
Applications
PID_Compact, PID_3Step, and PID-Temp controllers are supported, including integrated optimization.
The CPU supports counting and measuring.
Program alarms and system diagnostics alarms are supported.
Technical Summary
| Product type | CPU 1513R-1 PN |
|---|---|
| Program work memory | 300 kbyte |
| Data work memory | 1.5 Mbyte |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| PROFINET interface | 1; RJ 45 X1; 2 ports; integrated switch |
| PROFINET IO Controller | Yes; up to 64 connectable IO Devices |
| SIMATIC Memory Card | Required; 1 slot; plug-in load memory up to 32 Gbyte |
| Firmware version | V2.9 |
| Product lifecycle | Product cancellation |
Key Features
300 kbyte integrated work memory for the program and 1.5 Mbyte for data; typical processing times are 80 ns for bit operations, 96 ns for word operations, 128 ns for fixed point arithmetic, and 512 ns for floating point arithmetic.

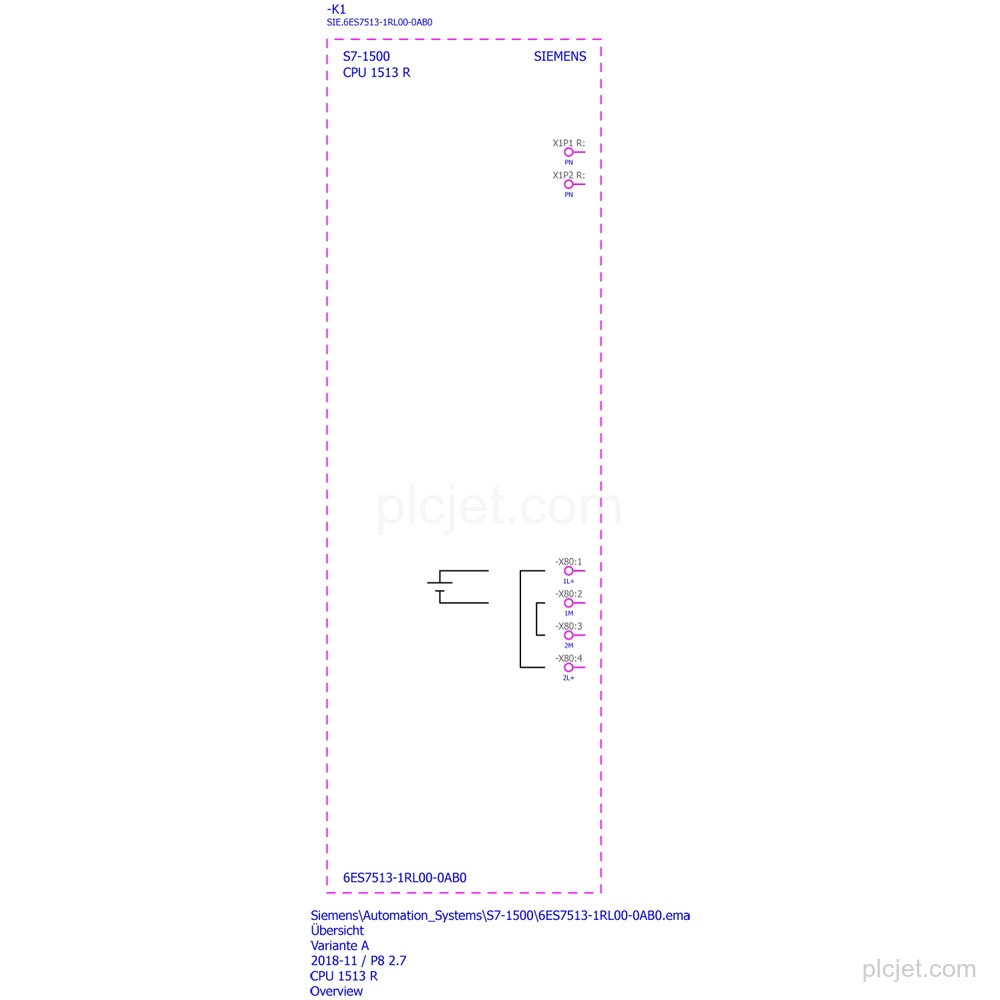

1 PROFINET interface with RJ 45 connection X1, 2 ports, integrated switch, PROFINET IO Controller, and up to 64 connectable IO Devices.
Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC; reverse polarity protection: Yes.
1 SIMATIC Memory Card slot; SIMATIC Memory Card required. STEP 7 TIA Portal is configurable/integrated from V17 with FW V2.9, V16 with FW V2.8, and V15.1 with FW V2.6.

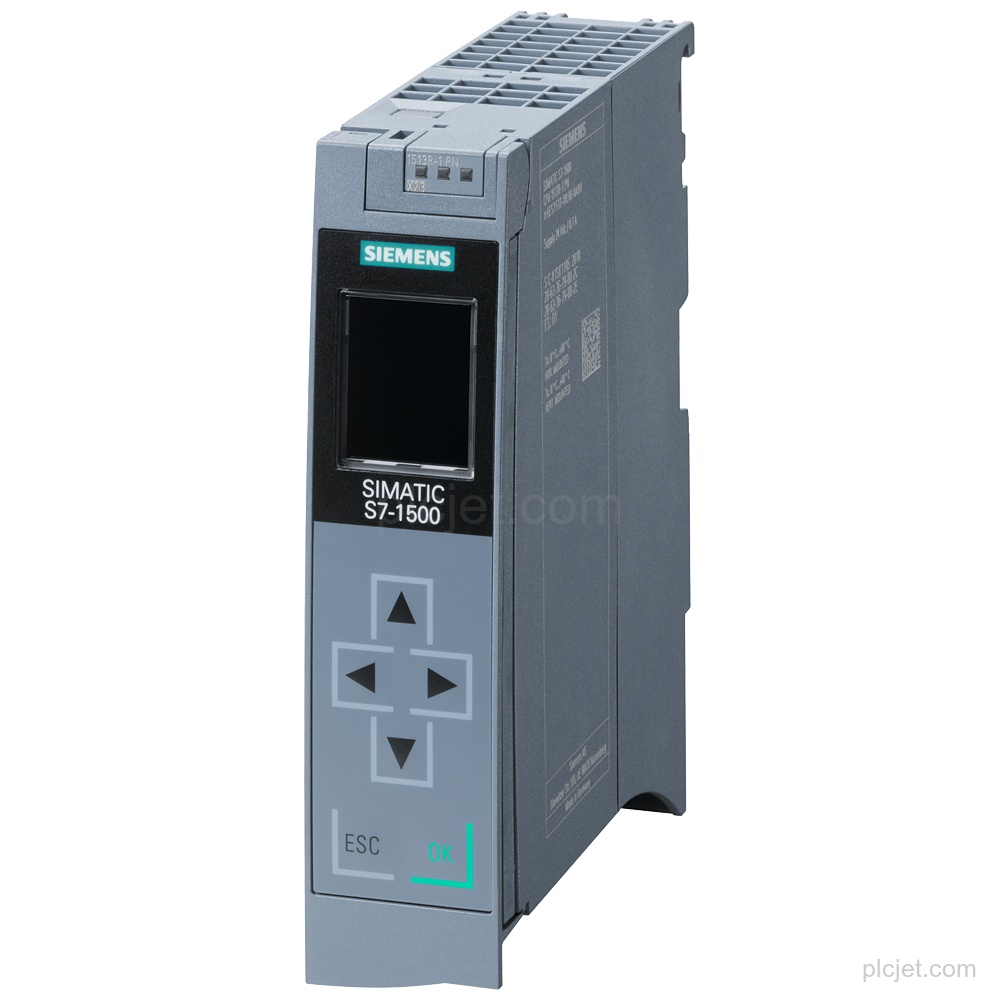

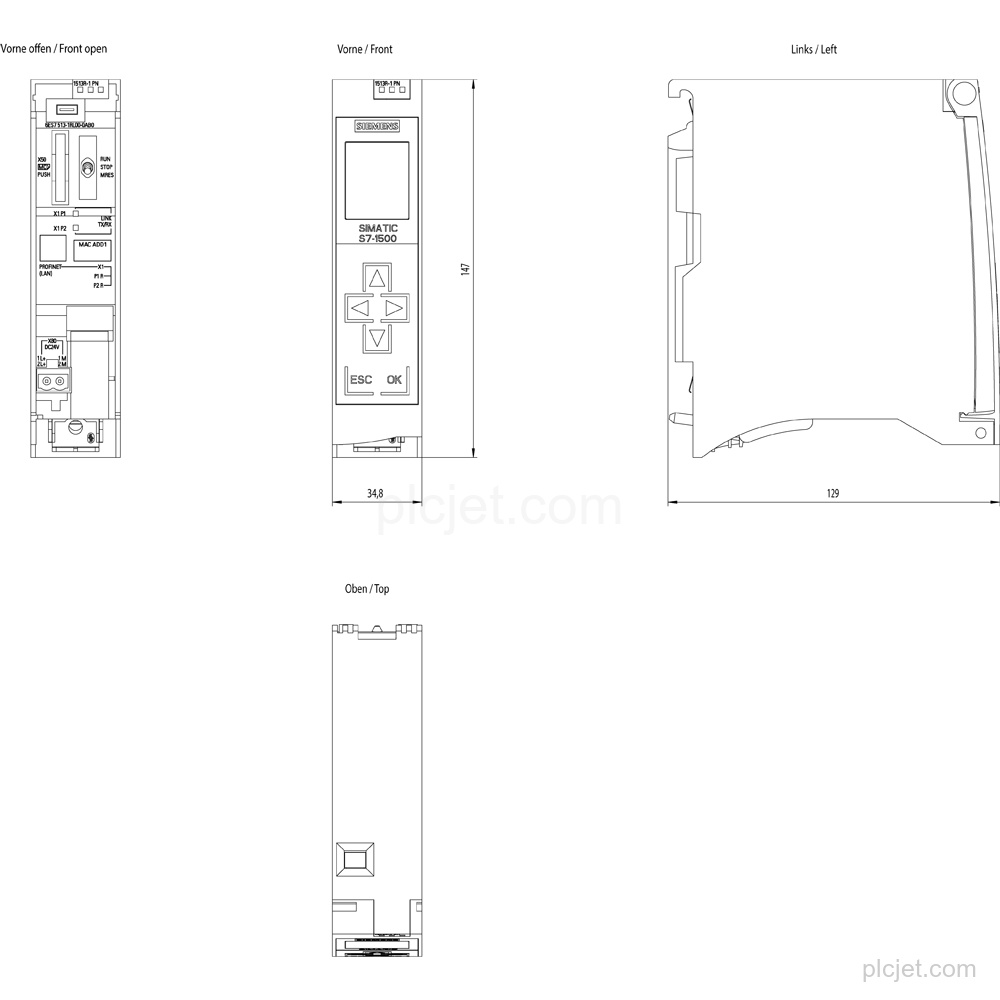

Dimensions: 35 mm width, 147 mm height, and 129 mm depth. Weight: approximately 430 g.
Product cancellation.
Frequently Asked Questions
What exact product is 6ES7513-1RL00-0AB0?
It is a SIMATIC S7-1500R CPU 1513R-1 PN central processing unit.
What memory does this CPU have?
It has 300 kbyte integrated work memory for the program and 1.5 Mbyte for data. A SIMATIC Memory Card is required, with plug-in load memory up to 32 Gbyte.
What PROFINET connection does it provide?
It has 1 PROFINET interface with RJ 45 connection X1, 2 ports, an integrated switch, and PROFINET IO Controller support for up to 64 connectable IO Devices.
What supply voltage is required?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
