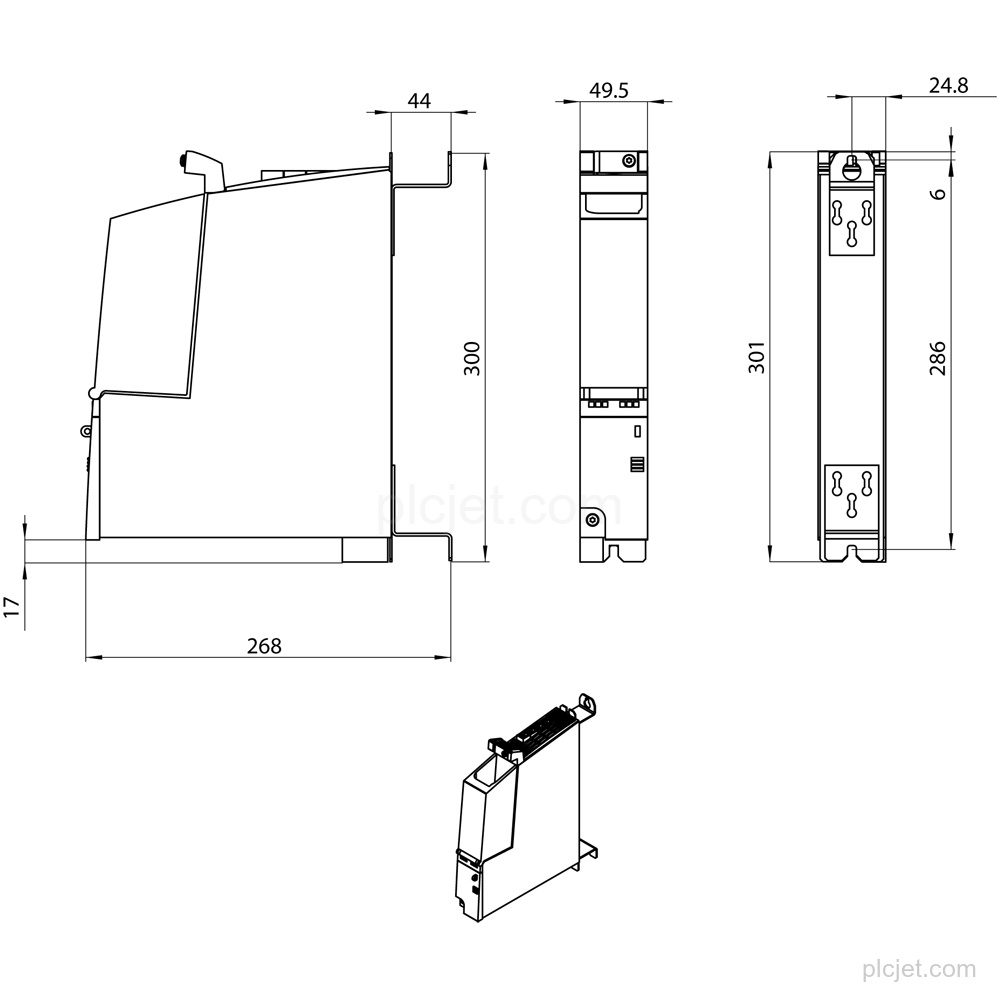

Product Overview
Technical Summary
| Product type | CPU 1507D TF |
|---|---|
| Integrated drive basis | SINAMICS S120 CU320-2; functional subset compared to CU320-2: no free function blocks, …; for details, see the manual |
| Maximum servo-control axes | 6 |
| Maximum vector-control axes | 6 |
| Maximum V/f-control axes | 12 |
| Digital inputs | 28 integrated channels; maximum depends on parameterization |
| Digital outputs | 16 integrated channels; maximum depends on parameterization |
| PROFINET interfaces | 3 |
| PROFIBUS interfaces | 1 |
| DRIVE-CLiQ interfaces | 4; 24 V / 450 mA per interface for connecting encoders/measuring systems |
| Rated supply voltage | 24 V DC |
| SIMATIC Memory Card | Required; plug-in load memory 12 Mbyte, maximum 32 Gbyte |
Key Features
Supports up to 6 axes for servo control, 6 axes for vector control, or 12 axes for V/f control; these are alternative control modes.
Has 28 integrated digital input channels and 16 integrated digital output channels, depending on parameterization.

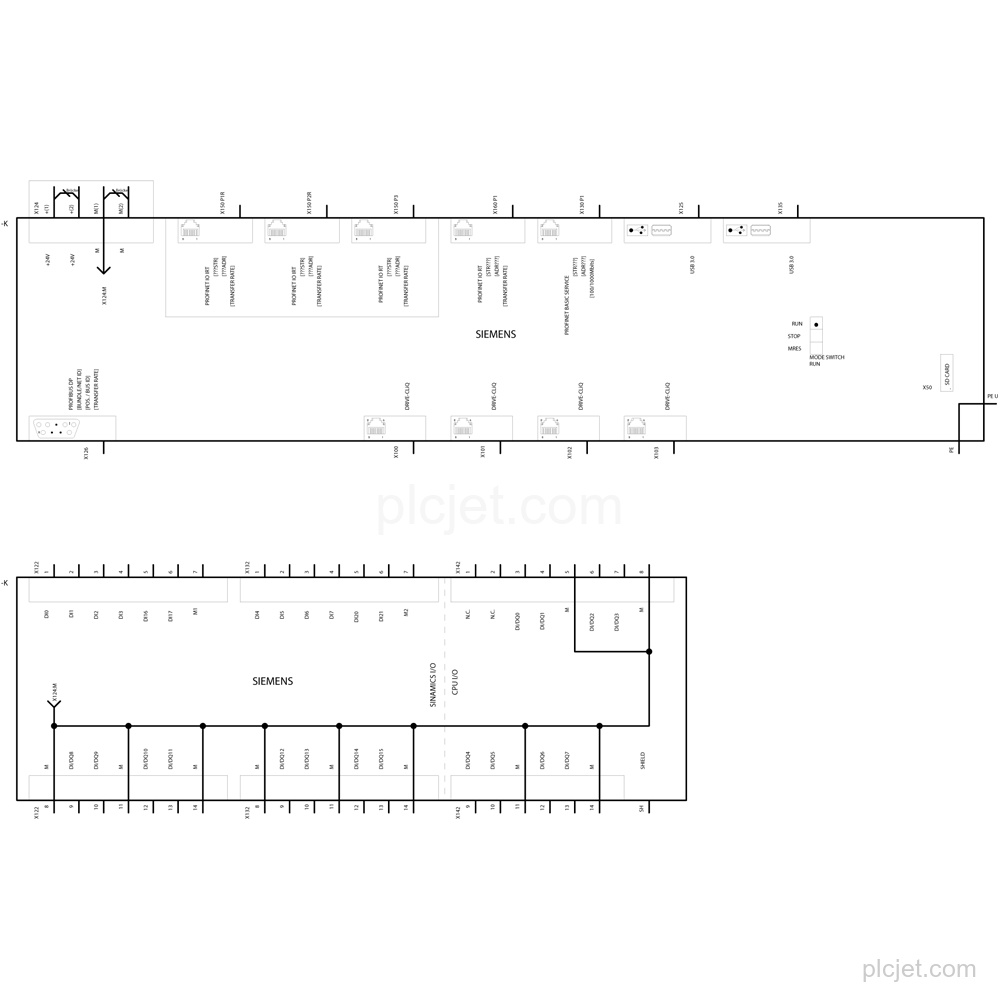

Provides 4 DRIVE-CLiQ interfaces, 3 PROFINET interfaces, 1 PROFIBUS interface and 2 USB 3.0 interfaces without function; no USB connection is permissible.
Rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC and reverse polarity protection.
A SIMATIC Memory Card is required. Plug-in load memory is 12 Mbyte, with a maximum of 32 Gbyte.
Lifecycle status: Active Product.
Frequently Asked Questions
What is the exact product type of 6ES7615-7DF10-0AB0?

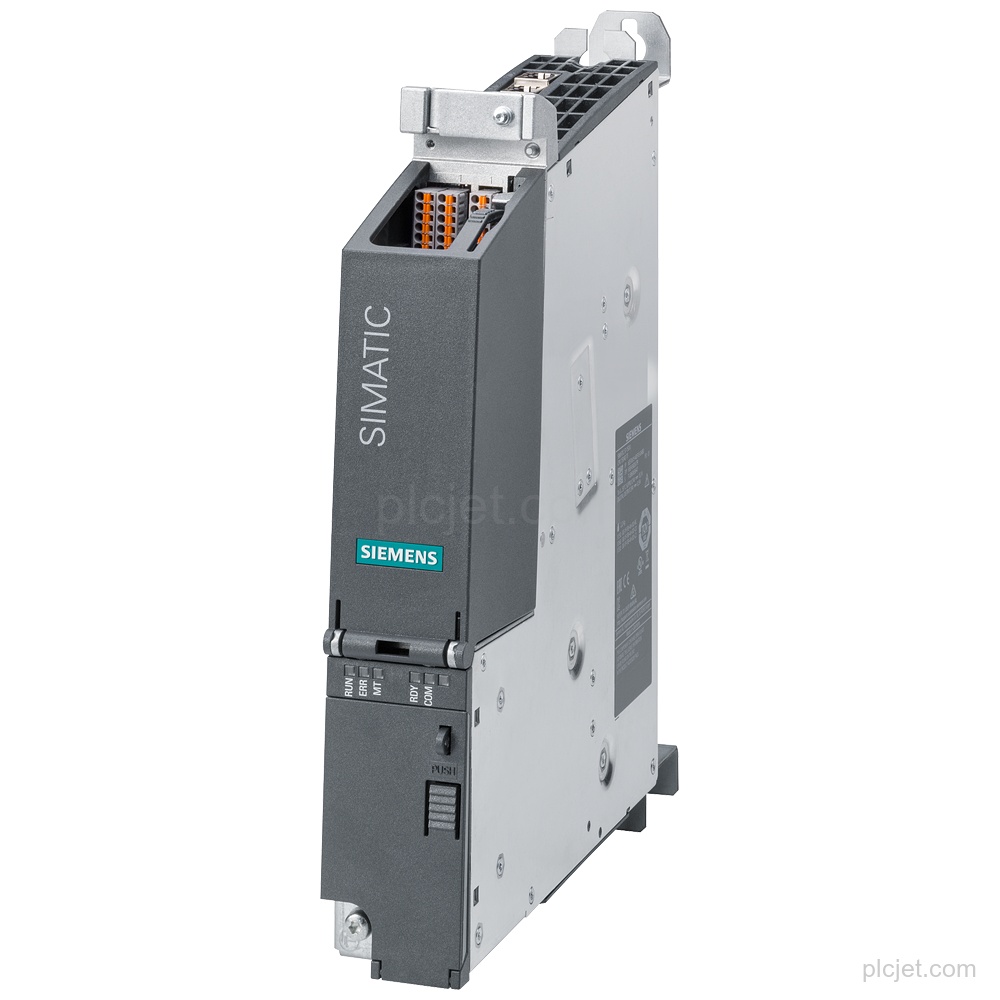

It is CPU 1507D TF, a SIMATIC S7-1500 Drive Controller CPU with integrated SINAMICS S120.
What interfaces does this configuration have?
It has 4 DRIVE-CLiQ interfaces, 3 PROFINET interfaces, 1 PROFIBUS interface and 2 USB 3.0 interfaces without function; no USB connection is permissible.
Is a SIMATIC Memory Card required?
Yes. A SIMATIC Memory Card is required; plug-in load memory is 12 Mbyte, with a maximum of 32 Gbyte.
