Product Overview
Technical Summary
| Product type | Micro Memory Card |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 2 Mbyte |
| Write/delete operations, min. | 100 000 |
| Data retention after final programming action, min. | 10 a |
| Product lifecycle | Announcement of product phase-out |
Key Features
Memory type and size
Flash-EPROM memory with a capacity of 2 Mbyte.
Write/delete endurance
Minimum 100 000 write/delete operations.
Data retention
Minimum data retention of 10 a after the final programming action.
Card dimensions

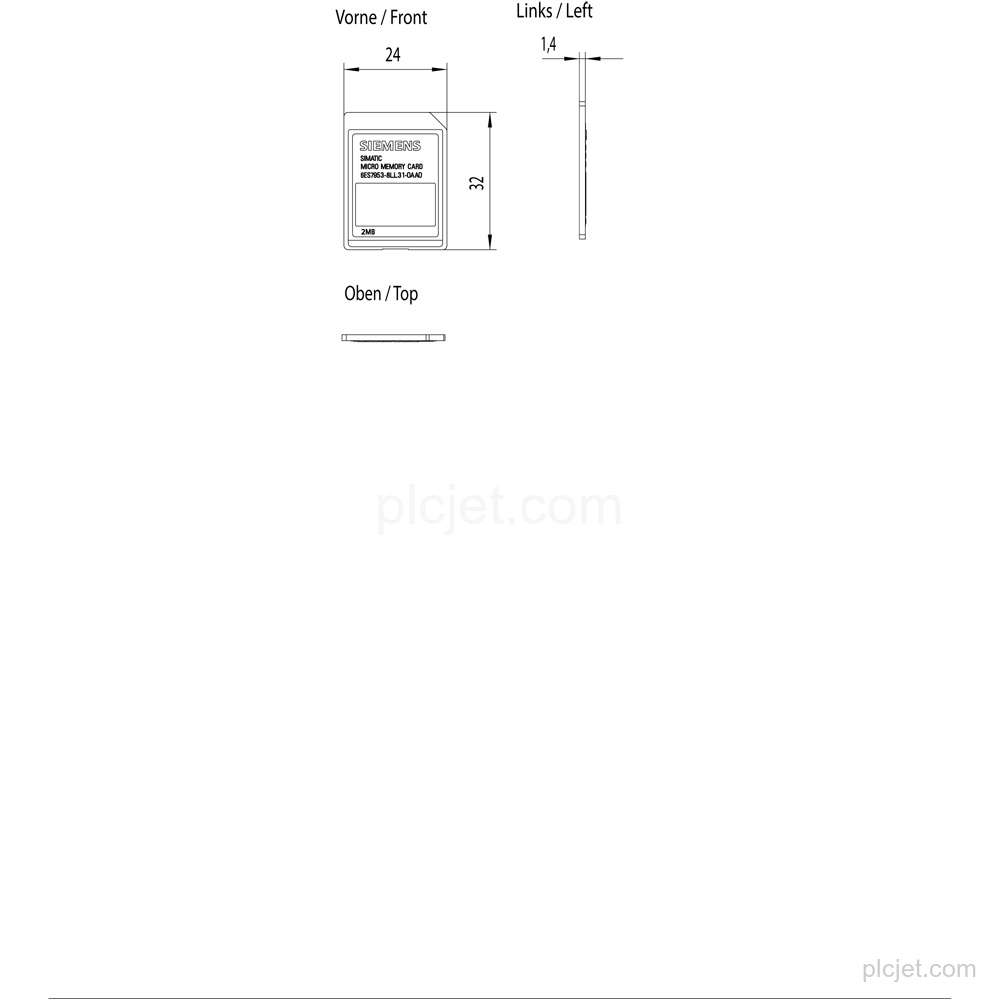

Width: 24 mm; height: 32 mm; depth: 1.4 mm.
Product lifecycle
Announcement of product phase-out.
Frequently Asked Questions
What is Siemens 6ES7953-8LL31-0AA0?

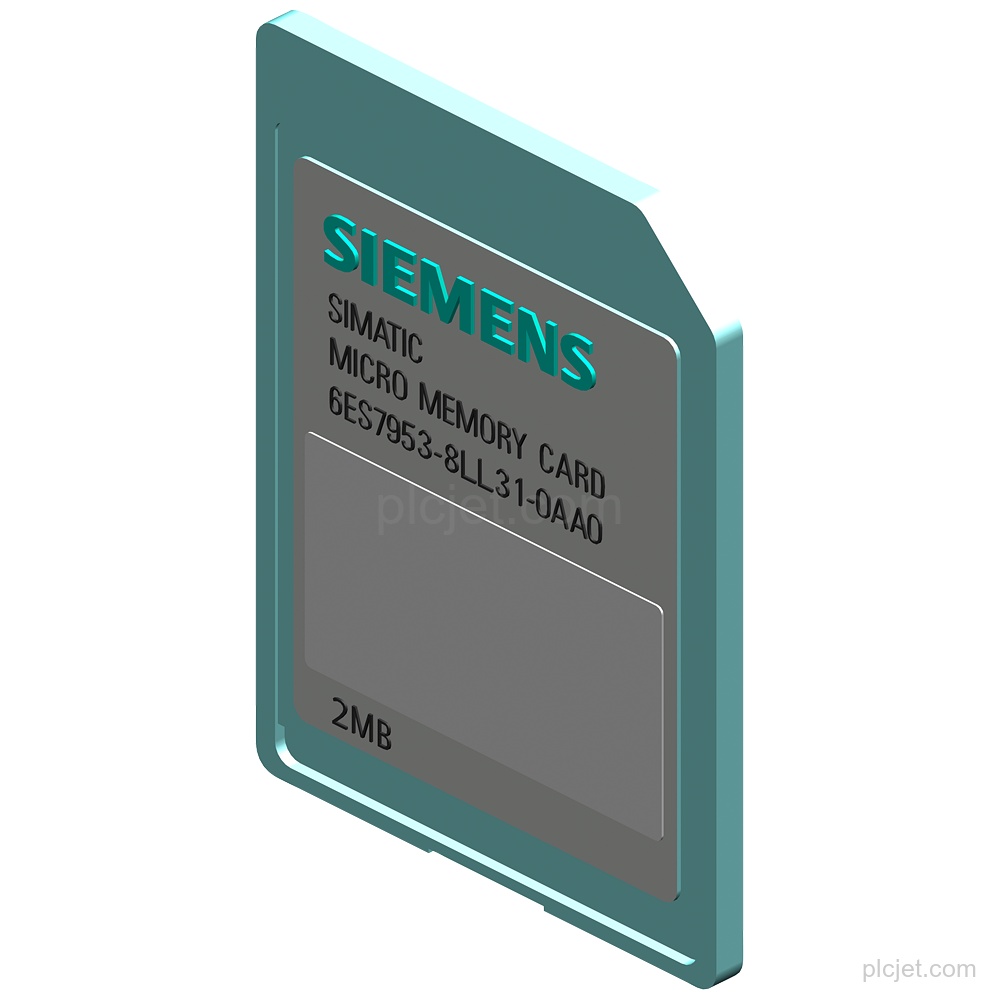

It is a SIMATIC S7 Micro Memory Card for S7-300/C7/ET 200 applications.
What memory does 6ES7953-8LL31-0AA0 provide?
It has Flash-EPROM memory with a size of 2 Mbyte.
What are the dimensions and weight of this Micro Memory Card?
The dimensions are 24 mm x 32 mm x 1.4 mm, and the approximate weight is 2 g.
What is the lifecycle status of 6ES7953-8LL31-0AA0?
The product has an announcement of product phase-out.
