Product Overview
Technical Summary
| Product type | Micro Memory Card |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 4 Mbyte |
| Write/delete operations, min. | 100 000 |
| Data retention after final programming action, min. | 10 a |
| Supported system family | SIMATIC S7, S7-300/C7/ET 200 |
| Product lifecycle | Announcement of product phase-out |
Key Features
Memory type and size
Flash-EPROM with a memory size of 4 Mbyte.
Write/delete endurance
Minimum 100 000 write/delete operations.
Data retention
Minimum data retention of 10 a after the final programming action.

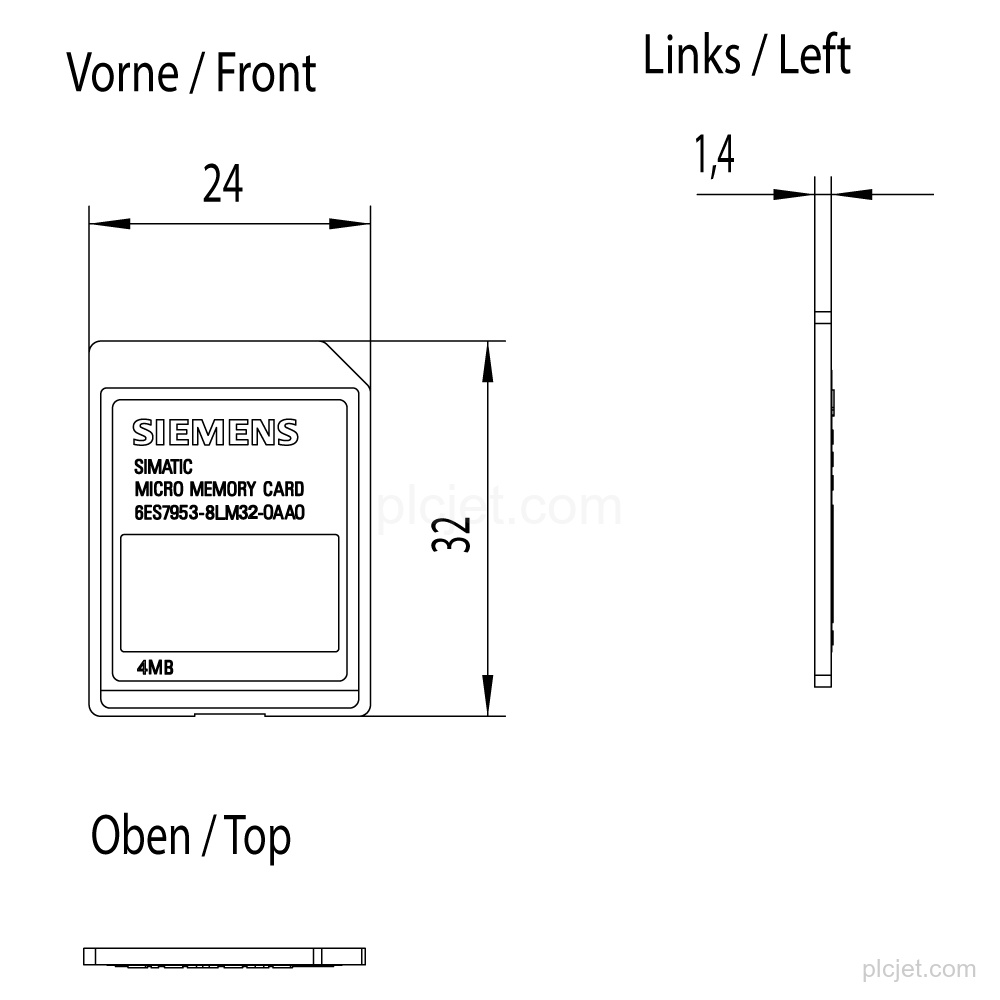

Card dimensions
Width: 24 mm; height: 32 mm; depth: 1.4 mm.
Product lifecycle
Announcement of product phase-out.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7953-8LM32-0AA0?
It is a SIMATIC S7 Micro Memory Card for S7-300/C7/ET 200.
What memory does the 6ES7953-8LM32-0AA0 provide?
It has Flash-EPROM memory with a size of 4 Mbyte.
What are the dimensions of this Micro Memory Card?
The dimensions are 24 mm wide, 32 mm high, and 1.4 mm deep.
What should be included when requesting this line item for a project quotation?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
