Product Overview
Technical Summary
| Memory type | Flash-EPROM |
|---|---|
| Memory size | 2 Gbyte |
| Write/delete operations, min. | 60 000 |
| Data retention, min. | 10 a after final programming action; 1 a if delete/write processes > 54 000 |
| Product lifecycle | Product cancellation |
Key Features
Flash-EPROM memory with 2 Gbyte capacity.
Minimum 60 000 write/delete operations.
Minimum 10 a after the final programming action; 1 a if delete/write processes exceed 54 000.

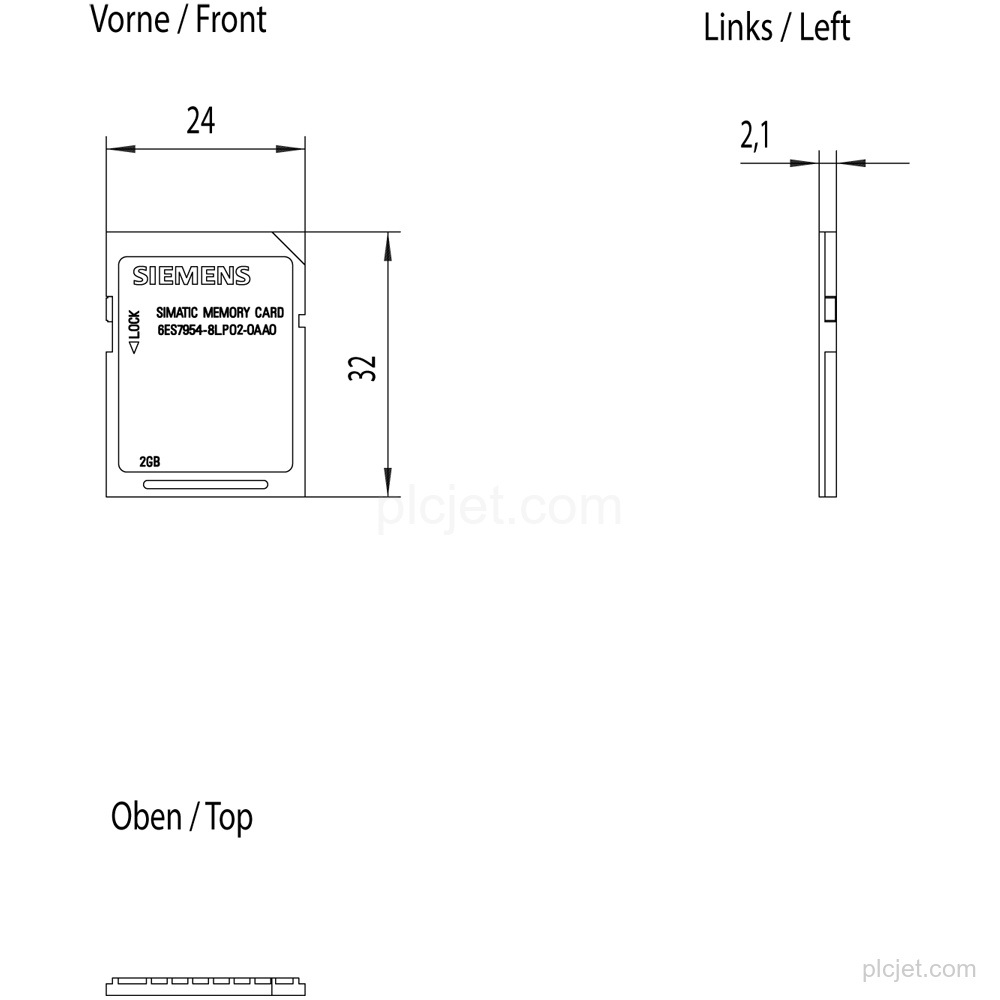

Width: 24 mm; height: 32 mm; depth: 2.1 mm.
Approximately 3 g; product cancellation.
Frequently Asked Questions
What is the exact product identity?

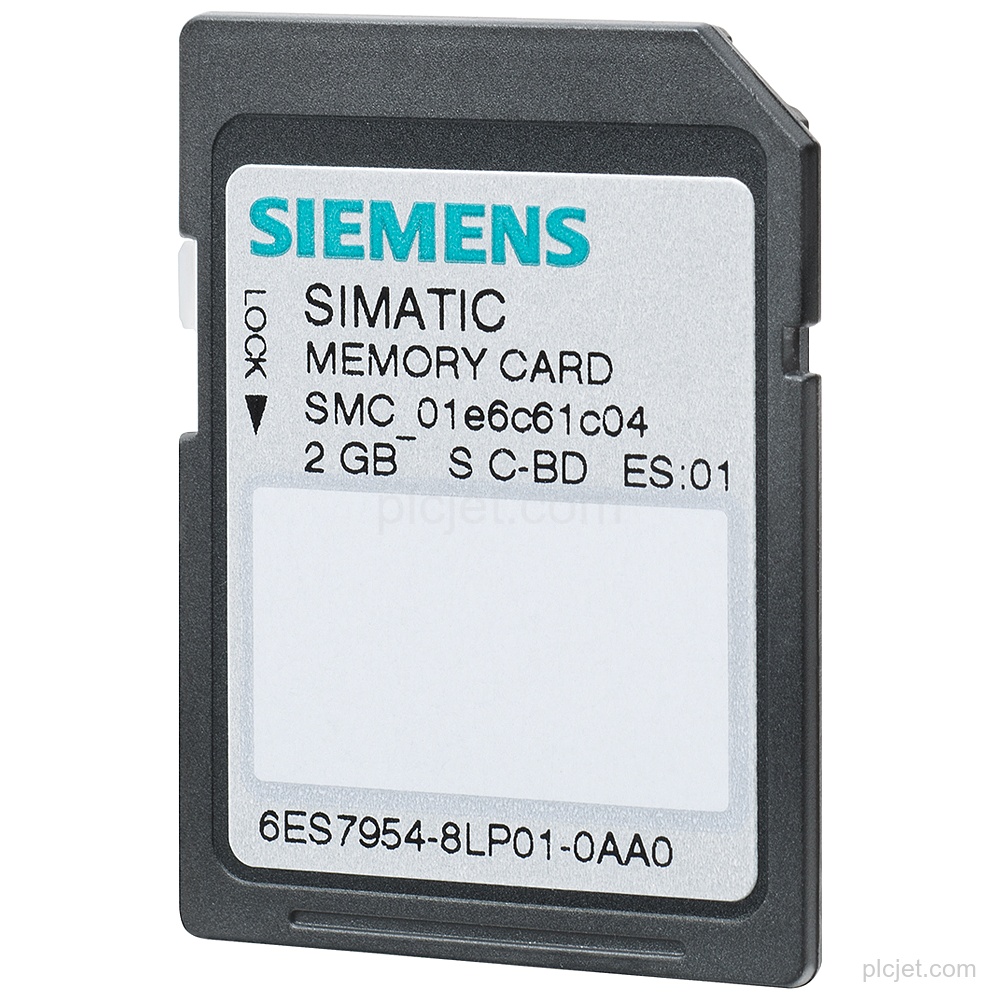

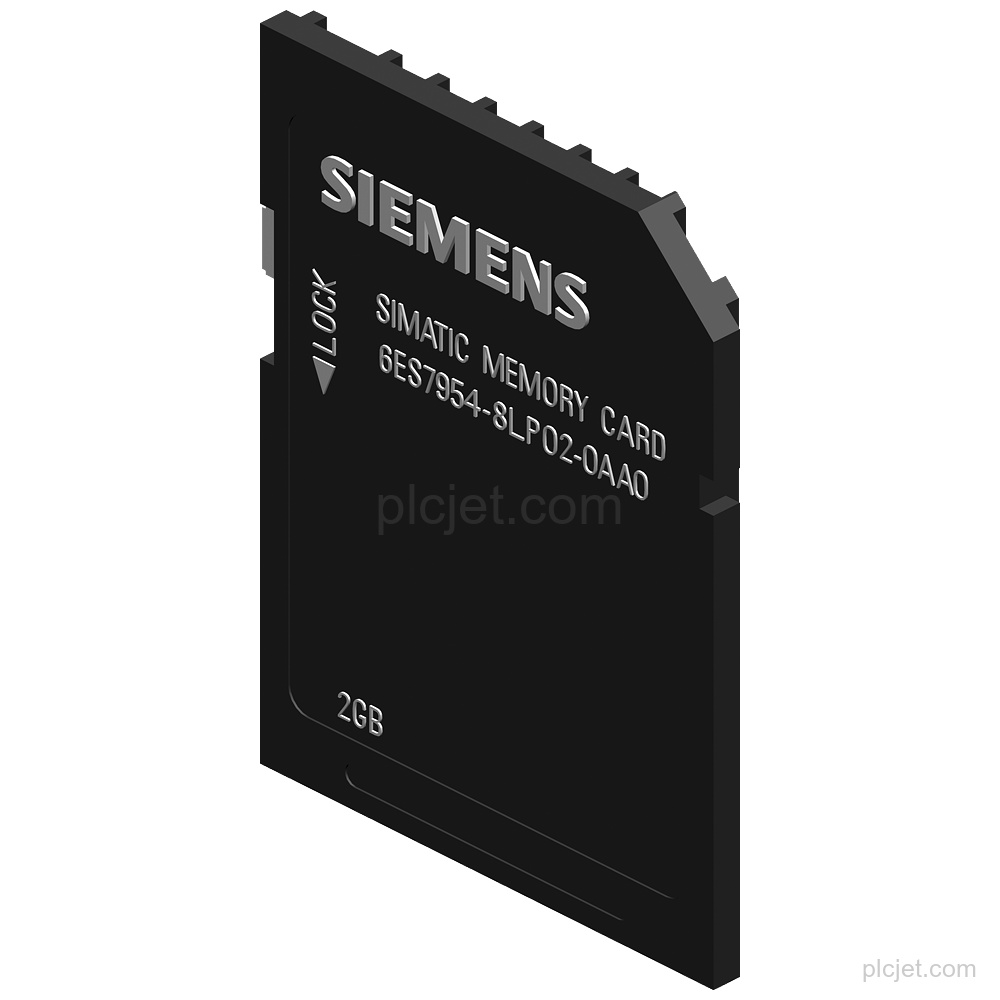

It is Siemens 6ES7954-8LP02-0AA0, a SIMATIC S7 memory card for S7-1x 00 CPU.
What memory does this configuration provide?
It provides Flash-EPROM memory with a size of 2 Gbyte.
What is the specified write/delete endurance?
The minimum number of write/delete operations is 60 000.
What are the card dimensions and weight?
Width is 24 mm, height is 32 mm, depth is 2.1 mm, and approximate weight is 3 g.
What information should be included for a project quotation?
Include the exact line item, requested quantity, destination, schedule context, and any additional BOM lines.
