Product Overview
Technical Summary
| Product type | Synchronization module |
|---|---|
| Configuration software | STEP 7 TIA Portal configurable/integrated from version STEP 7 V15.1 or higher |
| Optical interface | Yes; LC connection |
| Optical wavelength | 850 nm |
| Range, depending on optical fiber used | 1 m to 200 m |
| Power loss, typical | 0.77 W |
| Operating temperature, horizontal installation | 0 °C to 60 °C |
| Operating temperature, vertical installation | 0 °C to 40 °C |
| Product lifecycle | Active Product |
Key Features

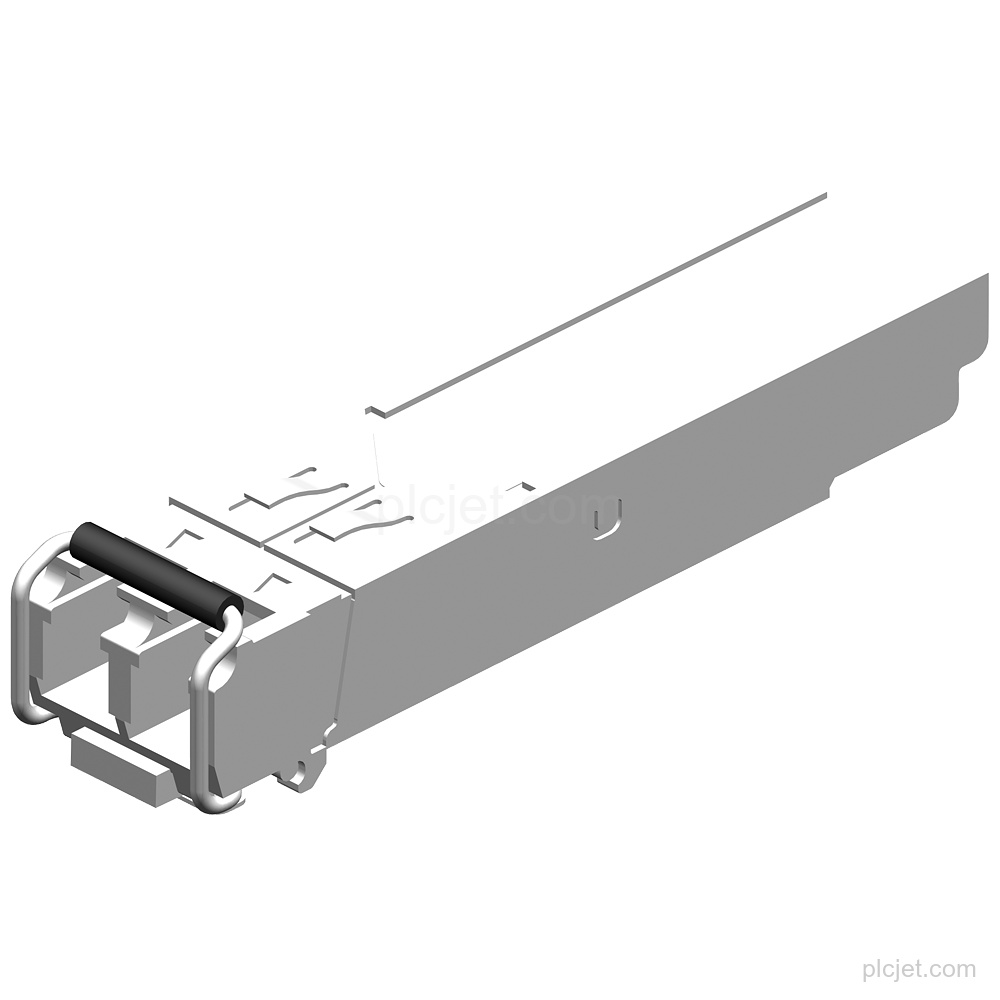

Product type: synchronization module for SIMATIC S7-1500H.
Optical interface: LC; wavelength: 850 nm.
Range depending on optical fiber used: 1 m to 200 m.
Configurable/integrated with STEP 7 TIA Portal from version STEP 7 V15.1 or higher.
Ambient temperature during operation is 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation.

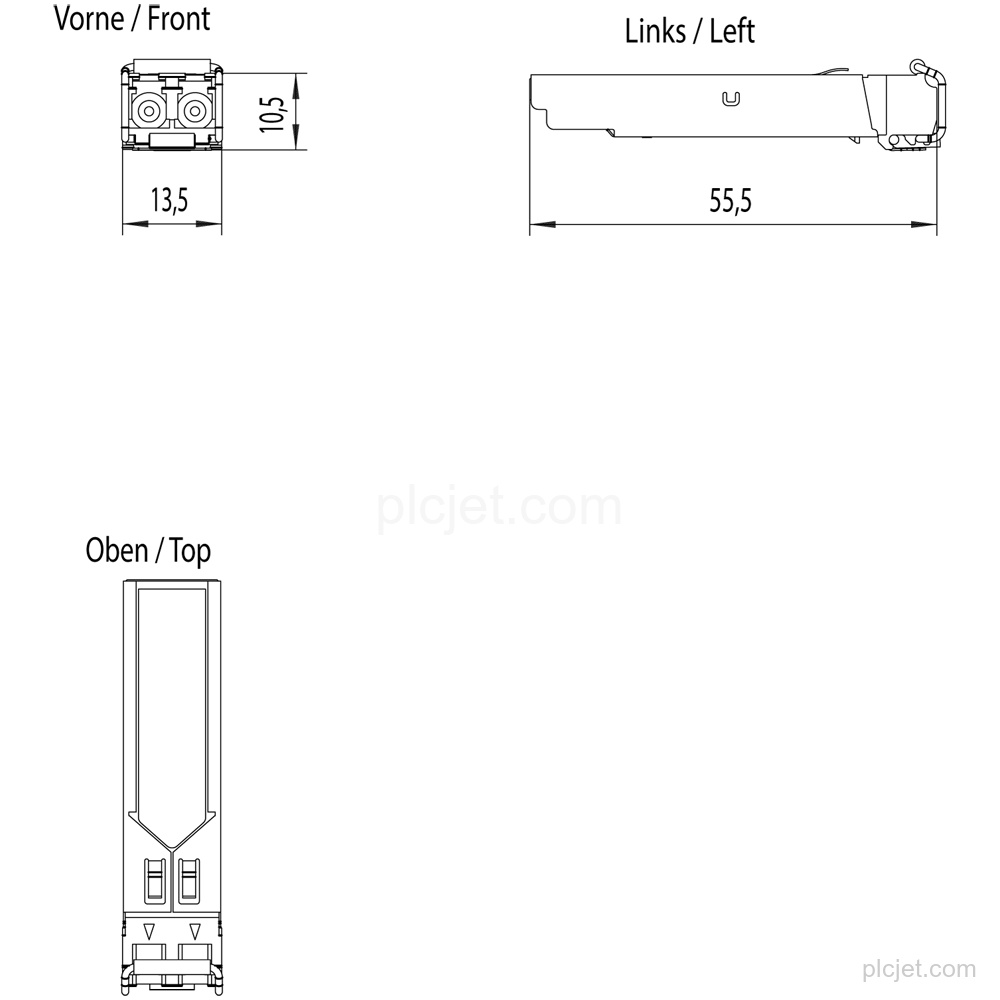

Dimensions: 13 mm width, 14 mm height, and 58 mm depth; weight, approx.: 18 g.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7960-1CB00-0AA5?
It is a SIMATIC S7-1500H synchronization module for patch cable up to 200 m.
What optical connection does this synchronization module use?
It has an LC optical interface with an 850 nm wavelength.
What range is supported?
The range is 1 m to 200 m, depending on the optical fiber used.
What are the operating temperature limits?
For horizontal installation, the ambient temperature during operation is 0 °C to 60 °C. For vertical installation, it is 0 °C to 40 °C.
What details should be included when requesting this line item?
Include the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
