Product Overview
Technical Summary
| Product type designation | DI 8x24VDC |
|---|---|
| Digital inputs | 8 |
| Rated input voltage | 24 V DC |
| M12 connections | 4 |
| Firmware version | V2.0.x |
| Maximum encoder supply current | 0.7 A; total current of all encoders |
| Protection | IP67 according to the product description |
Key Features

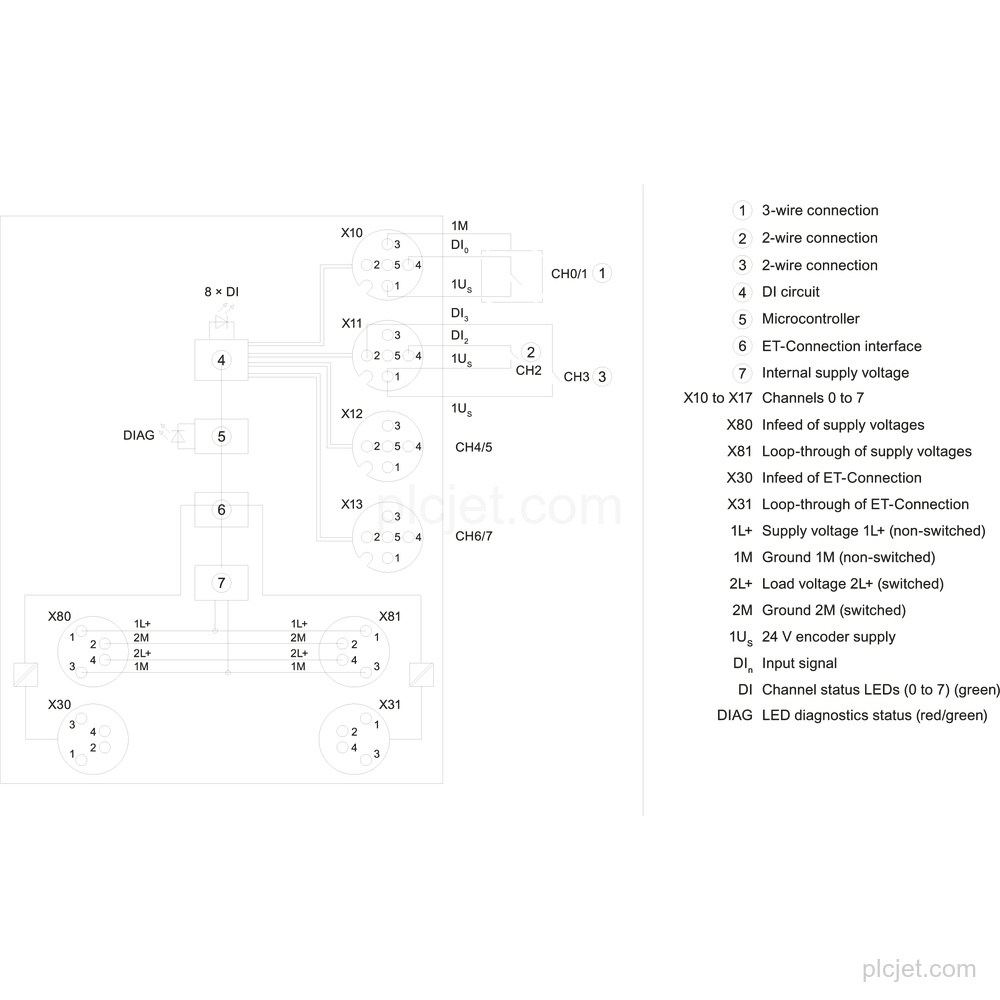

8 digital inputs with P-reading input configuration.
Rated input voltage: 24 V DC; signal "0": -30 to +5 V; signal "1": +11 to +30V.
4 M12 connections are supplied for the SIMATIC ET 200AL line item.
4 encoder supply outputs with 0.7 A maximum total current for all encoders.
Parameterizable diagnostic alarm, short-circuit diagnostics, and green or green/red LED indications.
Firmware version V2.0.x; configurable or integrated with STEP 7 V13 SP1 or higher and STEP 7 V5.5 SP4 Hotfix 7 or higher.
Frequently Asked Questions
What is the exact product identity?

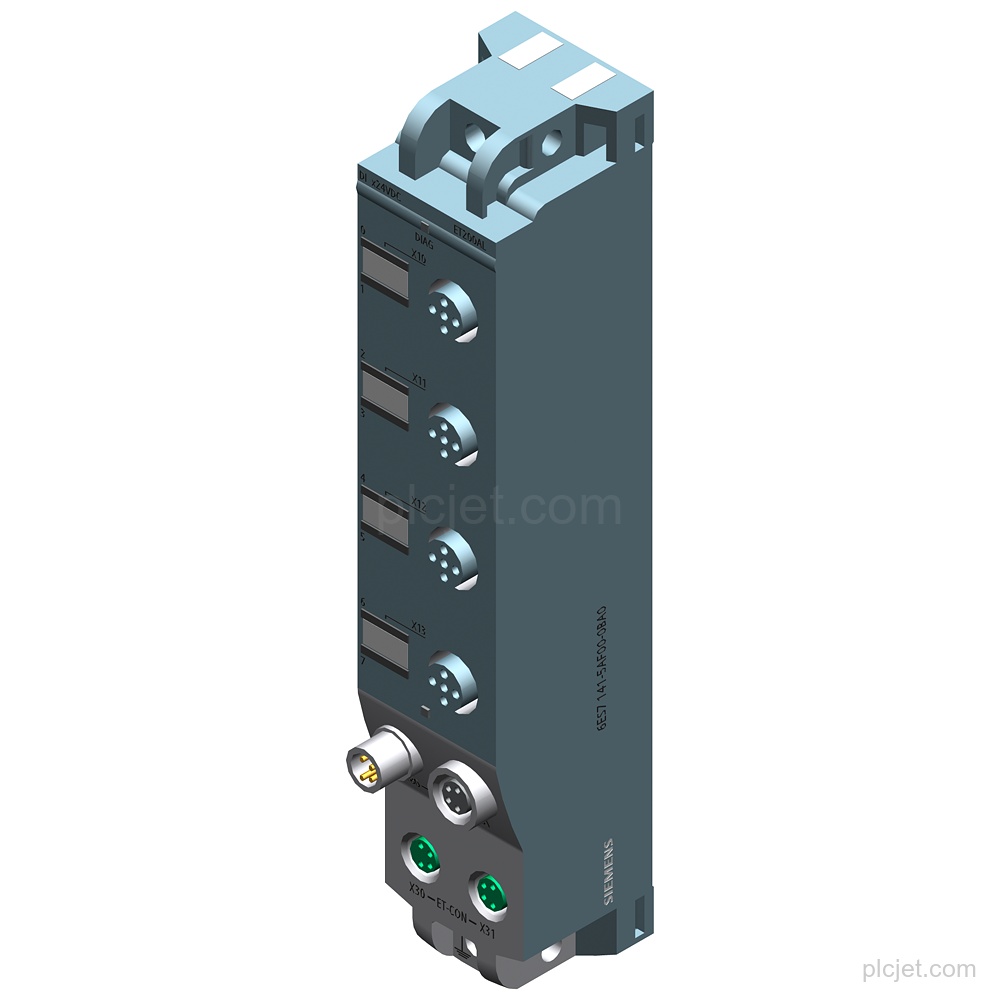

The exact line item is Siemens 6ES7141-5AF00-0BA0, SIMATIC ET 200AL, product type DI 8x24VDC.
What input and connection configuration does this line item have?
It has 8 digital inputs, a 24 V DC rated input voltage, and 4 M12 connections.
What information should be included for a project quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for the quotation request.
