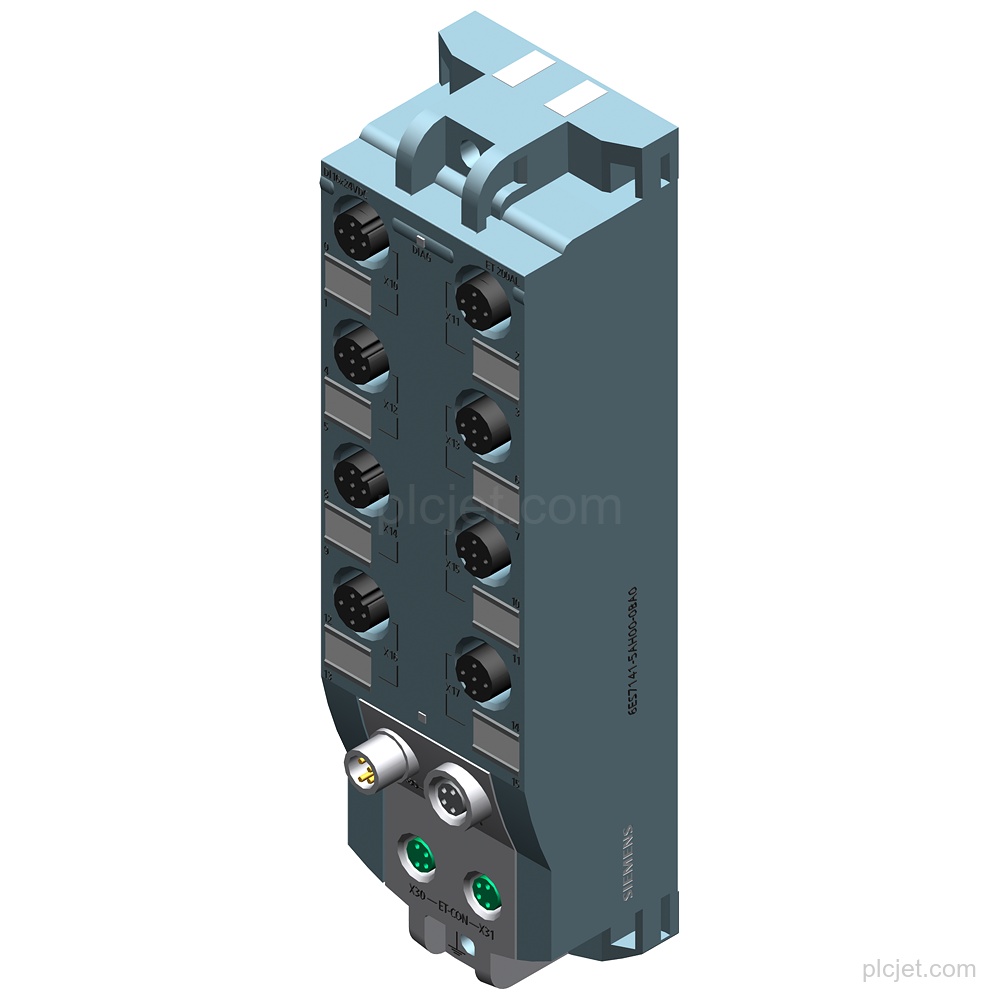

Product Overview
Technical Summary
| Product type | DI 16x24VDC |
|---|---|
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Signal 0 | -30 to +5 V |
| Signal 1 | +11 to +30 V |

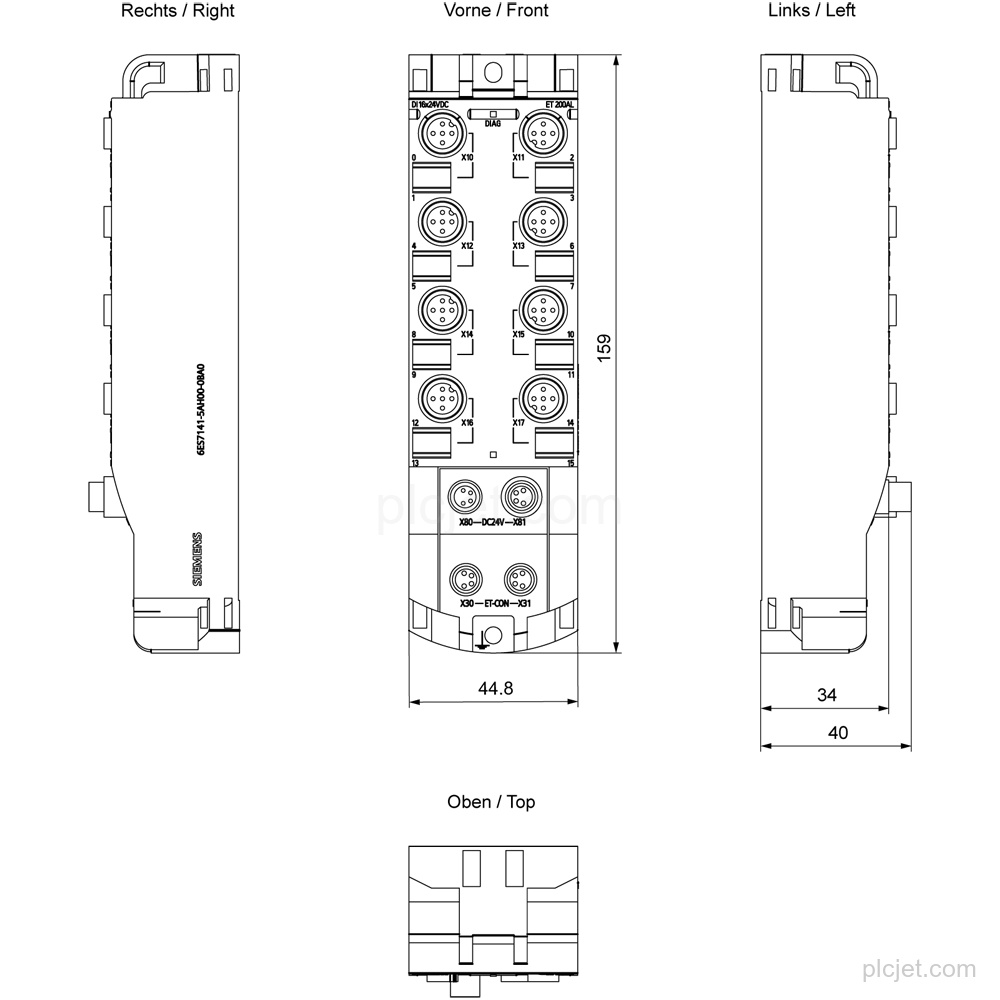

| Connections | 8 M12 |
| IP protection | IP65/67 |
| Firmware version | V2.0.x |
| Encoder supply outputs | 8 |
| Maximum total encoder output current | 1.4 A |
| Mounting condition | All mounting positions, up to 55 °C, maximum 16 |
Key Features
16 digital inputs with P-reading sourcing/sinking input and IEC 61131 type 3 input characteristic.
Rated input voltage: 24 V DC. Signal 0: -30 to +5 V; signal 1: +11 to +30 V.

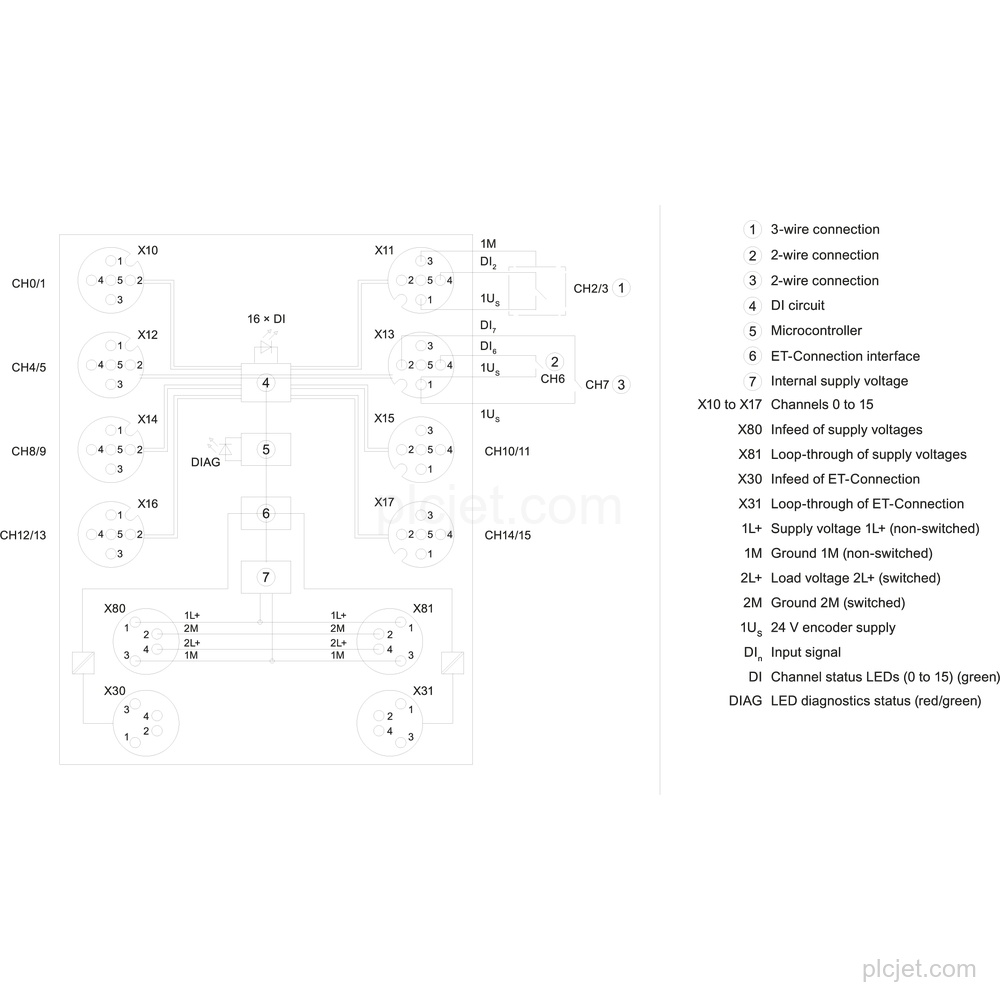

8 M12 connections and 8 encoder supply outputs, with maximum total encoder output current of 1.4 A.
IP65/67 protection, short-circuit diagnostics by module, and green channel status LEDs.
Firmware version V2.0.x; configurable or integrated with STEP 7 V13 SP1 or higher and STEP 7 V5.5 SP4 Hotfix 7 or higher.
HW functional status: FS06. I&M data: Yes; I&M0 to I&M3.
Frequently Asked Questions
What is the exact Siemens line item and input configuration?
It is Siemens 6ES7141-5AH00-0BA0, product type DI 16x24VDC, with 16 digital inputs.
What supply voltage and signal ranges does this module have?
The rated input voltage is 24 V DC. Signal 0 is -30 to +5 V, and signal 1 is +11 to +30 V.
How is the module connected and protected?
It has 8 M12 connections and IP65/67 protection. Short-circuit diagnosis is provided from sensor supply to M, module by module.
What mounting condition applies to the 16-channel value?
For all mounting positions up to 55 °C, the maximum stated value is 16.
Can this exact line item be included in a quotation request?
Yes. Submit the requested quantity, destination, schedule context and any additional BOM lines for quotation review.
