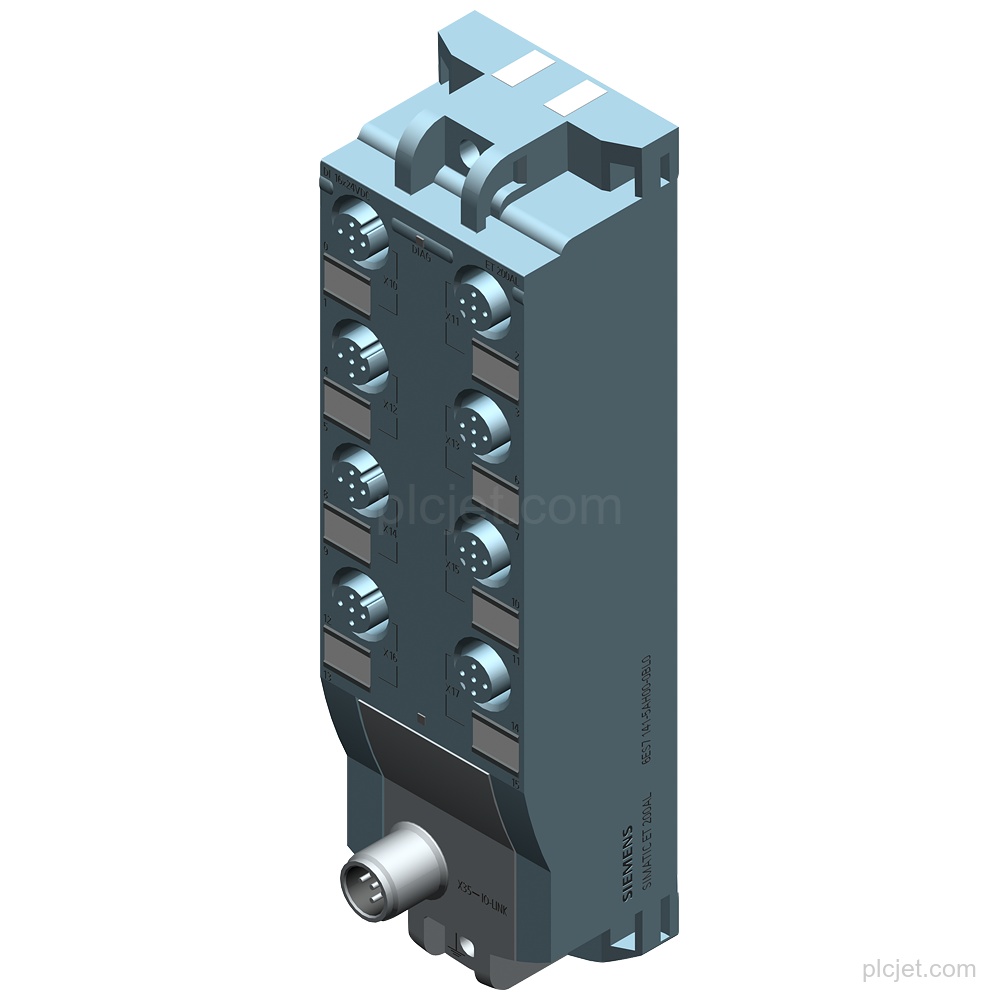

Product Overview
Technical Summary

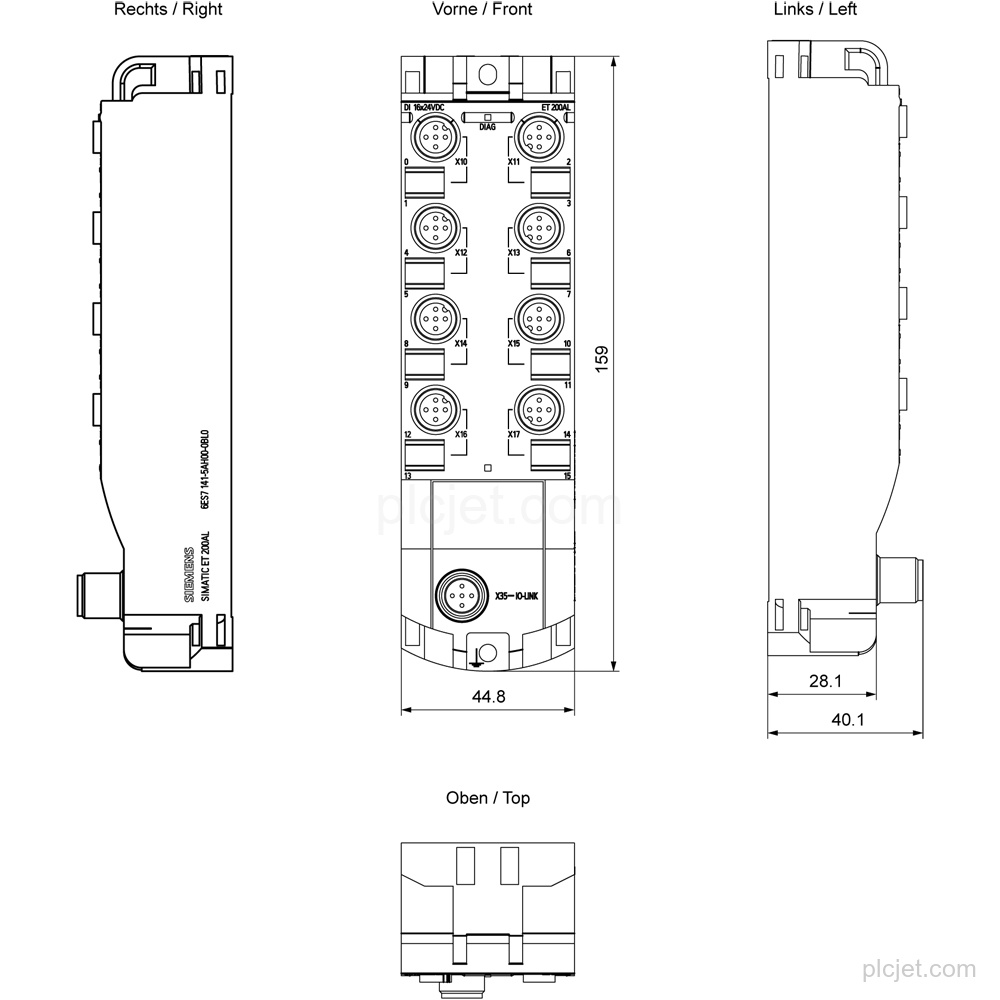

| Product type designation | IO-Link DI 16x24VDC |
|---|---|
| Digital inputs | 16 |
| IO-Link protocol | 1.1 |
| Transmission rate | 38.4 kBd (COM2) |
| Input voltage, rated value | 24 V DC |
| Connection | M12, 5-pin, A-coded |
| IP degree of protection | IP65/67 |
| Ambient temperature during operation | -30 °C to 55 °C |
| Firmware version | V1.0.x |
| HW functional status | FS01 |
| Vendor identification (VendorID) | 42 |
| Device identifier (DeviceID) | 229380 |
Key Features

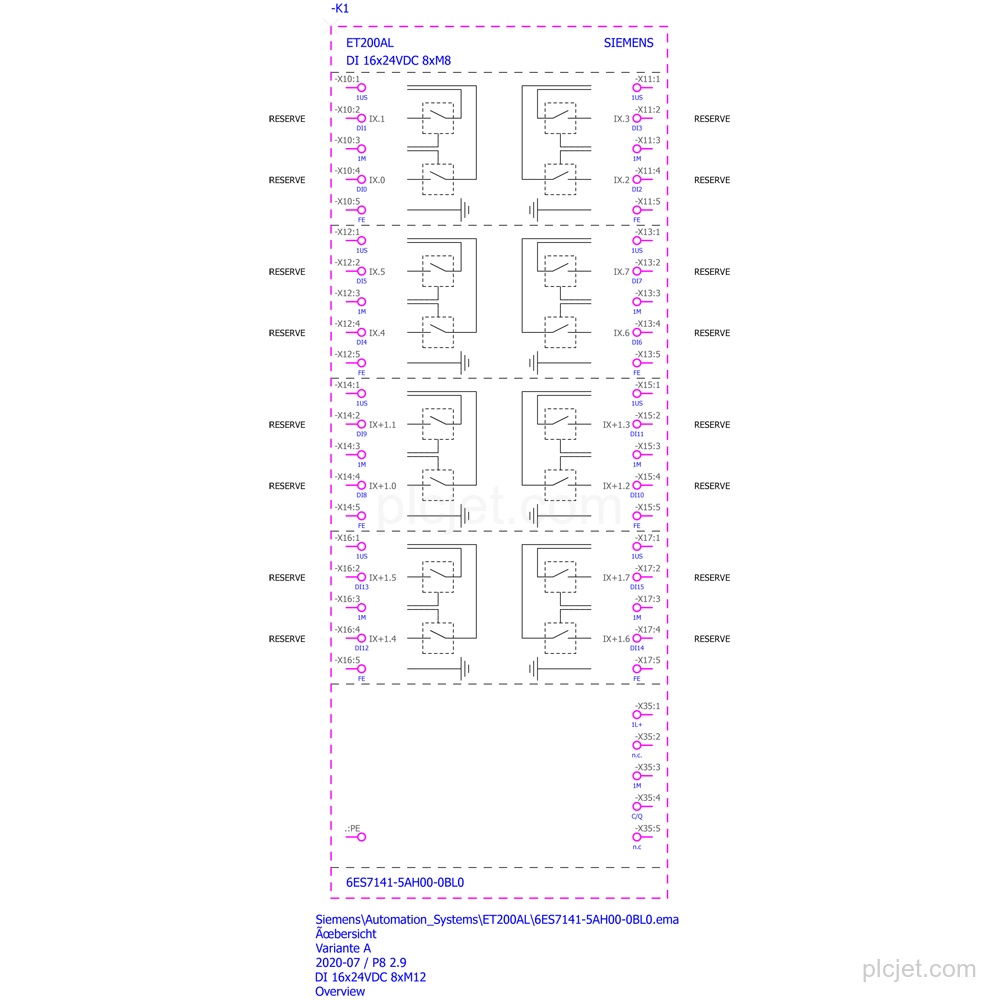

The module has 16 digital inputs with a P-reading sourcing/sinking input and an input characteristic curve according to IEC 61131, type 3.
IO-Link protocol 1.1 is supported at 38.4 kBd (COM2), with a 2.5 ms minimum cycle time and Port type A device connections.
The electrical connections for inputs, outputs, and IO-Link use M12, 5-pin, A-coded connections.
The rated input voltage is 24 V DC; signal "0" is -30 to +5 V and signal "1" is +11 to +30V.
The IP degree of protection is IP65/67. Ambient temperature during operation is -30 °C to 55 °C.
The module has parameterizable diagnostic alarms, electronic short-circuit protection per module for encoder supply, and green channel-status LEDs.
Frequently Asked Questions
What is the exact Siemens line-item model?
It is Siemens 6ES7141-5AH00-0BL0, with product type designation IO-Link DI 16x24VDC and HW functional status FS01.
How many digital inputs and IO-Link connections does it have?
It has 16 digital inputs and 8 M12 connections. IO-Link protocol 1.1 is supported, with Port type A connections.
What supply and input voltage values apply?
The rated input voltage is 24 V DC. The permissible load-voltage range is 18 V to 30 V, with supply from 1Us+ of the IO-Link master.
What protection and operating temperature are specified?
The IP degree of protection is IP65/67, and the ambient temperature during operation is -30 °C to 55 °C.
