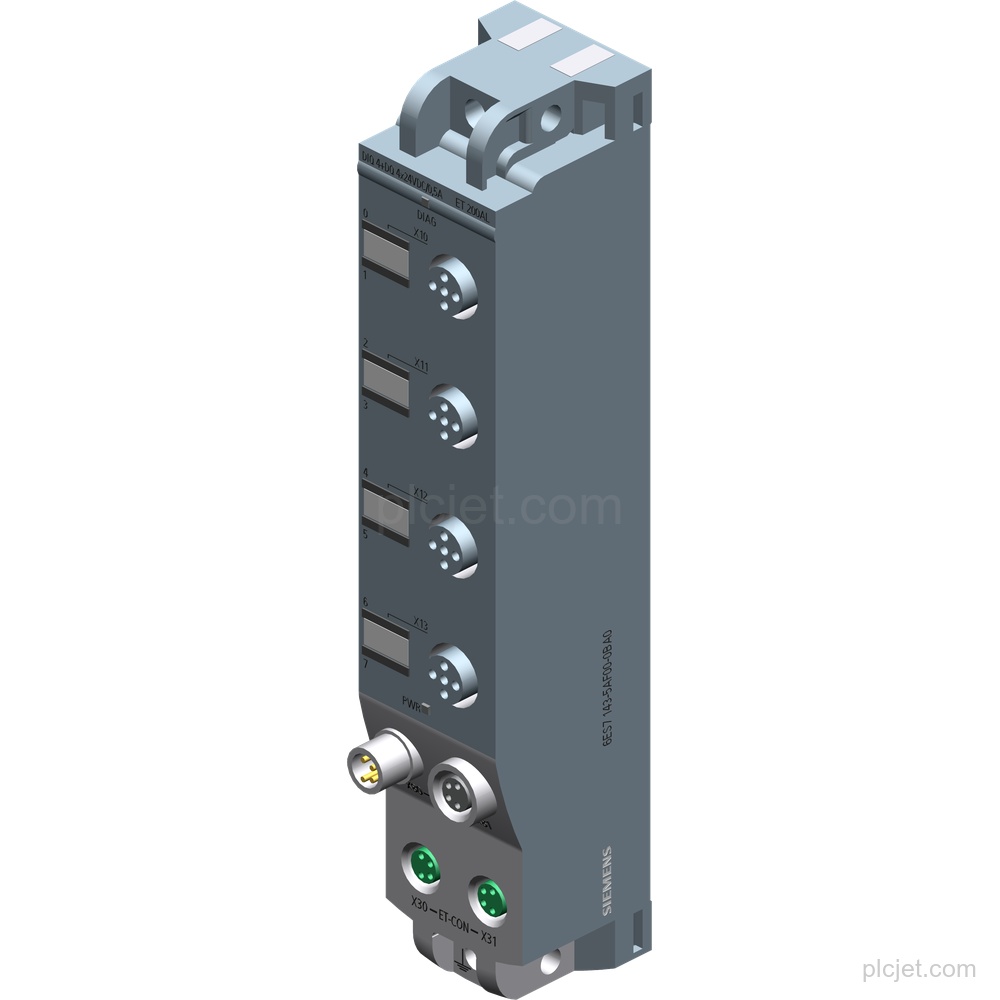

Product Overview
Applications
Supports digital inputs and outputs, including parameterizable DIQ channels, for processing connected signals.
Technical Summary
| Product type | DIQ 4+DQ 4x24VDC/0.5A |
|---|---|
| Digital inputs | 4; parameterizable as DIQ |
| Digital outputs | 8; 4 DQ fixed, 4 DIQ parameterizable |
| Load voltage | 1L+ and 2L+: 24 V DC rated; 20.4 V to 28.8 V permissible range |
| Output current | 0.5 A rated value for signal "1" |
| Encoder supply | 4 outputs; 0.7 A total current of all encoders |
| Connectors | 4 M12 |
| Protection | IP65/67 |
| Firmware version | V2.0.x |
| HW functional status | FS06 |

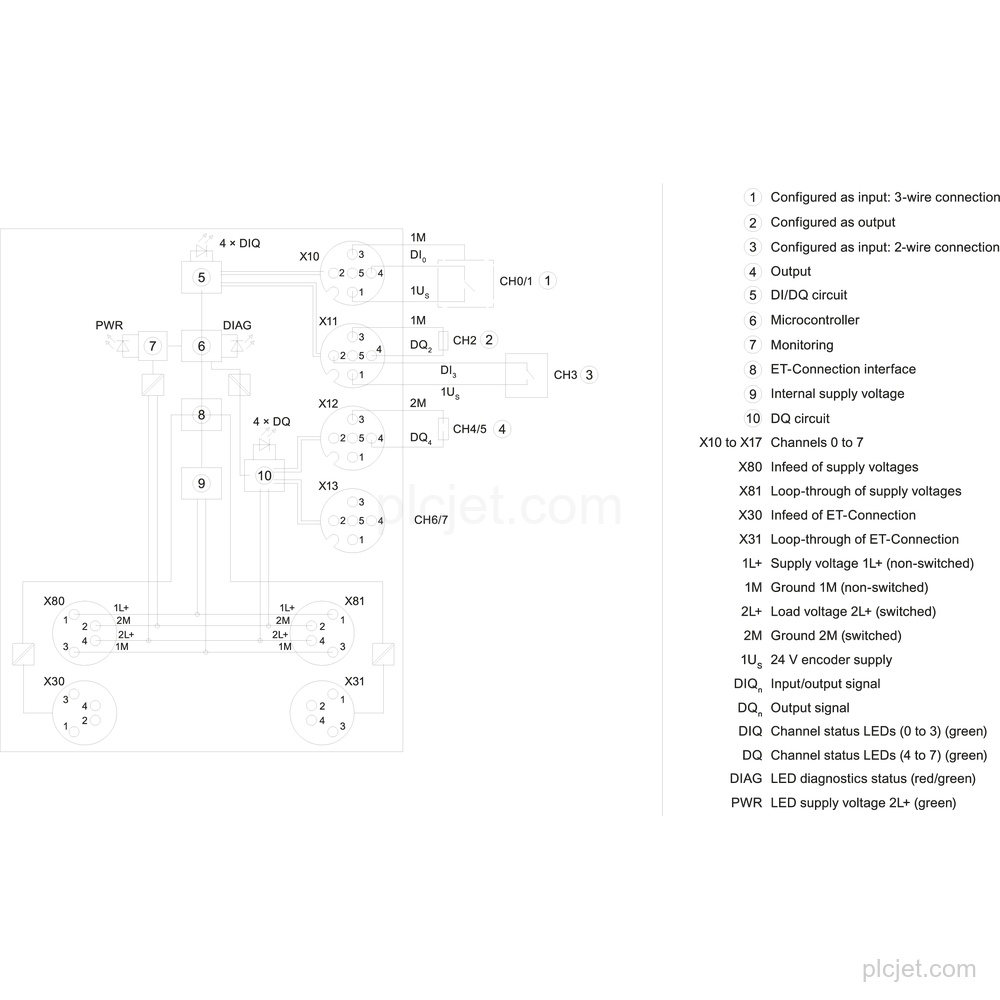

Key Features
Has 4 digital inputs, parameterizable as DIQ, and 8 digital outputs: 4 fixed DQ and 4 DIQ parameterizable.
Output current rated value is 0.5 A, with short-circuit protection per channel and electronic protection.
Load voltages 1L+ and 2L+ each have a rated value of 24 V DC and a permissible range of 20.4 V to 28.8 V.

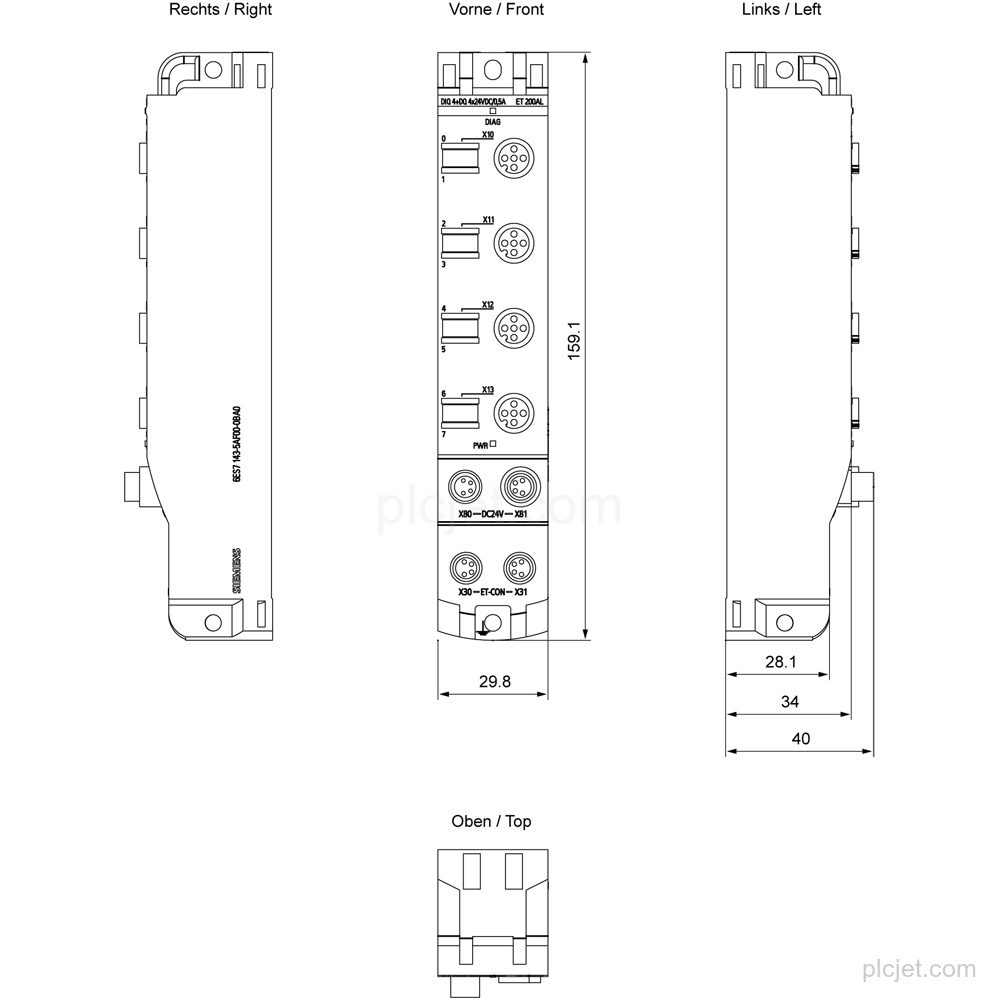

Has 4 M12 connectors and IP65/67 protection.
Configurable or integrated with STEP 7 V13 SP1 or higher, STEP 7 V5.5 SP4 Hotfix 7 or higher, PROFIBUS GSD as of Revision 5, and PROFINET GSDML V2.3.1.
Provides parameterizable diagnostic alarms, channel-by-channel substitute values, and green or green/red LED indications.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7143-5AF00-0BA0?
The product type designation is DIQ 4+DQ 4x24VDC/0.5A.
How many digital inputs and outputs does this module have?
It has 4 digital inputs, parameterizable as DIQ, and 8 digital outputs: 4 DQ fixed and 4 DIQ parameterizable.
What supply voltage does it use?
Load voltages 1L+ and 2L+ each have a rated value of 24 V DC, with a permissible range of 20.4 V to 28.8 V.
What protection and connections are provided?
It has 4 M12 connectors and IP65/67 protection.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
