Product Overview
Technical Summary
| Product type designation | DIQ 4+DQ 4x24VDC/0.5A |
|---|---|
| Digital inputs | 4; parameterizable as DIQ |
| Digital outputs | 8; 4 DQ fixed, 4 DIQ parameterizable |
| Rated load voltage | 24 V DC for 1L+ and 2L+ |
| Permissible load-voltage range | 20.4 V to 28.8 V for 1L+ and 2L+ |
| Rated output current | 0.5 A for signal "1" |
| Encoder-supply outputs | 4; 0.7 A total current of all encoders |
| Output short-circuit protection | Yes; per channel, electronic |
| Engineering versions | STEP 7 V13 SP1 or higher; STEP 7 from V5.5 SP4 Hotfix 3; PROFIBUS GSD Revision 5; PROFINET GSDML V2.3.1 |
| Protection degree | IP65/67 |
Key Features
Has 4 digital inputs, parameterizable as DIQ, and 8 digital outputs: 4 fixed DQ and 4 parameterizable DIQ.
Load voltage 1L+ and 2L+ have a rated value of 24 V DC, with a permissible range from 20.4 V to 28.8 V.
Outputs have a rated signal-1 current of 0.5 A, electronic short-circuit protection per channel, and current sourcing.
Provides 4 encoder-supply outputs with electronic short-circuit protection per module and 0.7 A total current for all encoders.
Configurable or integrated with STEP 7 V13 SP1 or higher, STEP 7 from V5.5 SP4 Hotfix 3, PROFIBUS with GSD Revision 5, and PROFINET with GSDML V2.3.1.
Has IP65/67 protection, channel status indication by green LED, module diagnostics by green/red LED, and parameterizable diagnostic alarms.
Frequently Asked Questions
What is the exact Siemens line item?

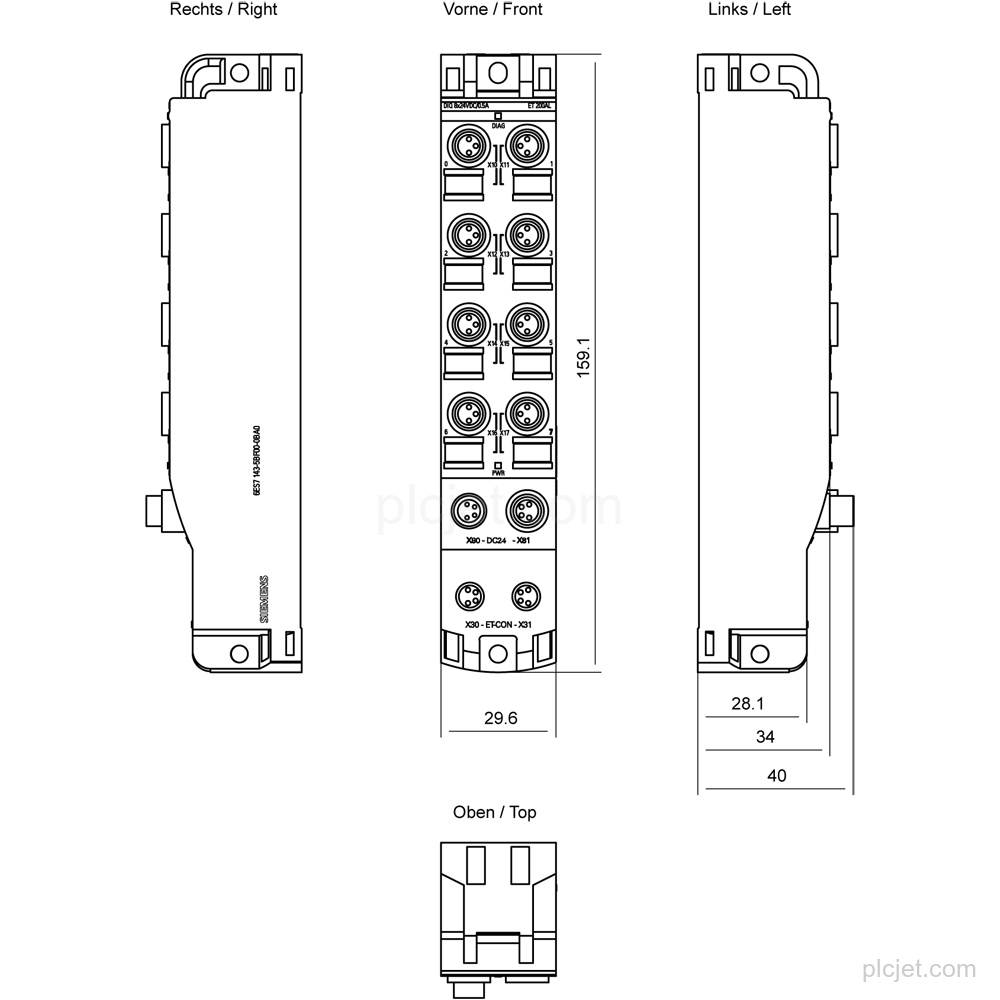

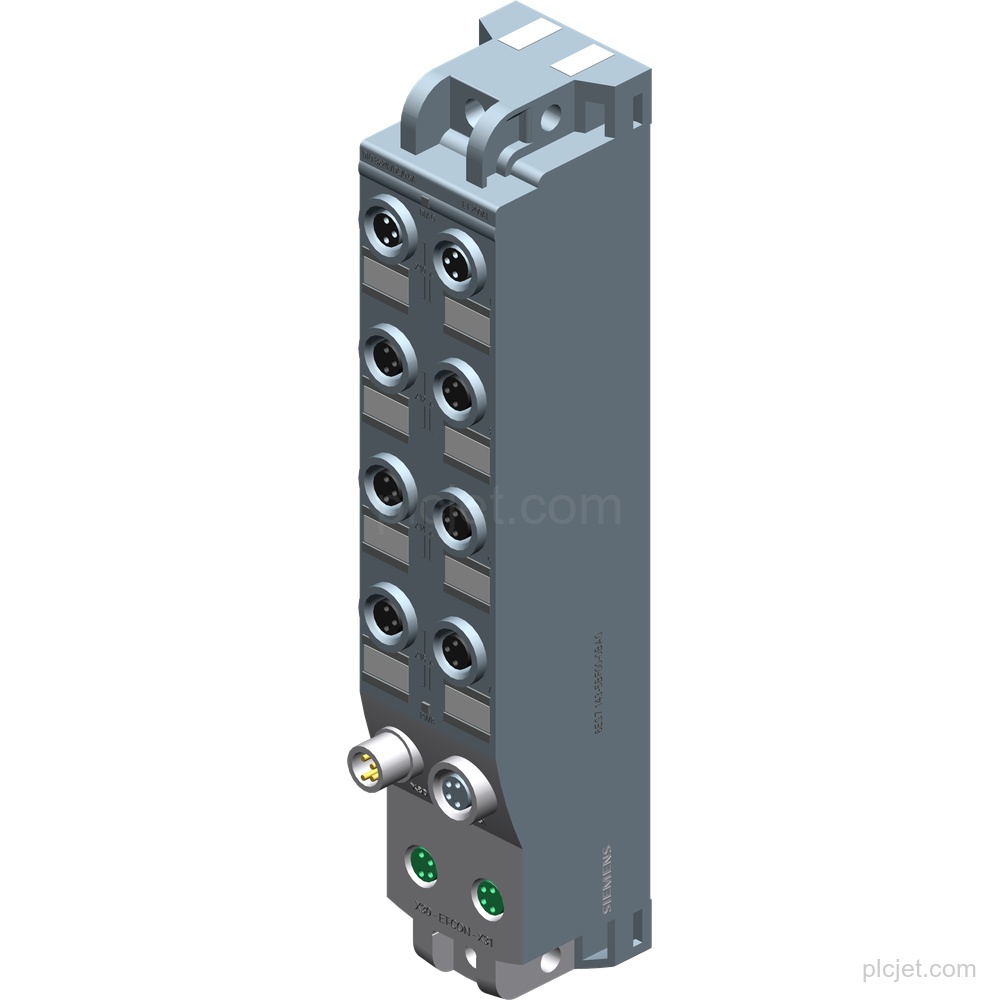

It is Siemens 6ES7143-5BF00-0BA0, with product type designation DIQ 4+DQ 4x24VDC/0.5A.

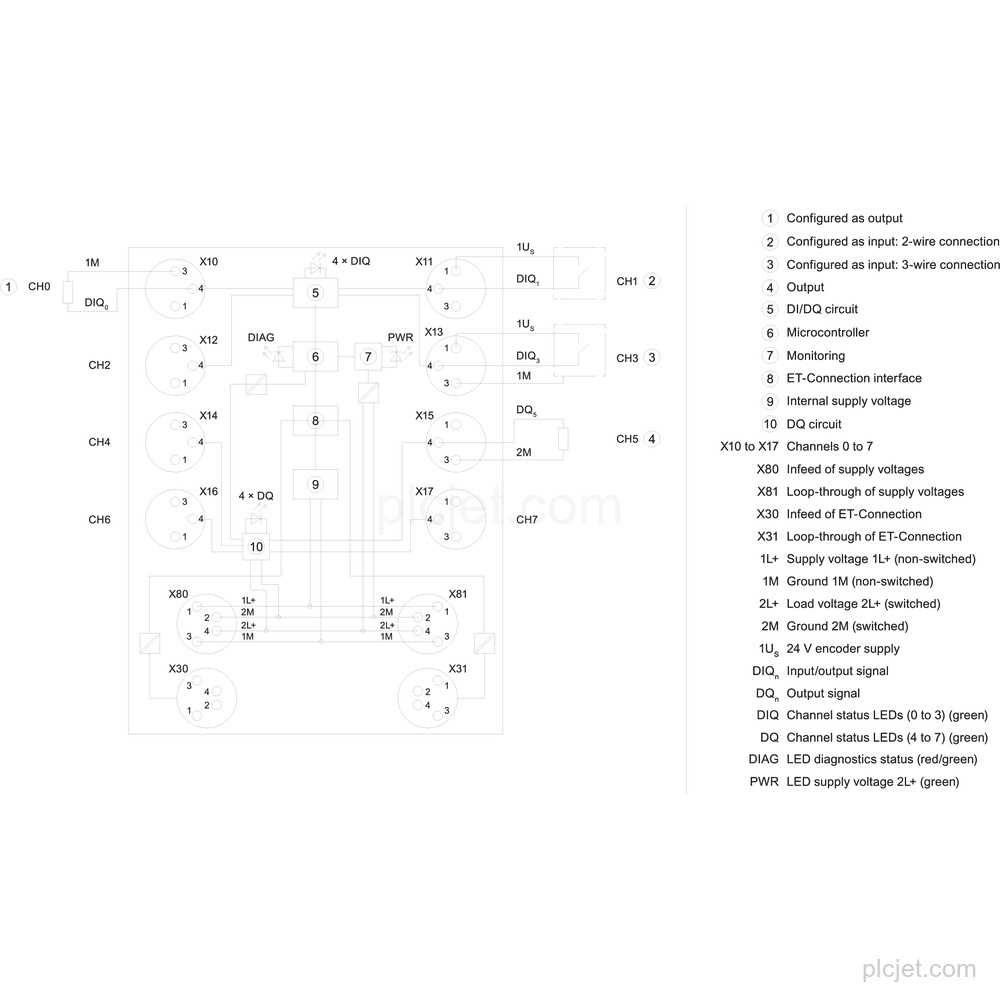

How many inputs and outputs does this module have?
It has 4 digital inputs and 8 digital outputs: 4 DQ fixed and 4 DIQ parameterizable.
What output current is supported?
The rated output current for signal "1" is 0.5 A. The current per output group is limited to 2 A.
Which engineering versions are supported?
It is configurable or integrated with STEP 7 V13 SP1 or higher, STEP 7 from V5.5 SP4 Hotfix 3, PROFIBUS GSD Revision 5, and PROFINET GSDML V2.3.1.
