Product Overview
Applications
Used for connection to ET 200AL for 24 V DC power supply.
Technical Summary
| Product type | Power connector |
|---|---|
| Connector type | M8, 4-pole |
| Product description | M8 plug connector with high degree of protection, 4-pin, plastic version |
| Suitability for use | For connection to ET 200AL for 24 V DC power supply |
| IP degree of protection | IP65/67 |
| Electrical connection | Screw terminals |
| Connectable cable cross-section | 0.14 mm2 to 0.5 mm2 |
| Suitable cable diameter | 4 mm to 5.5 mm |
| Cable outlet | 180° cable outlet |
Key Features
Male contact insert with 4 poles and a plastic M8 plug connector design.
For connection to ET 200AL for 24 V DC power supply.
IP65/67 degree of protection.
Screw terminals for the mains supply line; connectable cable cross-section is 0.14 mm2 to 0.5 mm2.

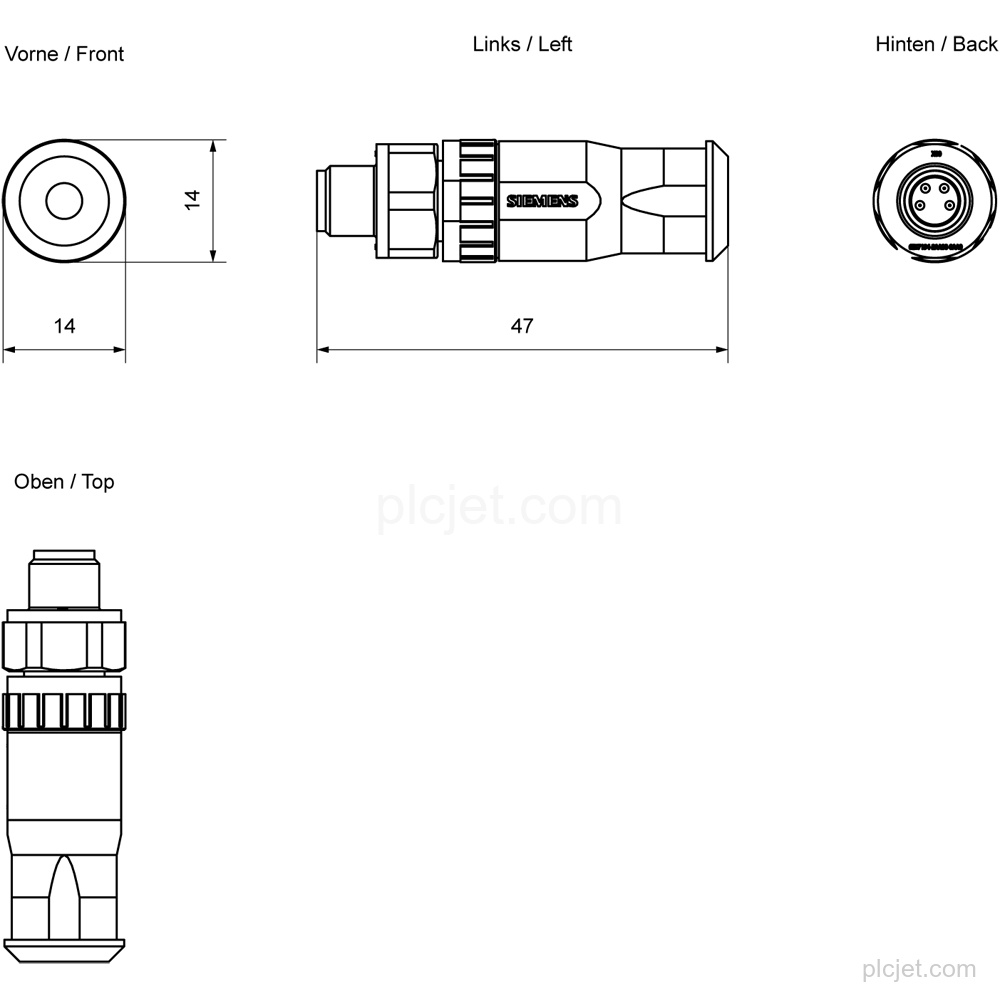

Suitable for cable diameters from 4 mm to 5.5 mm, with a 180° cable outlet; width is 14 mm and depth is 47 mm.
Ambient temperature during assembly: -30 °C to 85 °C.
Frequently Asked Questions
What is the exact product type of Siemens 6ES7194-2AA00-0AA0?
It is an M8 power connector with a male contact insert and 4 poles.
What protection and assembly temperature specifications apply?
The connector has IP65/67 protection. Ambient temperature during assembly is -30 °C to 85 °C.
What connection details should be retained for this line item?
It uses M8, 4-pole screw terminals, accepts 0.14 mm2 to 0.5 mm2 cable cross-sections, and suits cable diameters from 4 mm to 5.5 mm.
