Product Overview
Applications
Used for connecting ET-CONNECTION nodes, such as SIMATIC ET 200AL, in degree of protection IP65 / 67.
Technical Summary
| Product type | Connection plug |
|---|---|
| Product description | M8 plug connector with high degree of protection, 4-pin, metal version |
| Connection suitability | For connecting ET-CONNECTION nodes, e.g. SIMATIC ET 200AL |
| IP degree of protection | IP65/67 |
| Assembly ambient temperature | -30 °C to 80 °C |
| Storage/transportation ambient temperature | -40 °C to 80 °C |
| Cable outlet | 180° cable outlet |
Key Features
M8 plug connector for ET connection, 4-pole and shielded.
For connecting ET-CONNECTION nodes, such as SIMATIC ET 200AL, in degree of protection IP65 / 67.
IP degree of protection: IP65/67.
Metal housing with a 180° cable outlet.
Ambient temperature during assembly: -30 °C to 80 °C.

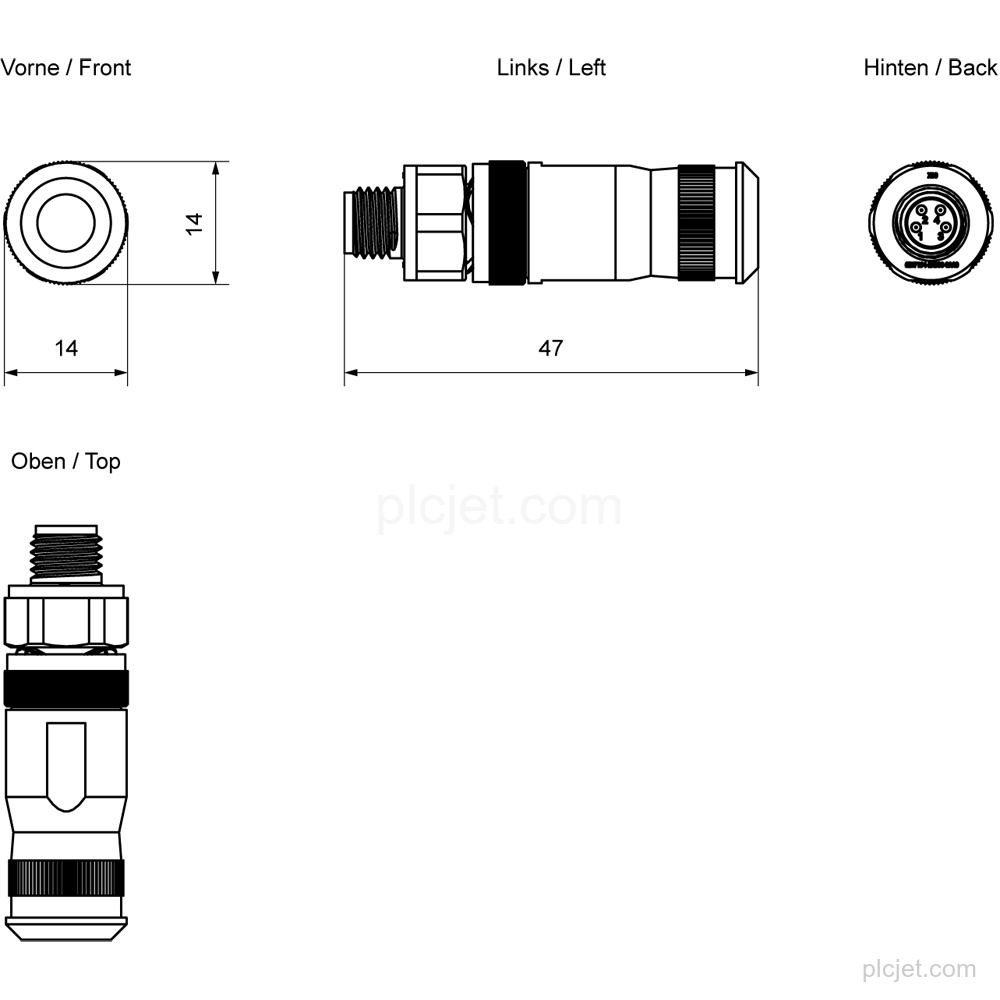

Width: 14 mm; depth: 47 mm; packaging dimensions: 11.80 x 8.50 x 1.90 cm; net weight: 0.025 kg.
Frequently Asked Questions
What is the exact product type of 6ES7194-2AB00-0AA0?
It is an M8 connection plug, 4-pole and shielded, with a metal housing.
Which ET-CONNECTION nodes can this connector connect?
It is for connecting ET-CONNECTION nodes, such as SIMATIC ET 200AL, in degree of protection IP65 / 67.
What protection rating does the connector have?
The IP degree of protection is IP65/67.
What should be included when requesting this line item for a project quotation?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
