Product Overview
Applications
Used for connection to ET 200AL for 24 V DC power supply.
Technical Summary
| Product type | Power connector |
|---|---|
| Connector type | M8, 4-pole |
| Electrical connection | Screw terminals |
| ET 200AL suitability | For connection to ET 200AL for 24 V DC power supply |
| Protection | IP65/67 |
| Cable cross-section | 0.14 mm2 to 0.5 mm2 |
| AWG conductor cross-section | 26 to 20 |
| Suitable cable diameter | 4 mm to 5.5 mm |
| Cable outlet | 180° cable outlet |
| Housing material | plastic |
Key Features
M8 plug connector with a 4-pole socket insert and screw terminals for the mains supply line.
For connection to ET 200AL for 24 V DC power supply.
IP65/67 degree of protection.
Connectable cable cross-section: 0.14 mm2 to 0.5 mm2; AWG conductor cross-section: 26 to 20; suitable cable diameter: 4 mm to 5.5 mm.

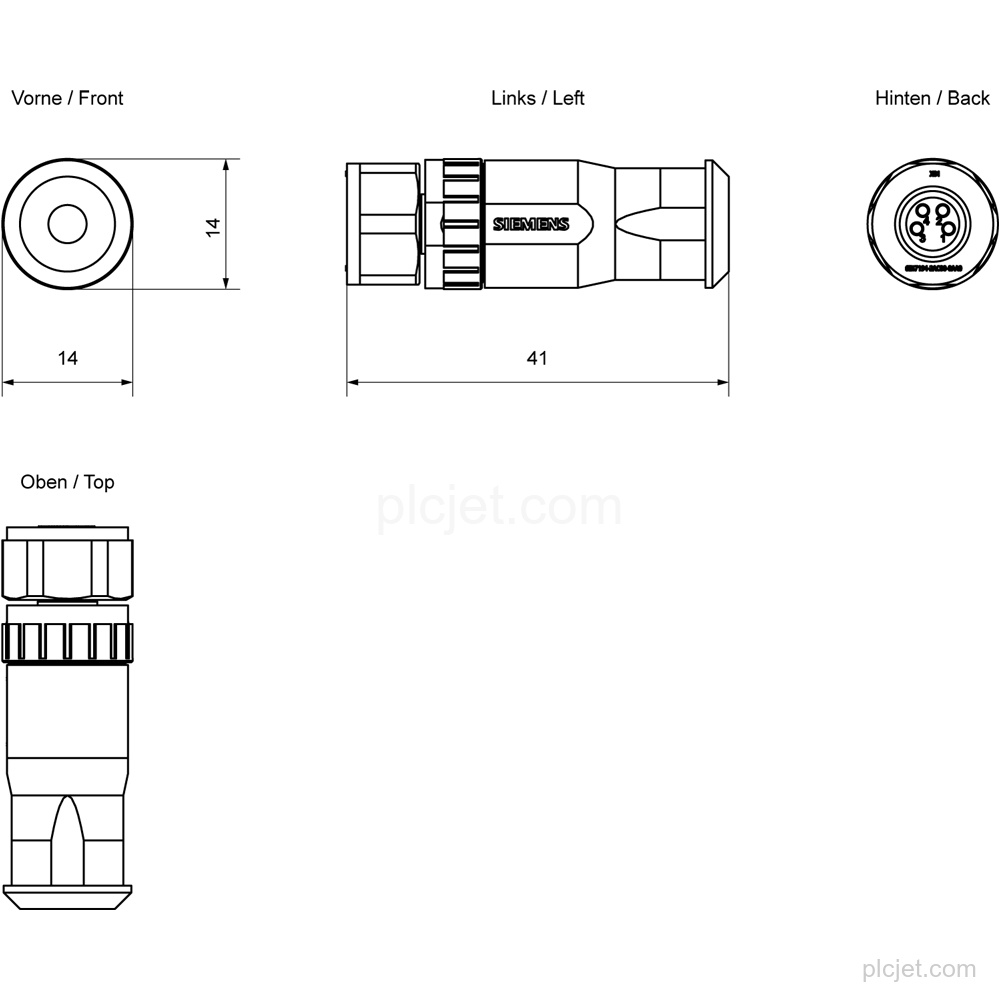

Plastic housing with a 180° cable outlet; width: 14 mm and depth: 47 mm.
Frequently Asked Questions
What is Siemens 6ES7194-2AC00-0AA0?
It is an M8 power connector with a 4-pole socket insert in a plastic version.
What connection does this power connector use?
It uses screw terminals and has an M8, 4-pole connector type.
What cable sizes can be connected?
The connectable cable cross-section is 0.14 mm2 to 0.5 mm2, the AWG conductor cross-section is 26 to 20, and the suitable cable diameter is 4 mm to 5.5 mm.
