Product Overview
Applications
Provides the PROFINET IO device interface for ET 200MP electronic modules.
Technical Summary
| Product type | IM 155-5 PN HF |
|---|---|
| Module capacity | Up to 12 I/O modules without PS; up to 30 I/O modules with additional PS |
| PROFINET interfaces | 1; 2 ports (switch) |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible range |
| Address space per module | 256 byte for input and output data respectively |
| Firmware version | V4.4 |
| Engineering | STEP 7 TIA Portal configurable/integrated from V16 |
| Product lifecycle | Announcement of product phase-out |
Key Features

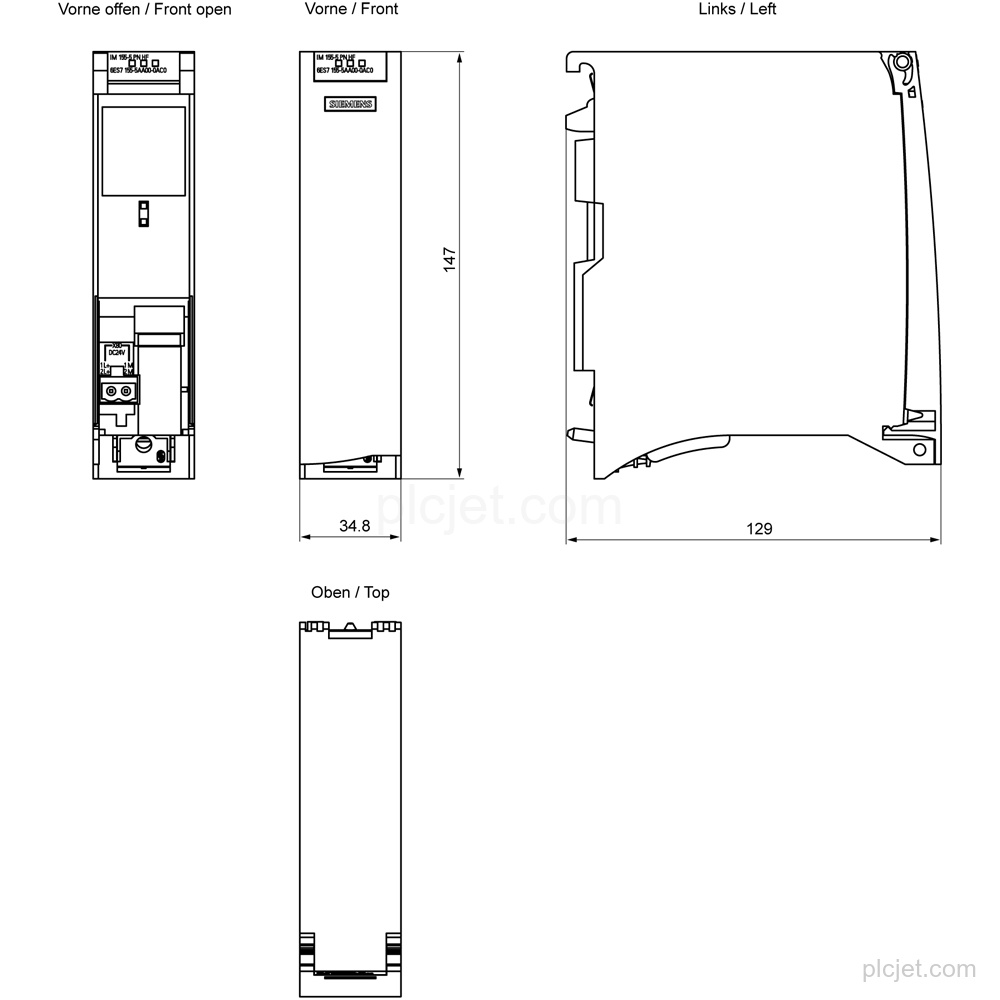

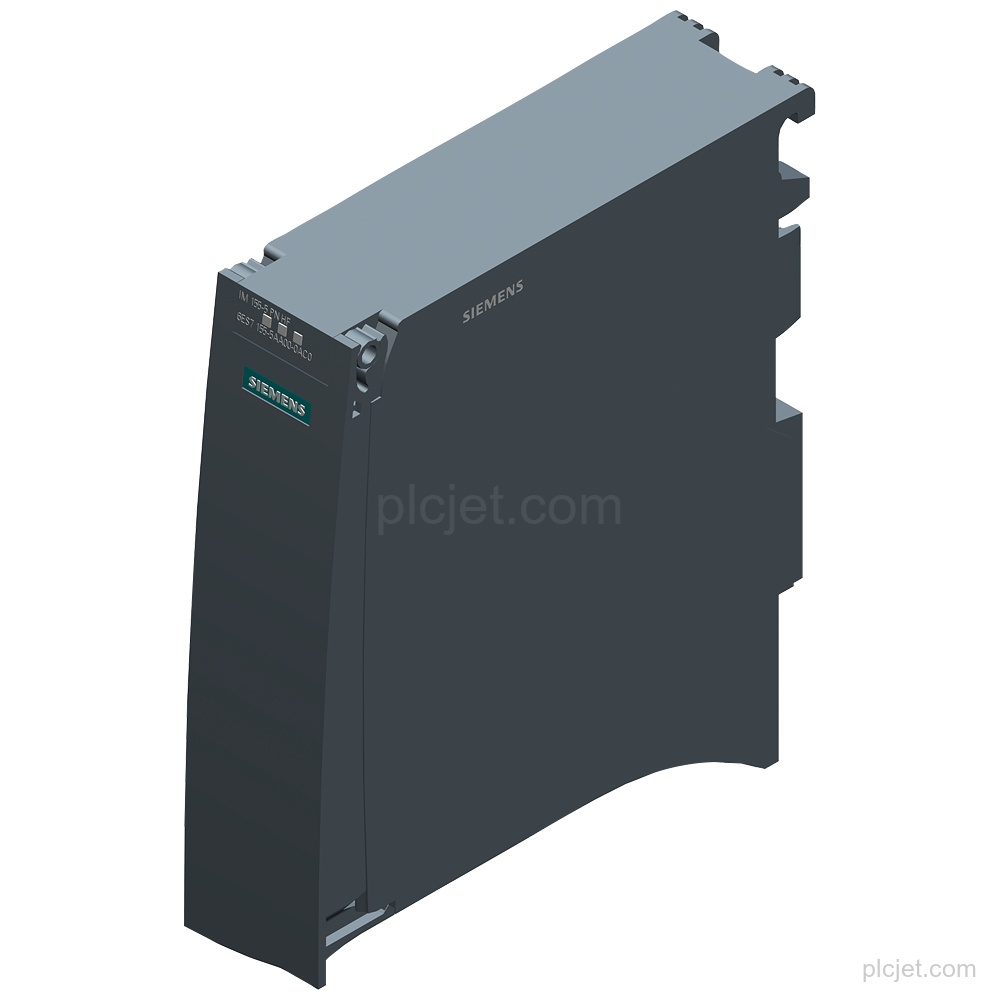

PROFINET IO device interface module IM 155-5 PN HF for ET 200MP electronic modules.
Supports up to 12 I/O modules without PS or up to 30 I/O modules with additional PS.

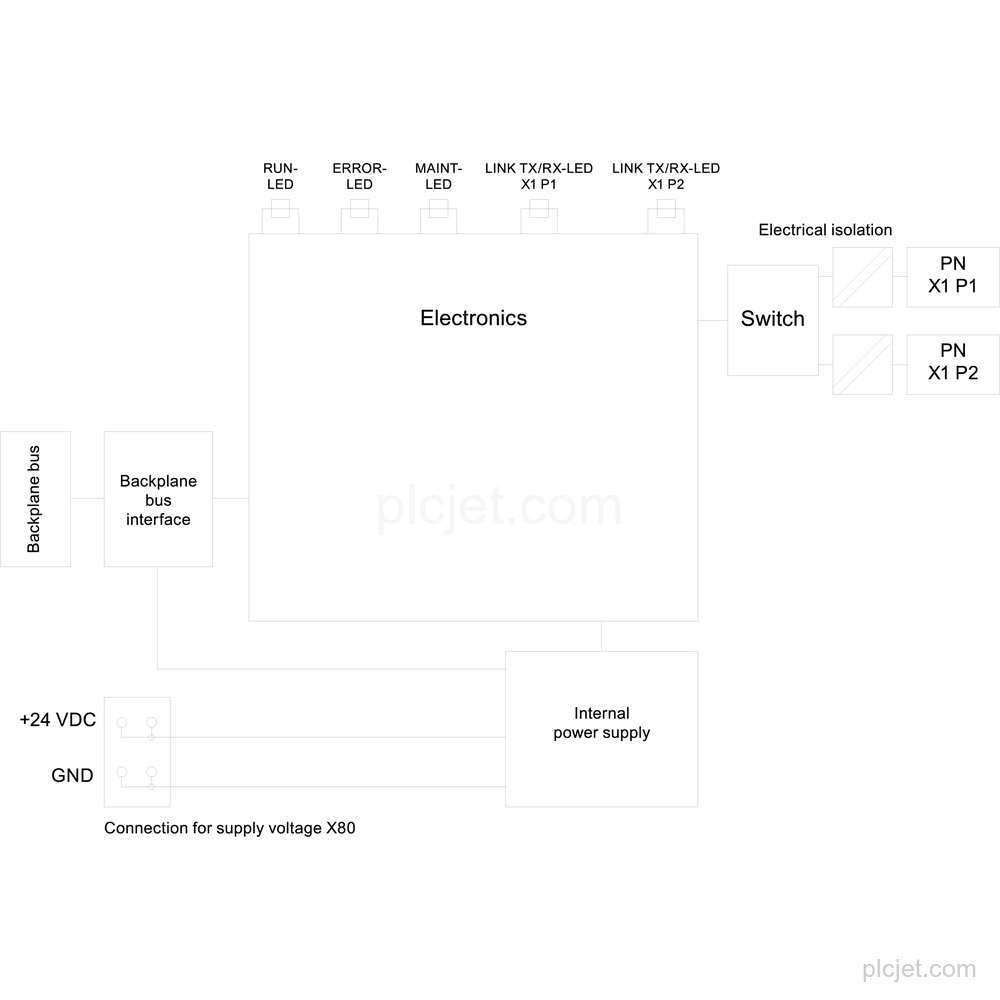

1 PROFINET interface with 2 ports and an integrated switch; RJ45 Ethernet, 100BASE-TX.
Shared device supports up to 4 IO Controllers; PROFINET MRP and S2 system redundancy are supported.
Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V; reverse polarity and short-circuit protection are supported.
Firmware version V4.4; firmware update is possible; STEP 7 TIA Portal is configurable/integrated from V16.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7155-5AA00-0AC0, product type IM 155-5 PN HF.
How many I/O modules can this interface module support?
It supports up to 12 I/O modules without PS and up to 30 I/O modules with additional PS.
What PROFINET connection does it provide?
It has 1 PROFINET interface with 2 RJ45 ports and an integrated switch, using 100BASE-TX.
What supply voltage does it use?
Rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
