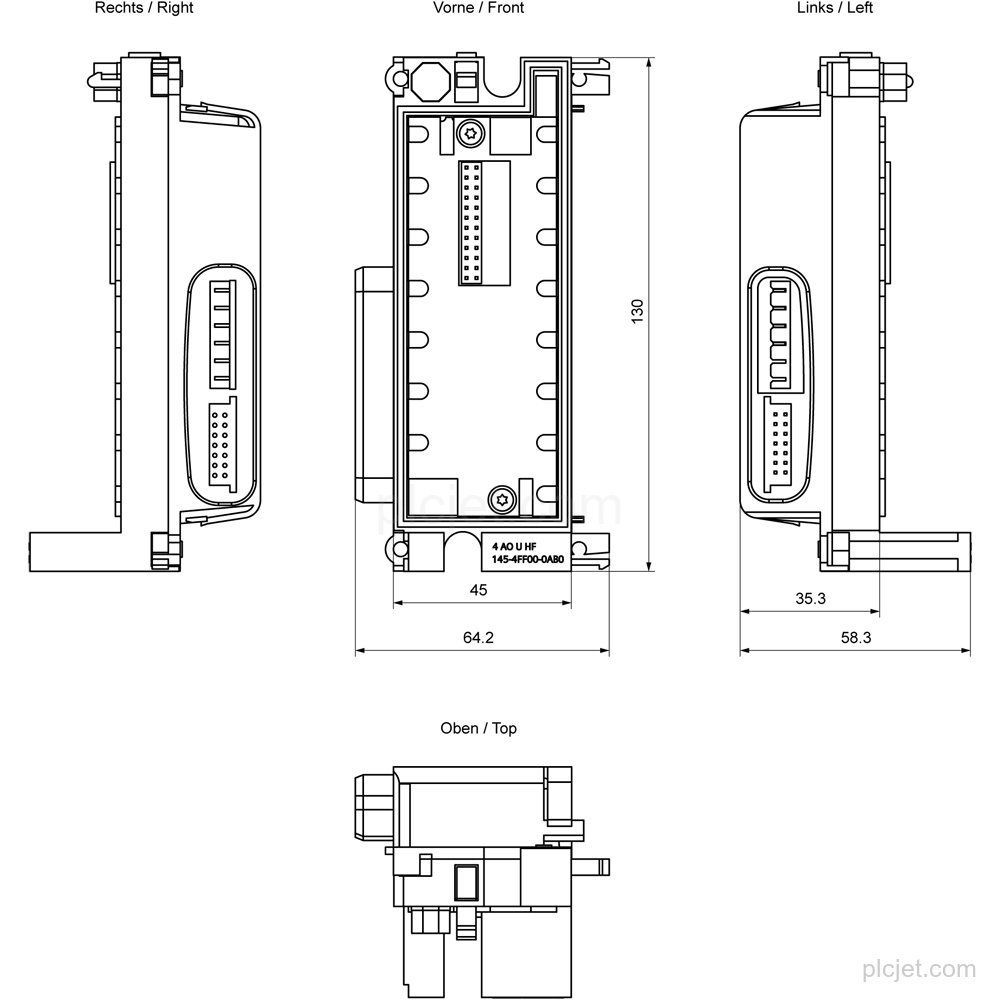

Product Overview
Technical Summary
| Product identity | SIMATIC DP electronic module for ET 200 PRO, 6ES7145-4FF00-0AB0 |
|---|---|
| Analog outputs | 4 |
| Rated supply voltage | 24 V DC |
| Output ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Voltage output short-circuit current, max. | 50 mA |
| Cycle time (all channels), max. | 3 ms |
| Load impedance with voltage outputs, min. | 1 000 Ω |
| Resolution with overrange, max. | 15 bit at -10 to +10 V; 14 bit at 1 to 5 V; 15 bit at 0 to 10 V |
| Diagnostics | Channel diagnostics; diagnostic alarm parameterizable; short-circuit diagnosis per channel, not in zero range |
| Configuration exclusion | Connection module IO 6ES7194-4..00-0AA0 ordered separately |

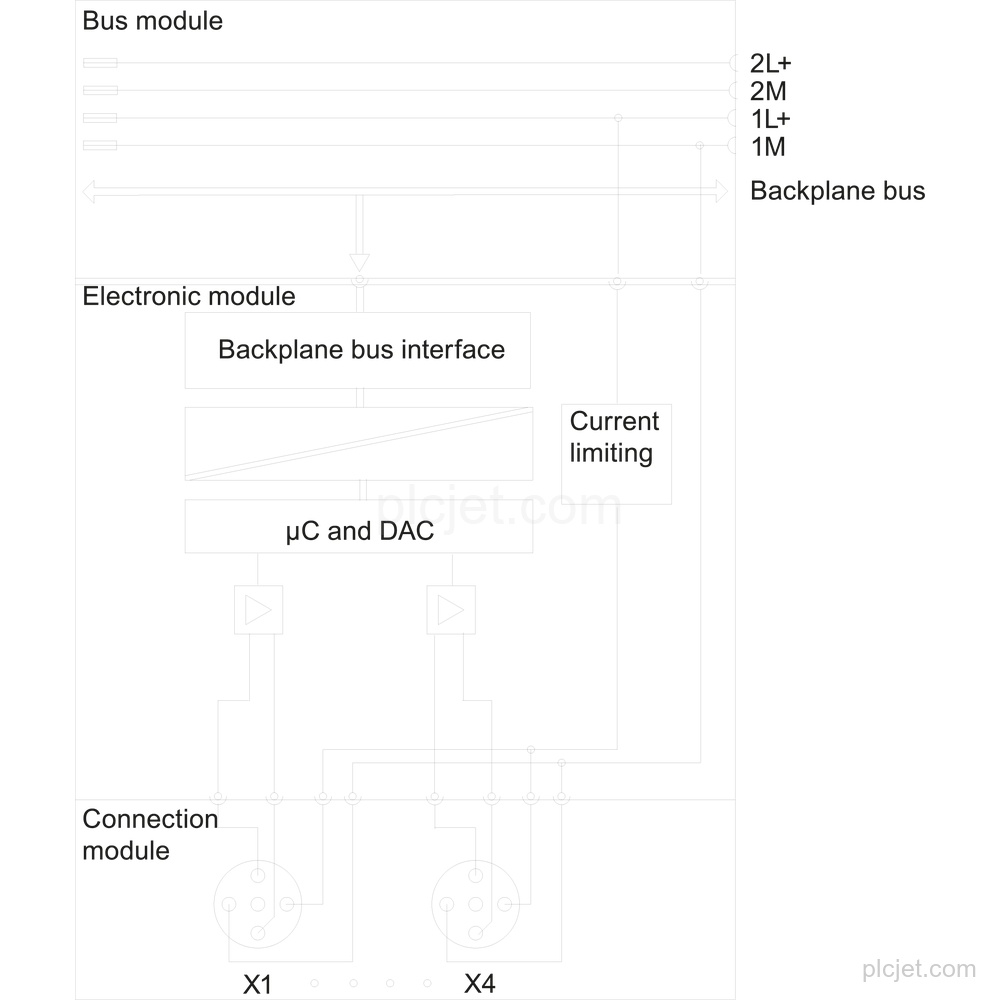

Key Features
The module has 4 analog outputs with 0 to 10 V, 1 V to 5 V, and -10 V to +10 V output ranges.
Rated supply voltage is 24 V DC; reverse polarity protection is provided against destruction.
Diagnostic information is readable, with parameterizable diagnostic alarms and short-circuit diagnosis per channel, not in the zero range.
Voltage outputs have electronic short-circuit protection to chassis, with two-wire and four-wire actuator connections.
The bus module is included; the connection module IO 6ES7194-4..00-0AA0 is ordered separately.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7145-4FF00-0AB0, a SIMATIC DP electronic module for ET 200 PRO.
How many analog outputs and output ranges does it have?
It has 4 analog voltage outputs and supports 0 to 10 V, 1 V to 5 V, and -10 V to +10 V.
What diagnostic functions are provided?
Diagnostic information is readable, diagnostic alarms are parameterizable, and short-circuit diagnosis is available per channel, not in the zero range.
What is included or ordered separately in this configuration?
The bus module is included. Connection module IO 6ES7194-4..00-0AA0 is ordered separately.
