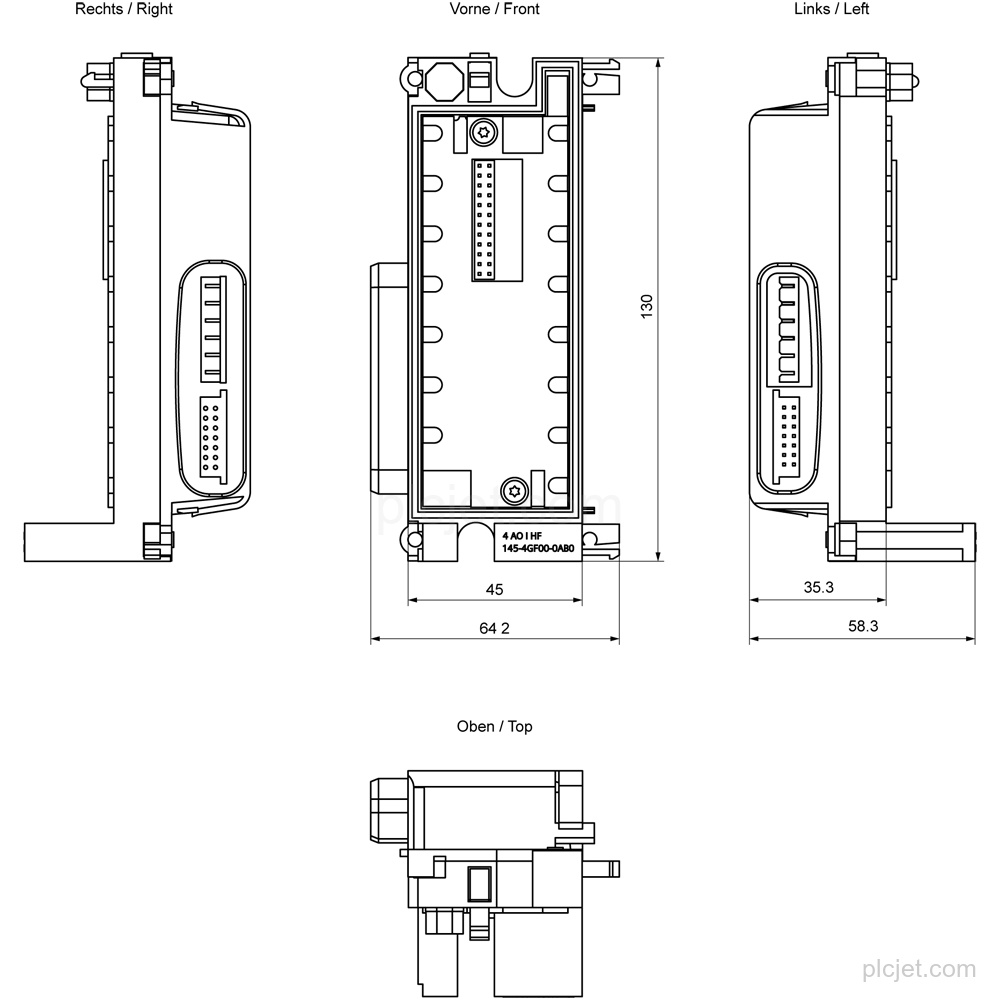

Product Overview
Technical Summary
| Rated supply voltage | 24 V DC |
|---|---|
| Analog outputs | 4 |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum cycle time, all channels | 3 ms |
| Resolution with overrange | 15 bit at ±20 mA; 14 bit at 0 to 20 mA; 15 bit at 4 to 20 mA |
| Maximum load impedance with current outputs | 600 Ω |
| Diagnostics | Channel diagnostics; parameterizable diagnostic alarm; wire break per channel, not in zero range |
| Connection of actuators | Two-wire and four-wire connection for current output |
Key Features
Has 4 analog outputs with a maximum cycle time of 3 ms for all channels.
Supports 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
Rated supply voltage is 24 V DC, with reverse polarity protection against destruction and short-circuit protection per module for the actuator supply.
Has channel diagnostics, parameterizable diagnostic alarms, readable diagnostic information, and wire-break detection per channel outside the zero range.

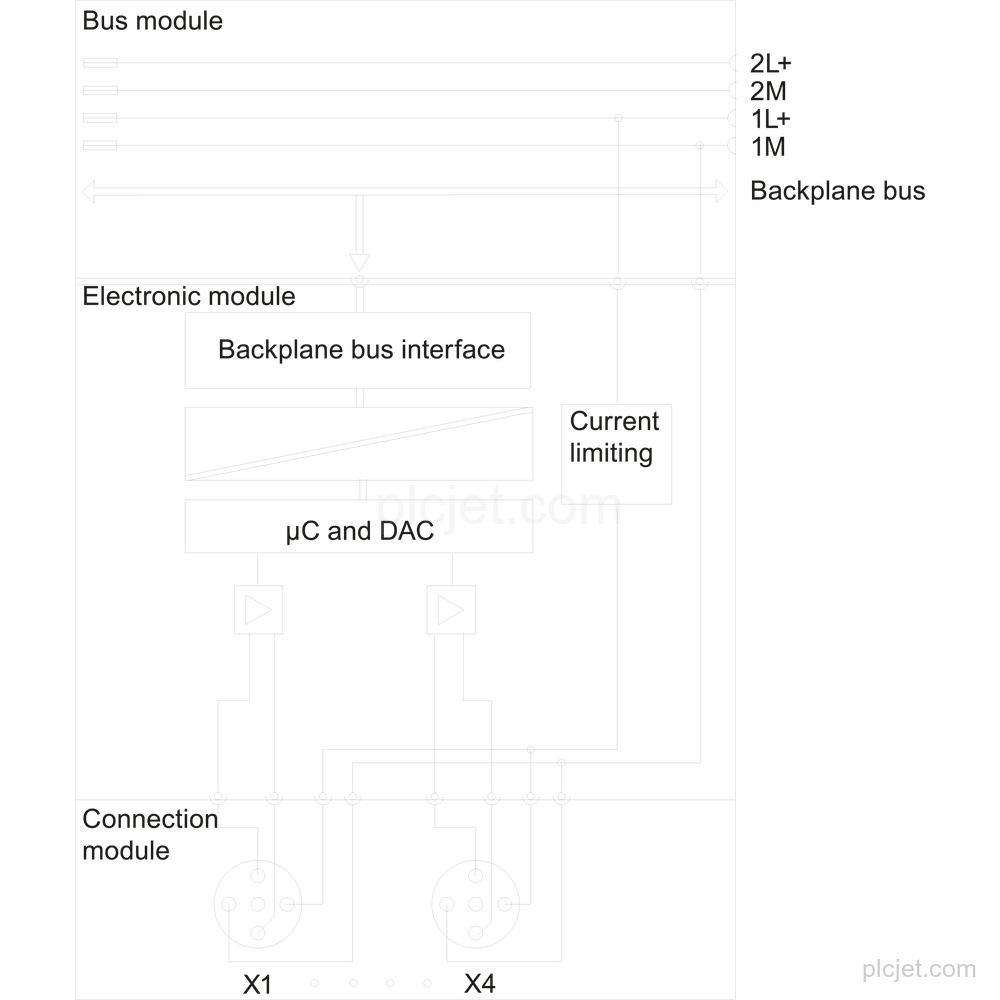

Supports two-wire and four-wire actuator connections for current output. The bus module is included; connection module IO 6ES7194-4..00-0AA0 is ordered separately.
Frequently Asked Questions
What is the exact product type?
It is Siemens 6ES7145-4GF00-0AB0, a SIMATIC DP electronic module for ET 200 PRO with 4 analog current outputs.
Which current output ranges does 6ES7145-4GF00-0AB0 support?
It supports 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
What connection options are available for the current outputs?
The module supports two-wire and four-wire actuator connections for current output.
Is the connection module included?
It is without connection module IO 6ES7194-4..00-0AA0; that connection module must be ordered separately. The bus module is included.
