Product Overview
Applications
Coupling with the Festo valve terminal CPV-10 through a pneumatic interface with 16 digital outputs.

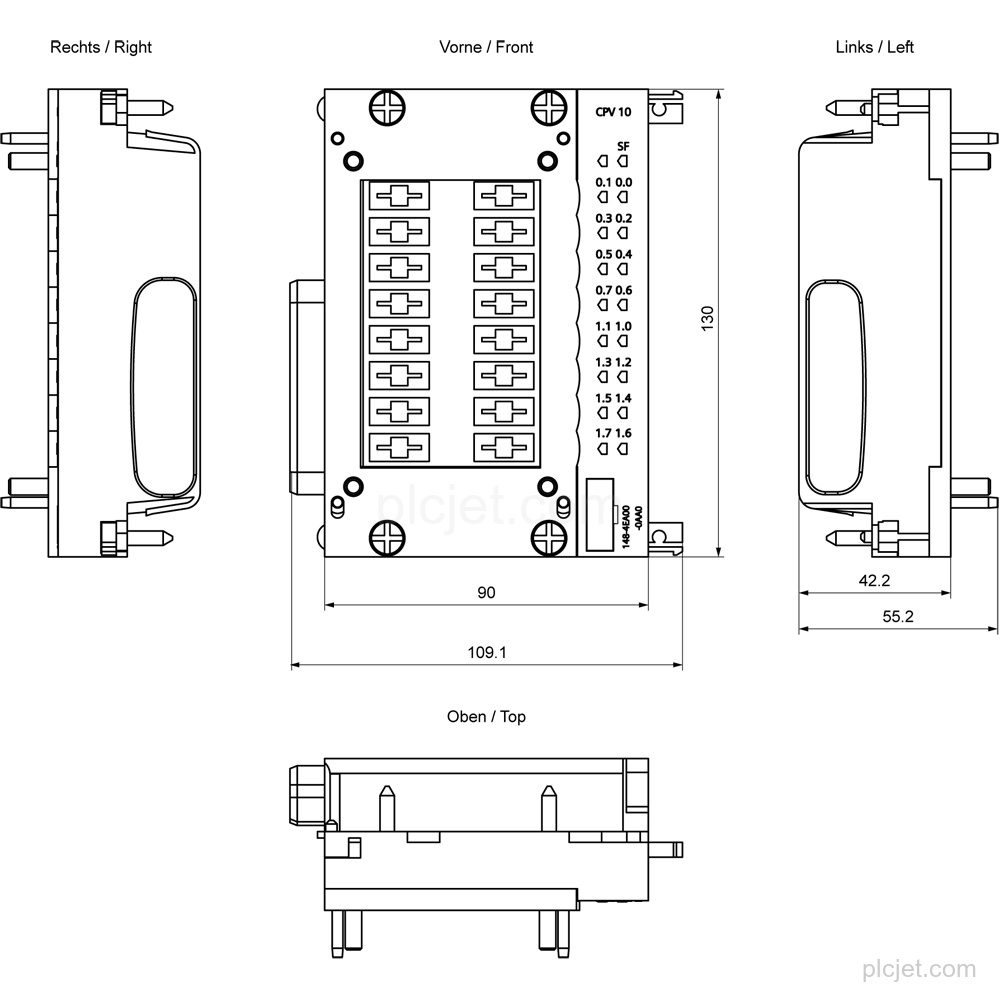

Technical Summary
| Product lifecycle | Active Product |
|---|---|
| Interface function | Pneumatic interface for coupling with Festo valve terminal CPV-10 |
| Digital outputs | 16 |
| Rated load voltage 2L+ | 24 V DC |
| Connectable valves, max. | 16 |
| Permissible working pressure | 3 bar to 8 bar |
| Rated flow rate | 400 l/min |
| Signal "1" output current | 12 mA rated value; 11 mA to 15 mA permissible range |
| Switching frequency with inductive load, max. | 25 Hz |
| Bus module | Included |
| Power loss, typ. | 2.6 W |
| Potential separation | Yes, between backplane bus and all other circuit components |

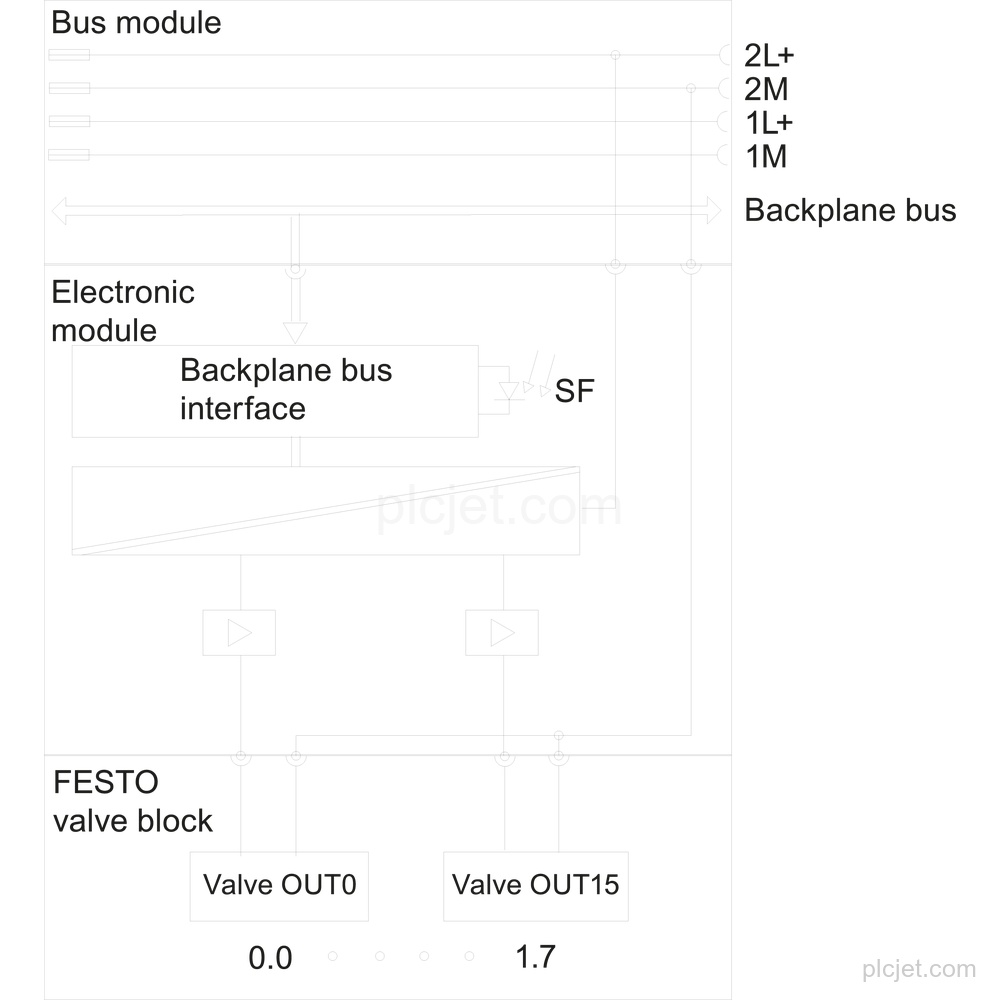

Key Features
SIMATIC DP pneumatic interface for coupling with the Festo valve terminal CPV-10.
Has 16 digital outputs and supports up to 16 connectable valves.
Rated load voltage 2L+ is 24 V DC, with short-circuit protection and reverse polarity protection.
Signal "1" output current has a rated value of 12 mA and a permissible range of 11 mA to 15 mA.
Has a diagnostics function, diagnostic alarm, readable diagnostic information, and group error SF and digital output status LEDs.
Includes the bus module.
Frequently Asked Questions
What is the exact product identity?
It is the Siemens 6ES7148-4EA00-0AA0 SIMATIC DP pneumatic interface for coupling with the Festo valve terminal CPV-10.
How many digital outputs and valves does it support?
It has 16 digital outputs and supports up to 16 connectable valves.
What load voltage does it use?
The rated load voltage 2L+ is 24 V DC. Short-circuit protection and reverse polarity protection are included.
What is included in this configuration?
It includes the bus module.
