Product Overview
Technical Summary
| Digital inputs | 16 |
|---|---|
| Rated supply voltage | 24 V DC |
| Input current from supply voltage 1L+, max. | 120 mA; Typical |
| Input current from backplane bus 3.3 V DC, max. | 20 mA |
| Safety performance level | e according to ISO 13849-1 |
| Safety integrity level | 3 according to IEC 61508 |
| Communication | PROFIsafe |
Key Features
The module has 16 digital inputs and supports a 24 V DC rated supply voltage.
The exact line item is a SIMATIC DP ET200 PRO fail-safe electronic module with PROFIsafe.
In safety mode, the module achieves performance level e according to ISO 13849-1 and SIL 3 according to IEC 61508.
Reverse polarity protection is available; power supply according to NEC Class 2 is not required.

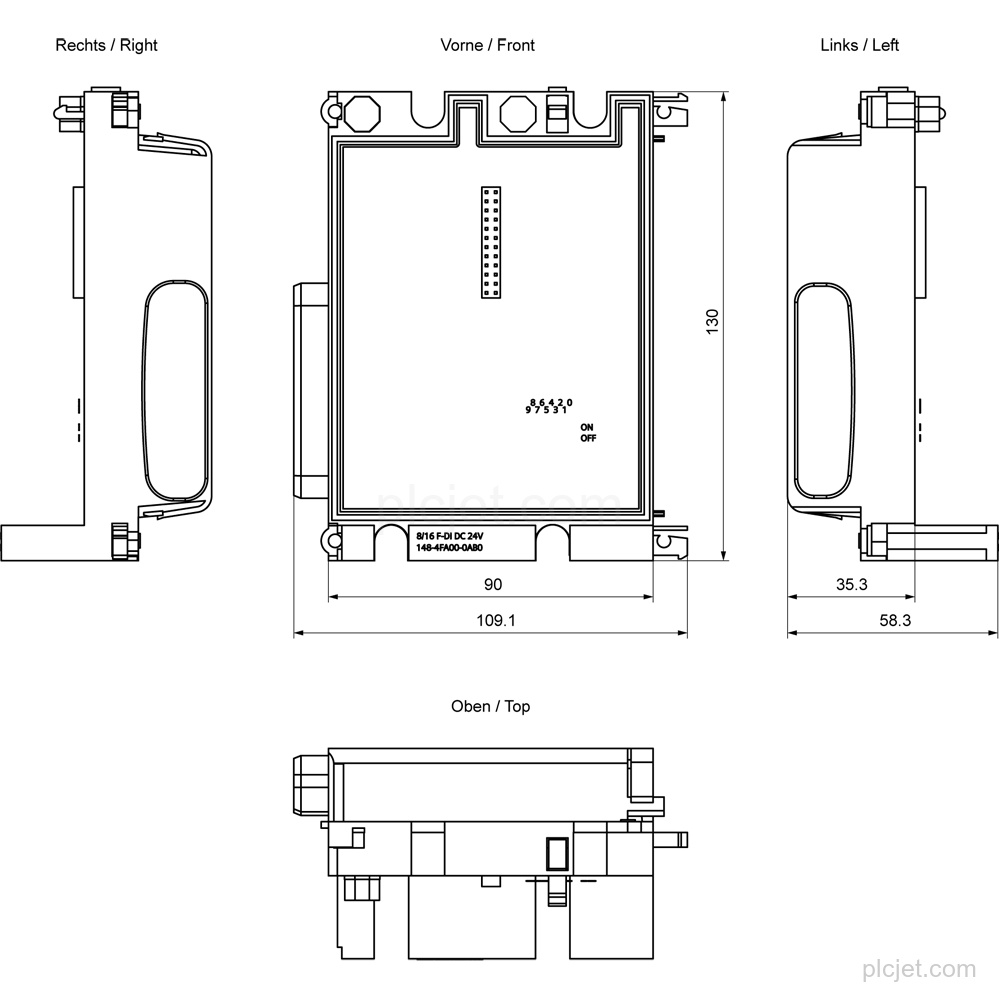

Overall dimensions are 90 mm width, 130 mm height, and 65 mm depth.
Product lifecycle: Active Product.
Frequently Asked Questions
What is Siemens 6ES7148-4FA00-0AB0?
It is a SIMATIC DP ET200 PRO fail-safe electronic module with 16 digital inputs, 24 V DC supply, and PROFIsafe.
How many digital inputs does this module have?
It has 16 digital inputs.
What safety levels does the module support?
In safety mode, it supports performance level e according to ISO 13849-1 and SIL 3 according to IEC 61508.
What configuration details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines for the exact 6ES7148-4FA00-0AB0 line item.
