Technical Summary
| Product type | IM 154-2 DP HF |
|---|---|
| Interface/bus type | PROFIBUS DP |
| Maximum transmission rate | 12 Mbit/s |
| Rated supply voltage | 24 V DC |
| Rated load voltage 2L+ | 24 V DC |
| Input addressing volume | 244 byte |
| Output addressing volume | 244 byte |
| PROFIsafe | Yes |
| PROFINET IO protocol | No |
| Protection | Reverse polarity protection; short-circuit protection over exchangeable fuses |
Key Features
Product type designation: IM 154-2 DP HF. Interface/bus type: PROFIBUS DP, with transmission rate up to 12 Mbit/s.
Rated supply voltage: 24 V DC. Rated load voltage 2L+: 24 V DC.
Inputs: 244 byte. Outputs: 244 byte.
Supports PROFIsafe, PROFIBUS, SYNC, FREEZE, and direct data exchange for slave-to-slave communication.
Reverse polarity protection is provided for the supply and load voltage against destruction. Short-circuit protection uses exchangeable fuses. Diagnostic and hardware interrupts are parameterizable.

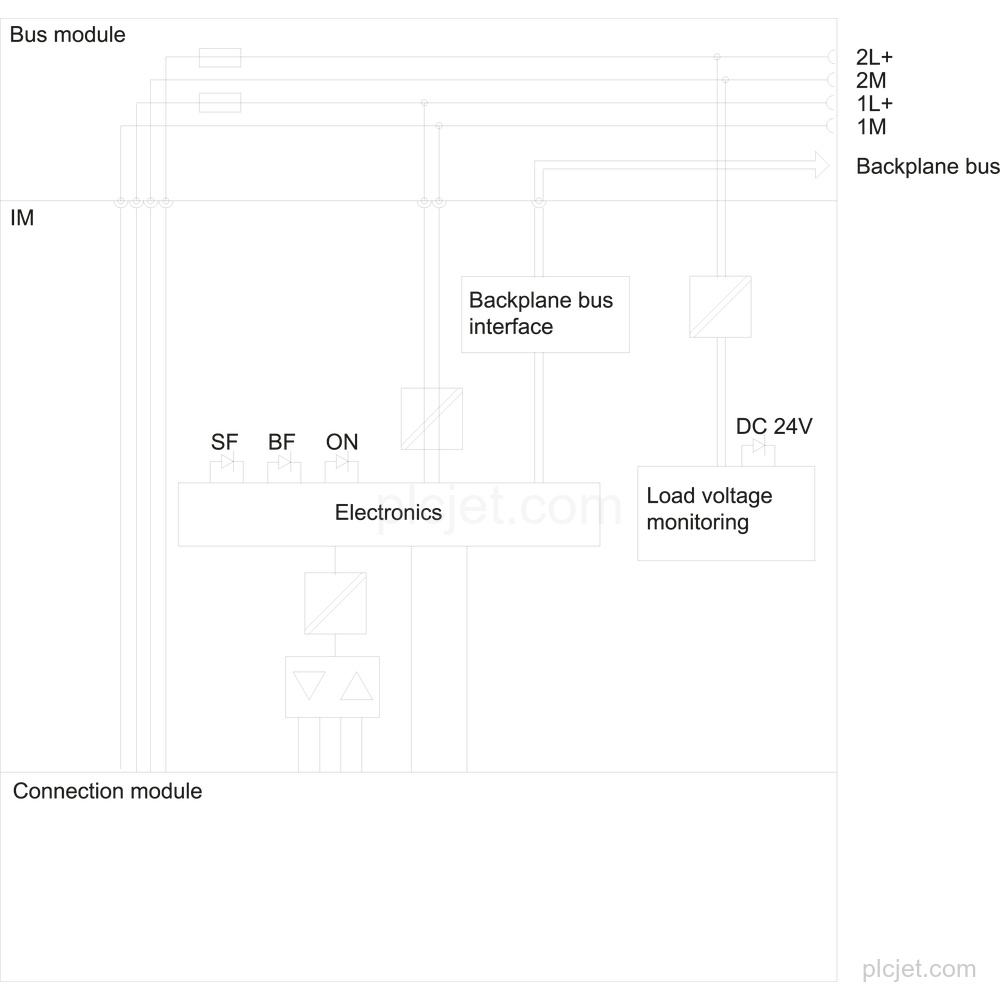

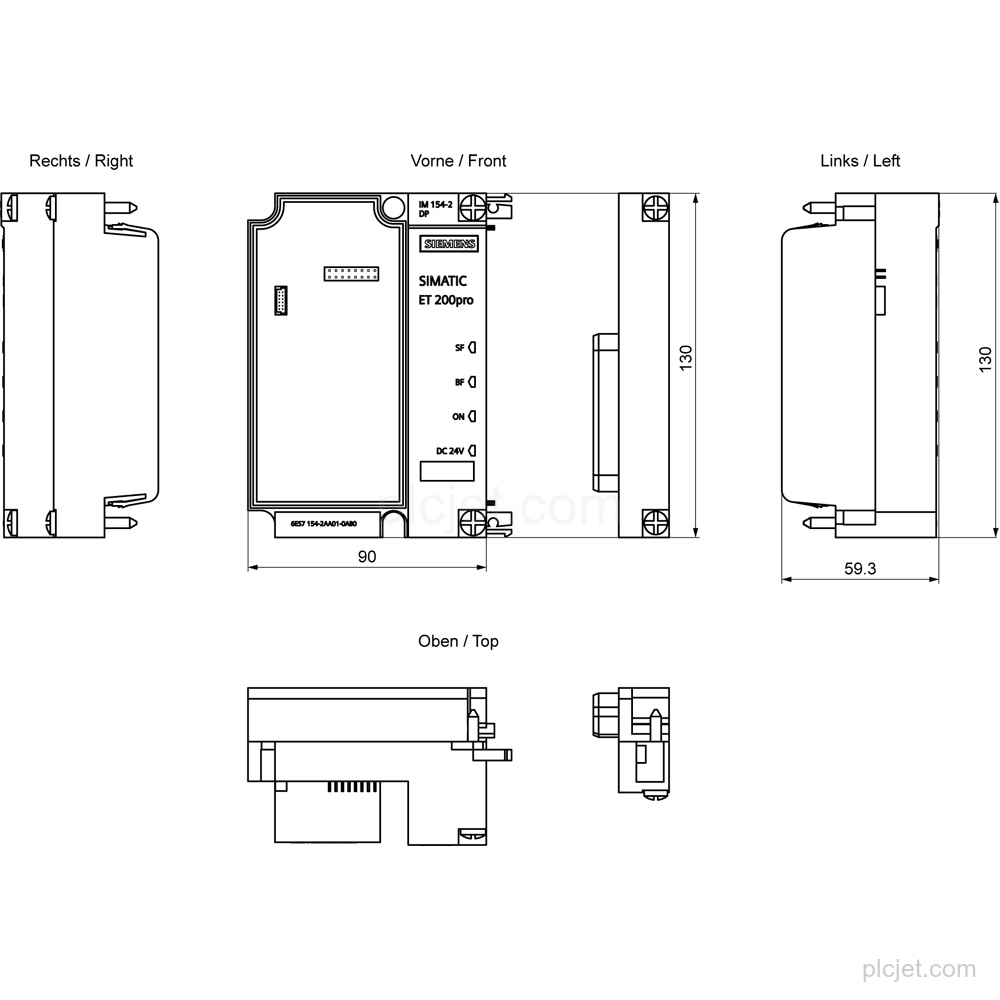

Includes a termination module. The connection module in 6ES7194-4A.00-0AA0 is ordered separately. Dimensions: 90 mm wide, 130 mm high, and 60 mm deep.
