Product Overview
Applications
Used for direct connection of the ET 200 Pro PROFIBUS interface module, including PROFIBUS DP termination and address setting.
Technical Summary

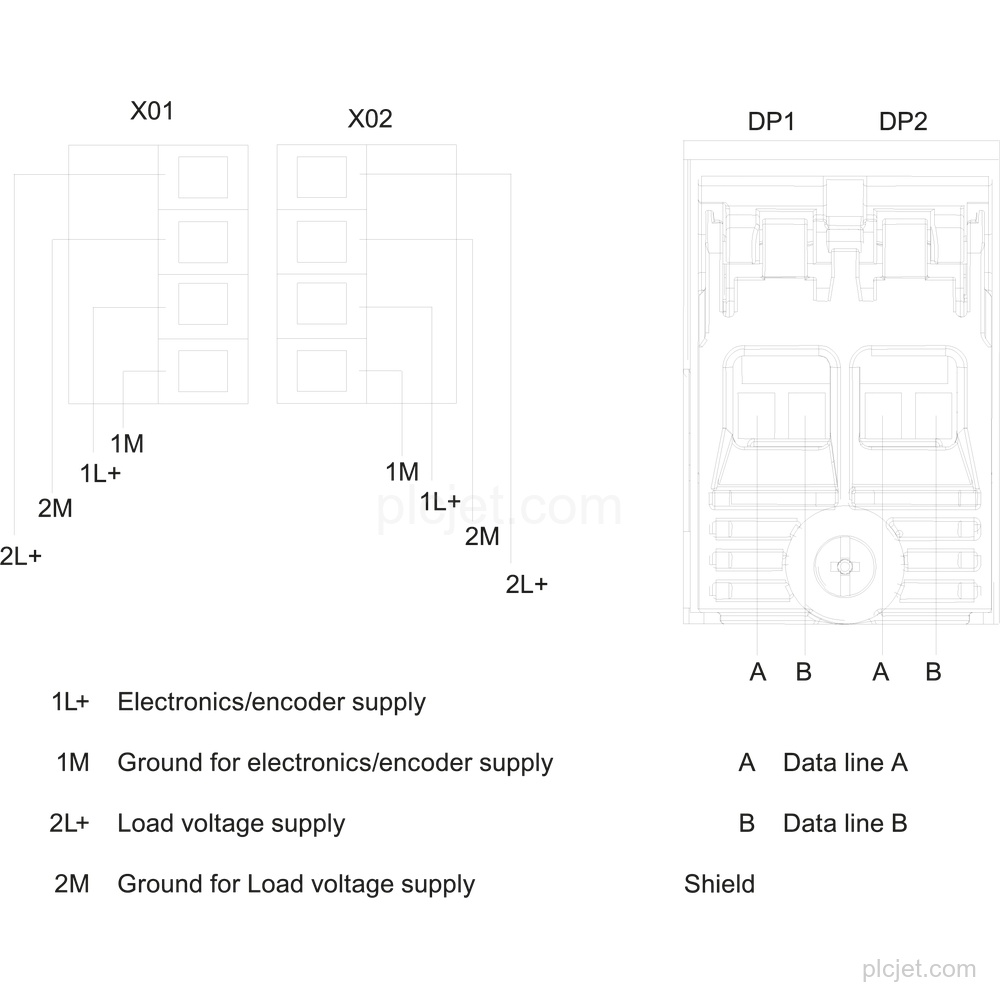

| Product identity | 6ES7194-4AC00-0AA0 |
|---|---|
| Product family | SIMATIC DP; ET 200 Pro |
| Connection type | Direct PROFIBUS DP connection |
| Integrated functions | Address setter and terminating resistor for PROFIBUS DP |
| Power connection | 24 V power |
| Cable glands | Up to 6 x M20 cable glands |
| Input current from supply voltage 1L+ | Max. 16 A |
| Input current from load voltage 2L+ without load | Max. 16 A |
| Product lifecycle | Active Product; product phase-out planned—see SIOS 109989704 |
Key Features
Direct connection for the PROFIBUS interface module ET 200 Pro.
Has an integrated address setter and terminating resistor for PROFIBUS DP.
Terminal module direct supports PROFIBUS DP and 24 V power, with up to 6 x M20 cable glands.
Input current is max. 16 A from supply voltage 1L+ and max. 16 A from load voltage 2L+ without load.

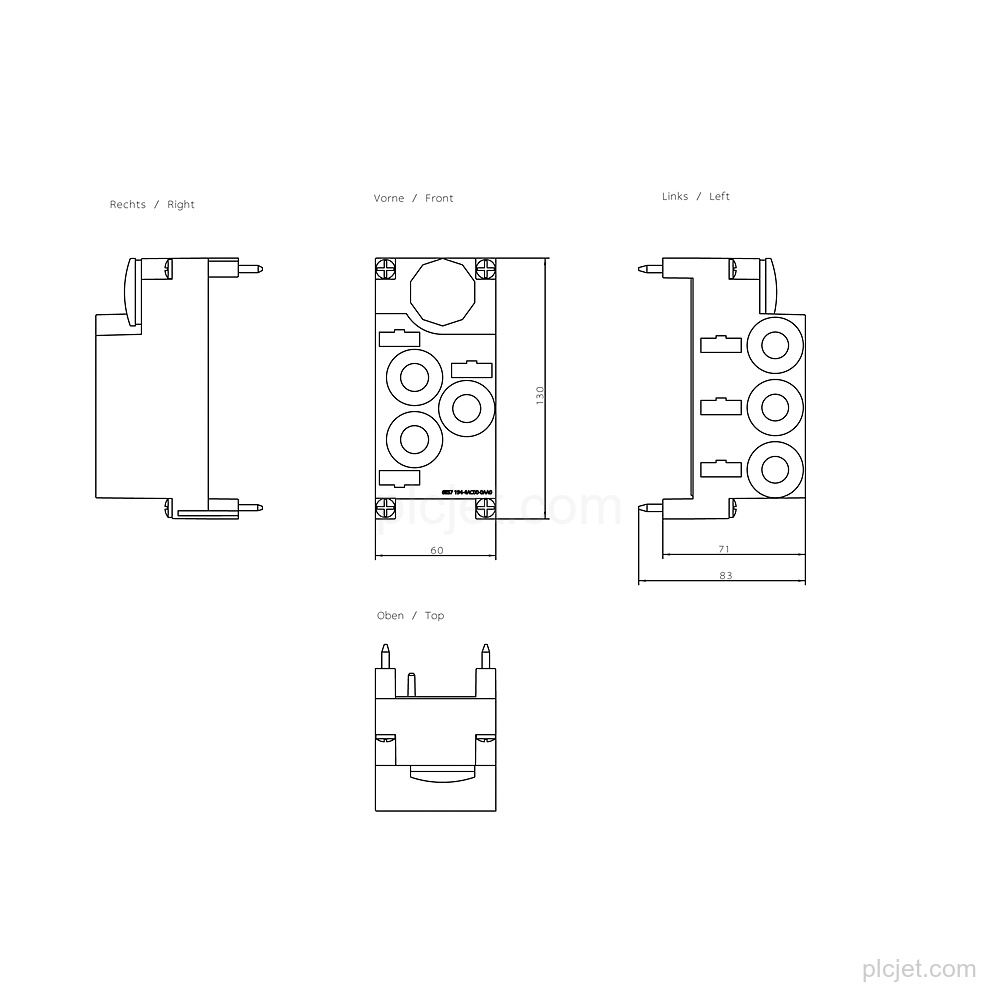

Dimensions: 90 mm width x 130 mm height x 100 mm depth; weight, approx. 292 g.
Active Product; product phase-out planned—see SIOS 109989704.
Frequently Asked Questions
What is the exact product identity of this PROFIBUS connection module?
It is Siemens 6ES7194-4AC00-0AA0, a SIMATIC DP connection module for the PROFIBUS interface module ET 200 Pro.
What functions are integrated?
It has an integrated address setter and terminating resistor for PROFIBUS DP.
What connection and cable-gland configuration does it have?
The terminal module direct supports PROFIBUS DP and 24 V power, with up to 6 x M20 cable glands.
What dimensions and weight should be retained in the BOM?
Dimensions are 90 mm x 130 mm x 100 mm, and weight is approx. 292 g.
