Product Overview
Applications
Feeds load voltage 2L+ within a station.
Technical Summary
| Product type | SIMATIC DP connection module for PM-E ET 200 PRO |
|---|---|
| Connection | Direct connection |

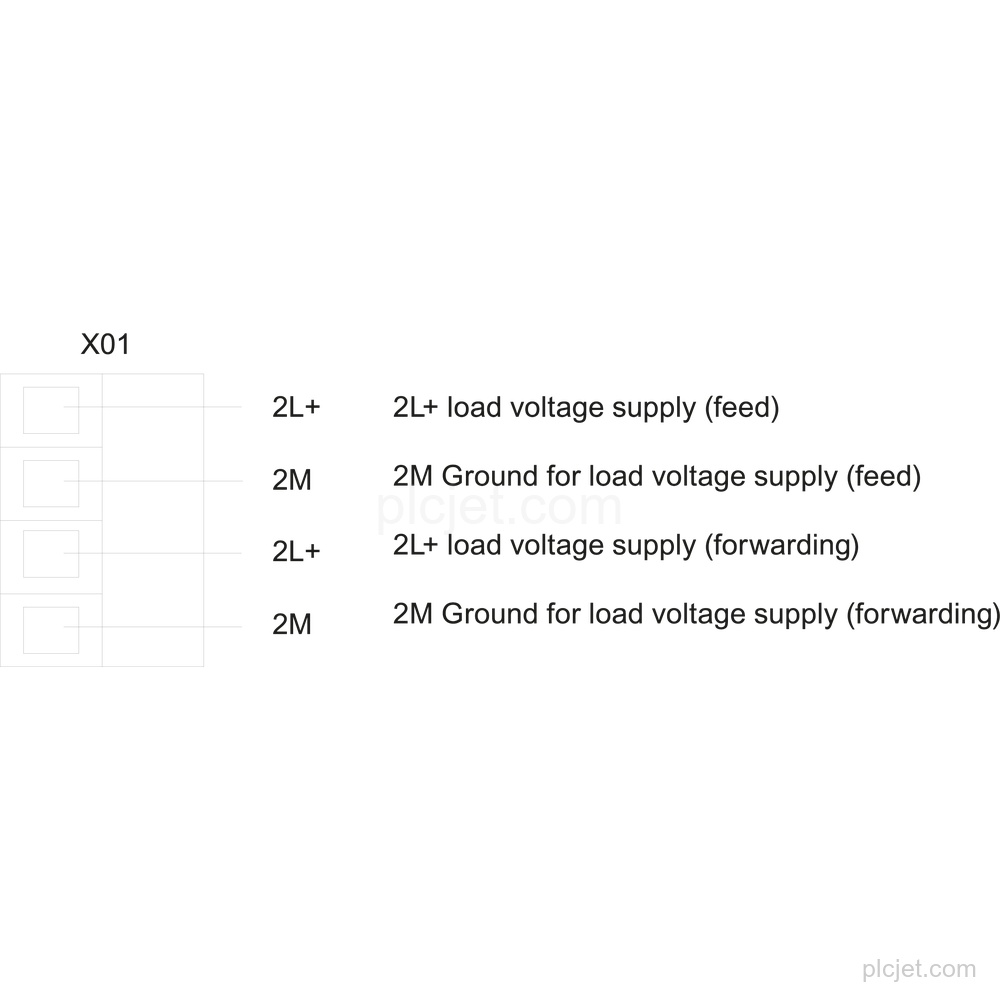

| Load-voltage function | Feeding of load voltage 2L+ within a station |
| Cable glands | Up to 2 M20 cable glands |
| Input current | From load voltage 2L+ (without load), max. 16 A |
| Product lifecycle | Active Product |
Key Features
Connection module for the PM-E ET 200 PRO power module with direct connection.
Feeds load voltage 2L+ within a station.
Supports up to 2 M20 cable glands.
Input current from load voltage 2L+ without load: max. 16 A.

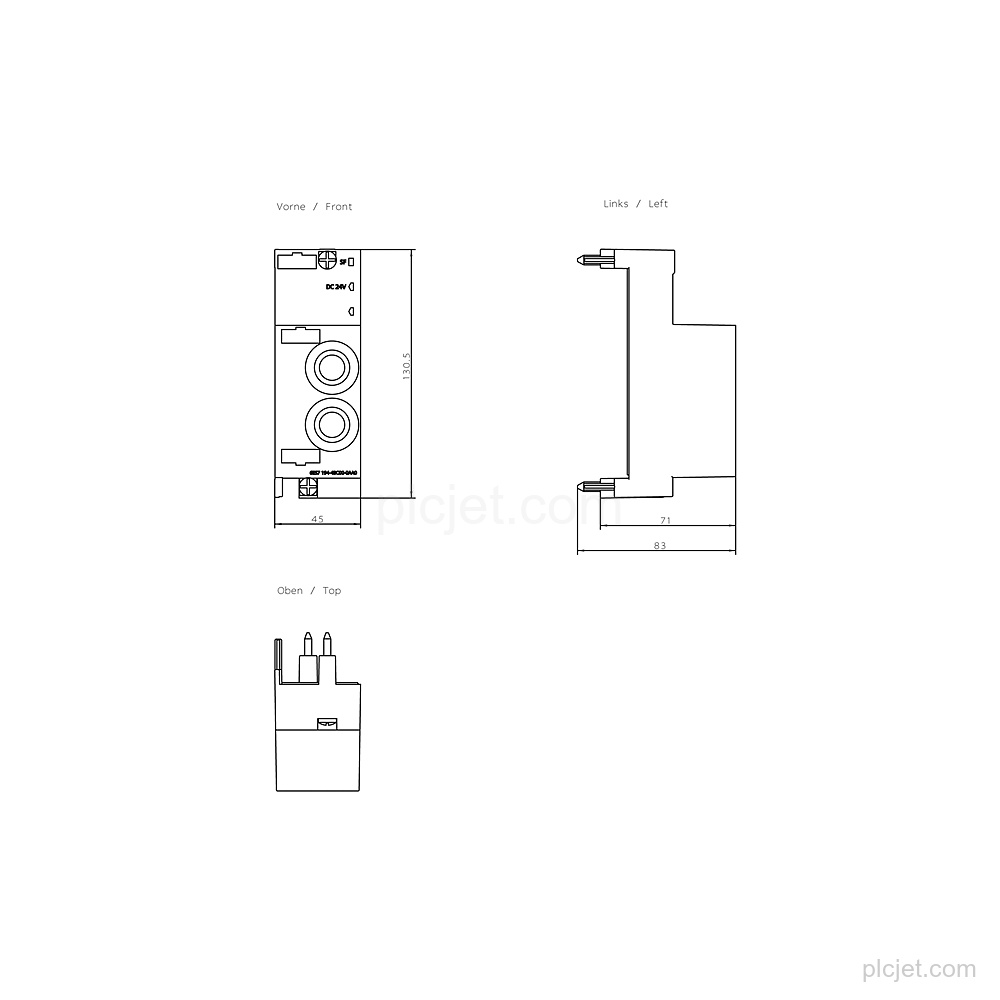

Dimensions: 45 mm width, 130 mm height, and 100 mm depth.
Product lifecycle: Active Product.
Frequently Asked Questions
What is Siemens 6ES7194-4BC00-0AA0?
It is a SIMATIC DP connection module for the PM-E ET 200 PRO power module with direct connection.
What load-voltage function does this connection module provide?
It feeds load voltage 2L+ within a station.
How many cable glands can it support?
It supports up to 2 M20 cable glands.
What is the maximum input current?
The input current from load voltage 2L+ without load is max. 16 A.
What project details should accompany this line item?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
