Product Overview
Technical Summary
| Digital input configuration | 16 DI 24 V DC |
|---|---|
| Digital output configuration | 4 DIO/4DO 24 V DC/0.5A |
| Connection format | 8xM12 |
| Product family | SIMATIC DP, ET 200 PRO |
Key Features
Connection module for a digital electronic module with 16 DI 24 V DC and 4 DIO/4DO 24 V DC/0.5A.

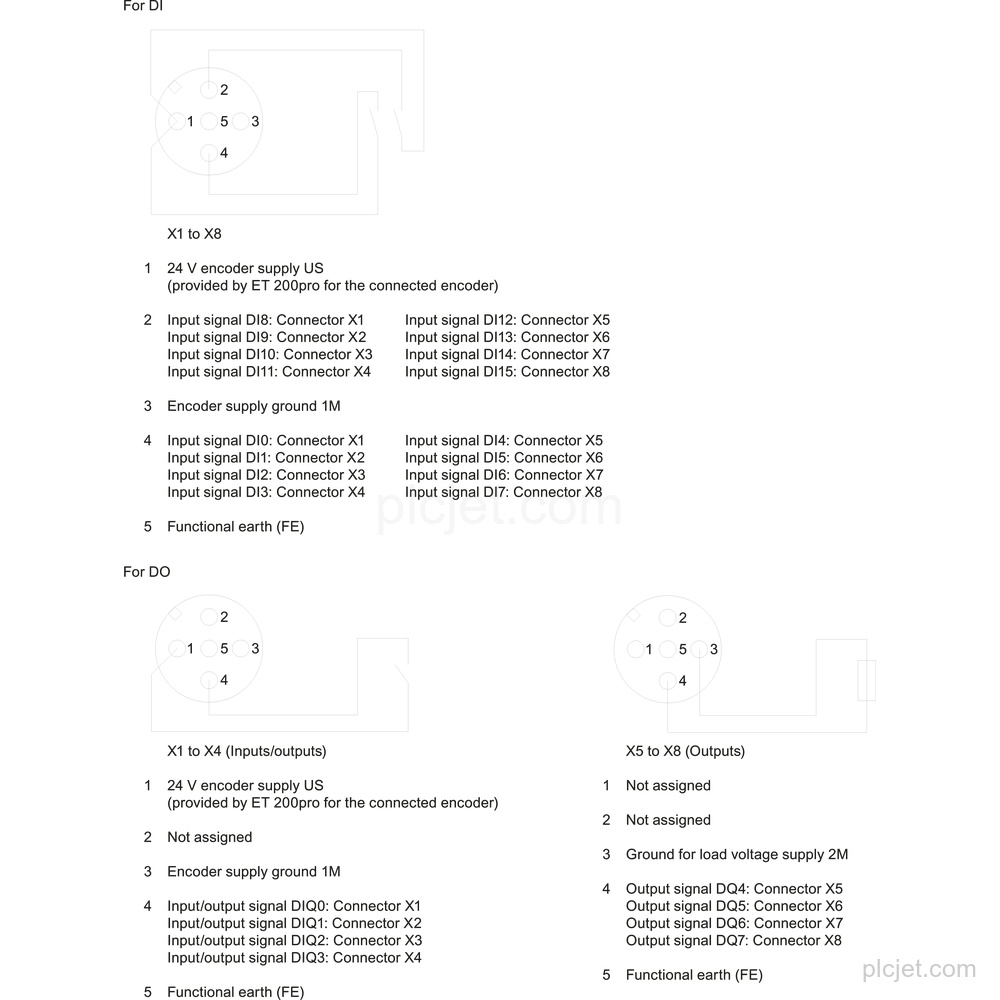

8xM12 connections; function description: CM IO 8 x M12 D.
SIMATIC DP connection module for ET 200 PRO.

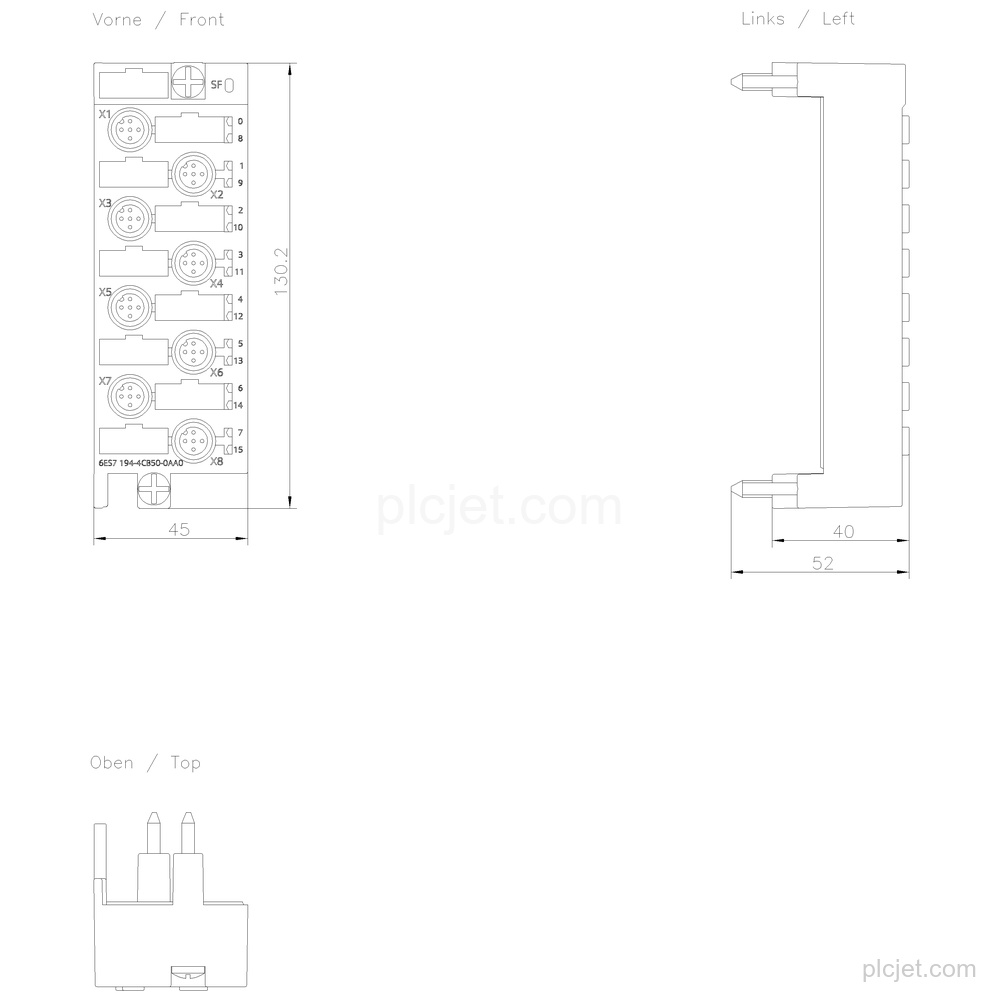

Width: 45 mm; height: 130 mm; depth: 39 mm.
Weight, approx.: 305 g; collected net weight: 0.354 kg.
Active Product.
Frequently Asked Questions
What is Siemens 6ES7194-4CB50-0AA0?
It is a SIMATIC DP connection module for a digital electronic module in the ET 200 PRO family.
What digital I/O configuration does this connection module support?
It supports 16 DI 24 V DC and 4 DIO/4DO 24 V DC/0.5A.
What connections does the module have?
It has 8xM12 connections, with the function description CM IO 8 x M12 D.
What are the module dimensions and approximate weight?
The dimensions are 45 mm wide, 130 mm high, and 39 mm deep. Weight, approx.: 305 g.
What information should accompany this line item for a quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
